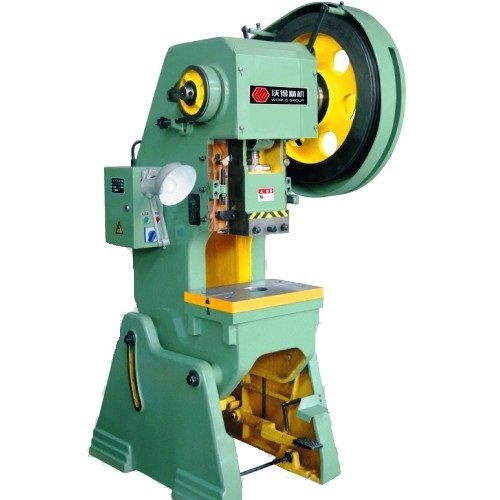

J23 Mechanical Punching Machine

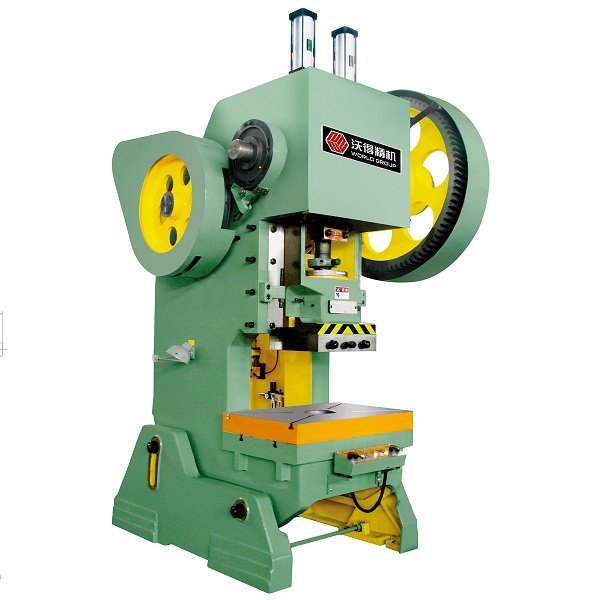

J23 mechanical punching machine, is a eccentric power press with capacity from 6.3 ton to 125 ton. The press adopts casting iron body, left to right located crankshaft with flywheel, mechanical type rigid clutch and brake, easy operation and suitable for metal stamping, hole punching and small parts hot forging process. 80 ton and bigger press adopt double pneumatic slide balance cylinders for more stable punching. Dry type pneumatic clutch is optional for this model.

Availability:

Quantity:



Inquire Add to Basket

Model:
J23
Brand:
WORLD
Code:
J23

SPECIFICATIONS

ITEMS		UNIT	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40
Capacity		KN	63	100	160	250	350	400
Nominal stroke		mm	2	2	2	2.5	3.5	6
Slide stroke length		mm	35	45	55	65	80	90
Stroke times per minute		spm	170	145	125	55	50	45
Max. Die set height		mm	150	180	220	270	290	320
Die shut height adjustment		mm	30	35	45	55	60	65
Throat depth		mm	110	130	160	200	220	250
Distance between uprights		mm	150	180	220	270	280	340
Slide bottom size	L-R	mm	140	170	200	250	250	300
Slide bottom size	F-B	mm	120	150	180	220	220	260
Stemhole size	Diameter	mm	30	30	40	40	40	50
Stemhole size	Depth	mm	55	55	60	60	60	70
Bolster size	L-R	mm	310	370	450	560	610	700
	F-B	mm	200	240	300	370	400	460
	Thickness	mm	30	35	40	50	60	65
Table hole diameter		mm	60	80	100	120	130	150
Max. inclinable angle		°	45	35	35	30	30	30
Bolster surface height		mm	750	730	750	800	815	850
Over all dimensions	L-R	mm	620	665	847	950	1058	1335
	F-B	mm	780	900	1150	1345	1460	1721
	Height	mm	1503	1658	1910	2130	2225	2488
Distance between foundation bolts	L-R	mm	314	394	450	600	650	750
Distance between foundation bolts	F-B	mm	530	610	780	920	1020	1060
Motor power		kw	0.75	1.1	1.5	2.2	4	5.5
Weight		kg	400	576	1085	1780	2650	3540
ITEMS		UNIT	J23-63	JB23-63	J23-80	J23-100	J23-125
Nominal capacity		KN	630	630	800	1000	1250
Nominal stroke		mm	6	7	7	7	8
Slide stroke length		mm	110	110	120	140	150
Stroke times per minute		times	50	40	38	38	38
Max. die set height		mm	360	390	440	480	500
Die height adjustment		mm	80	80	90	100	100
Throat depth		mm	260	310	350	380	390
Distance between uprights		mm	350	420	450	560	550
Slide bottom size	L-R	mm	300	400	430	540	540
Slide bottom size	F-B	mm	260	360	360	480	480
Stemhole size	Diameter	mm	50	50	60	60	60
Stemhole size	Depth	mm	70	70	75	75	75
Bolster size	L-R	mm	760	860	950	1080	1100
	F-B	mm	480	570	650	710	720
	Thickness	mm	80	80	100	120	130
Table hole diameter		mm	180	180	200	220	240
Max. inclinable angle		°	20	20	20	15	13
Bolster surface height		mm	810	850	850	850	860
Over all dimensions	L-R	mm	1350	1500	1715	1790	1790
	F-B	mm	1810	1958	2060	2404	2504
	Height	mm	2740	2868	3290	3625	3715
Distance between foundation bolts	L-R	mm	850	920	1010	1130	1110
Distance between foundation bolts	F-B	mm	1180	1300	1360	1550	1710
Motor power		kw	5.5	7.5	7.5	11	11
Weight		kg	4550	5500	7390	10800	12035
