80 Ton Gap Frame Metal Parts Stamping Press

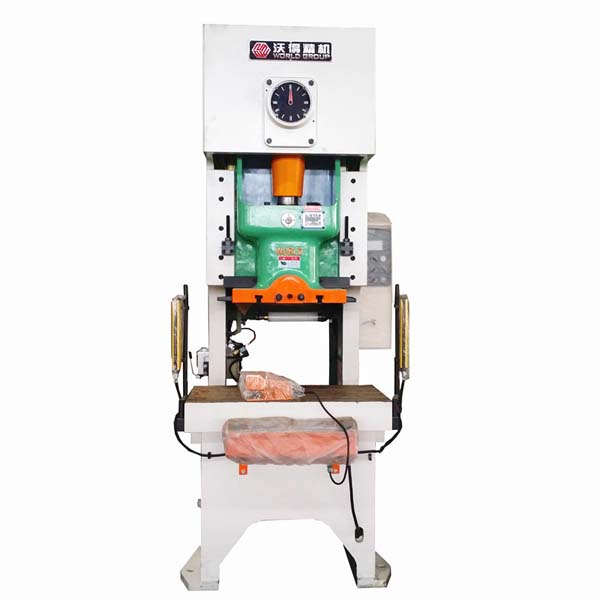

JH21-80, 80 ton gap frame stamping press, c frame steel plate welded body, annealing treatment to release the welding stress for higher rigidness, compact structure with cross located crankshaft, rectangular type 6 faces ram guide for higher precision, casting iron table and ram, grinding transmission gears, wet type combined pneumatic clutch and brake with famous brand solenoid valve. The press can work with servo NC feeder and uncoiler to act as an automatic stamping press line.
Availability:
Quantity:
  • JH21-80
  • WORLD

80 to gap frame press Standard configurations

-Wet type pneumatic clutch and brake

-Schneider or Omron PLC

-Hydraulic overload pump

-Toyooki or Taco solenoid valve

-Shock-absorbing mounting pads


Optional configurations:

-Light barriers

-Frequency inverter

-Servo NC feeder

-QDC system for die

-Uncoiler

-Straighter


80 ton stamping press specifications

ITEMCODEUNITJH21-80
Type


SH
Nominal CapacityPeKN800800
Slide Stroke LengthSmm160100
Slide StrokesFixed
spm6080
Variable(optional)
spm40-7555-95
Max. Die Shut HeightH2mm350320
Die Shut Height Adjustmenttmm80
Throat DepthC1mm310
Distance Between Uprightsd1mm610
Slide Bottom SizeFBbmm460
LRamm540
Shank Hole SizeDiameterdmm50
DepthImm70
Table SizeFBDmm600
LRCmm950
ThicknessH3mm140
Table Hole Diameter¢mm180
Overall DimensionsFBAmm1765
LRBmm1200
HeightHmm2725
Motor Power
KW7.5
Weight(approximate)
kg6450
