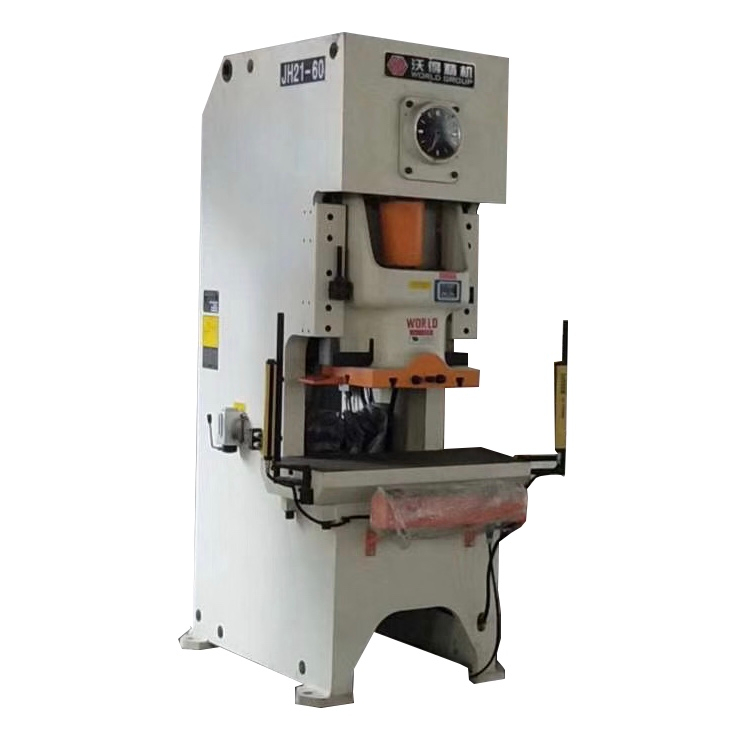

60 Ton Metal Parts Punching Press Machine

JH21-60, 60 ton punching press machine, c frame steel plate welded body, annealing treatment to release the welding stress for higher rigidness, compact structure with cross located crankshaft, rectangular type 6 faces ram guide for higher precision, casting iron table and ram, grinding transmission gears, wet type combined pneumatic clutch and brake with famous brand solenoid valve. The press can work with servo NC feeder and uncoiler to act as an automatic stamping press line.
Availability:
Quantity:
  • JH21-60
  • WORLD

Standard configurations of 60ton power press

-Wet type pneumatic clutch and brake

-Schneider or Omron PLC

-Hydraulic overload pump

-Toyooki or Taco solenoid valve

-Shock-absorbing mounting pads


Optional configurations:

-Light barriers

-Frequency inverter

-Servo NC feeder

-QDC system for die

-Uncoiler

-Straighter


60ton punching press specifications

ITEMCODEUNITJH21-60
Type


SH
Nominal CapacityPeKN600600
Slide Stroke LengthSmm14080
Slide StrokesFixed
spm7090
Variable(optional)
spm45-8560-110
Max. Die Shut HeightH2mm300330
Die Shut Height Adjustmenttmm70
Throat DepthC1mm270
Distance Between Uprightsd1mm560
Slide Bottom SizeFBbmm400
LRamm480
Shank Hole SizeDiameterdmm50
DepthImm70
Table SizeFBDmm520
LRCmm930
ThicknessH3mm130
Table Hole Diameter¢mm150
Overall DimensionsFBAmm1540
LRBmm1200
HeightHmm2570
Motor Power
KW5.5
Weight(approximate)
kg5150
