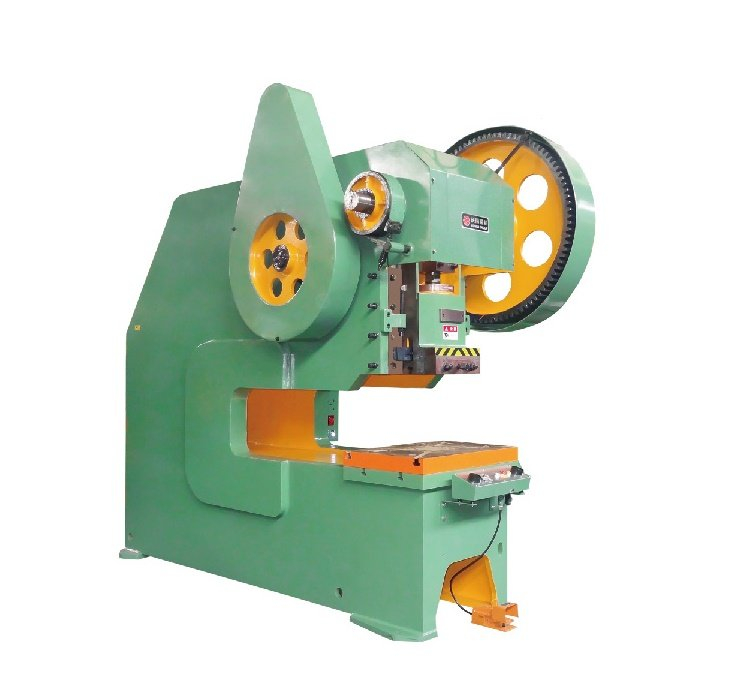

J21S Deep Throat Power Press, steel welded structure, deep throat (distance from slide center to the column) is suitable for big sheet stamping. This press is widely used for circle disc blanking with a zig-zag NC feeder system. The press is standard equipped with mechanical rigid clutch and flywheel. Dry type pneumatic clutch is optional. JH21 series C frame single crank press can be also customized to deep throat type press.
| Quantity: | |
|---|---|
| Item | Unit | J21S-10 | J21S-16 | J21S-25 | J21S-40 | J21S-63 | J21S-80 | J21S-100 | |
| Nominal capacity | KN | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | |
| Slide stroke length | mm | 45 | 55 | 65 | 90 | 110 | 120 | 140 | |
| Stroke speed | spm | 145 | 125 | 55 | 45 | 40 | 38 | 38 | |
| Max. die shut height | mm | 180 | 220 | 270 | 320 | 390 | 440 | 480 | |
| Die shut height adjustment | mm | 35 | 45 | 55 | 65 | 80 | 90 | 100 | |
| Throat depth | mm | 300 | 500 | 600 | 710 | 800 | 800 | 900 | |
| Columns distance | mm | 208 | 278 | 330 | 470 | 590 | 600 | 720 | |
| Slide bottom size | L-R | mm | 170 | 200 | 250 | 300 | 400 | 430 | 540 |
| F-B | mm | 150 | 180 | 220 | 260 | 360 | 360 | 480 | |
| Size of handle hole | Diameter | mm | 30 | 40 | 40 | 50 | 50 | 60 | 60 |
| Depth | mm | 55 | 60 | 60 | 70 | 70 | 75 | 75 | |
| Size of worktable | L-R | mm | 370 | 450 | 560 | 700 | 860 | 950 | 1080 |
| F-B | mm | 240 | 300 | 370 | 460 | 570 | 650 | 710 | |
| Thickness of worktable | mm | 35 | 40 | 50 | 65 | 80 | 100 | 120 | |
| Table hole diameter | mm | 80 | 100 | 120 | 150 | 180 | 200 | 220 | |
| Worktable surface to ground distance | mm | 730 | 750 | 800 | 835 | 860 | 850 | 850 | |
| Overall dimensions | F-B | mm | 835 | 1250 | 1835 | 2338 | 2748 | 2720 | 2815 |
| L-R | mm | 665 | 850 | 950 | 1335 | 1500 | 1715 | 1790 | |
| Height | mm | 1763 | 2030 | 2215 | 2660 | 2828 | 3290 | 3625 | |
| Power of electric motor | KW | 1.1 | 1.5 | 2.2 | 5.5 | 7.5 | 7.5 | 11 | |
| Weight(Approximate) | KG | 950 | 1750 | 2750 | 5900 | 7600 | 9800 | 10080 | |
