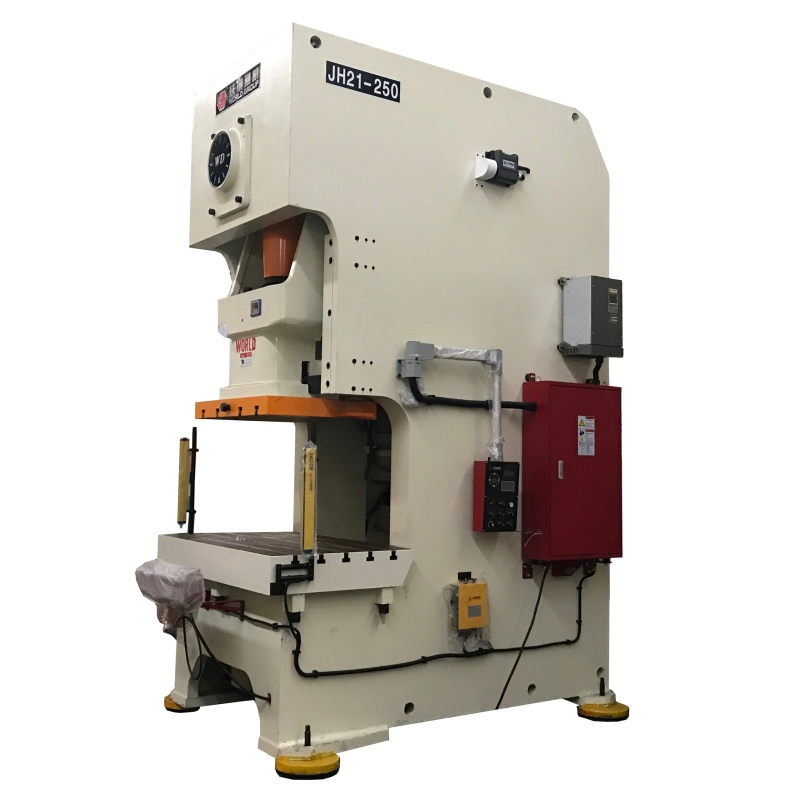

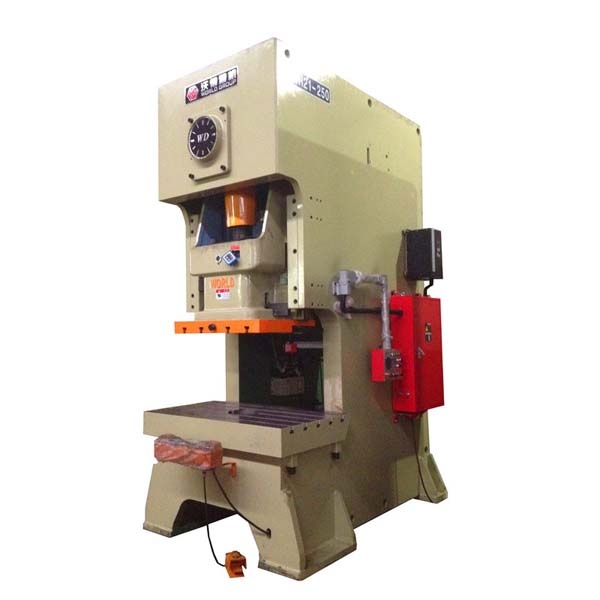

250 ton gap frame metal parts stamping press, cross located crankshaft with big gear on the back, oil-bath wet type combined pneumatic clutch and brake, Siemens motor, Panasonic PLC with Siemens or Schneider electric components, 6 pieces lengthened sintered bronzed gibs.
Main features and advantages:
1. Cross shaft design is compact with compare to conventional left to right crank shaft design which will give more rigidity and anti deflection for frame. Due to compact design it will take less space in your workshop.
2. Pneumatic clutch driven system gives far more safety in compare to conventional rolling key rresses. We used imported ROSS or TOYOOKI or TACO made dual solenoid valves for air supply to clutch.
3. Hydraulic overload safety system will provide safety against overload of press and saves your precious tools, jobs and press. As well as you can resume your press with just one reset button. In conventional press there is a shear plate safety which is brake while machine is getting overload and till you will not replace this plate your press will remain in brake down. Here you get less brake down, more productivity and less maintenance cost.
4. Easy to operate and user friendly electric control panel with touch screen HMI console indicates various alarms i.e. Nos. of strokes, counter, preset counter, photo safety guard alarm, overload alarm, lubrication alarm and many more…. You can’t imagine this facility with conventional rolling key power presses.
250 ton gap frame metal parts stamping press, cross located crankshaft with big gear on the back, oil-bath wet type combined pneumatic clutch and brake, Siemens motor, Panasonic PLC with Siemens or Schneider electric components, 6 pieces lengthened sintered bronzed gibs.
Main features and advantages:
1. Cross shaft design is compact with compare to conventional left to right crank shaft design which will give more rigidity and anti deflection for frame. Due to compact design it will take less space in your workshop.
2. Pneumatic clutch driven system gives far more safety in compare to conventional rolling key rresses. We used imported ROSS or TOYOOKI or TACO made dual solenoid valves for air supply to clutch.
3. Hydraulic overload safety system will provide safety against overload of press and saves your precious tools, jobs and press. As well as you can resume your press with just one reset button. In conventional press there is a shear plate safety which is brake while machine is getting overload and till you will not replace this plate your press will remain in brake down. Here you get less brake down, more productivity and less maintenance cost.
4. Easy to operate and user friendly electric control panel with touch screen HMI console indicates various alarms i.e. Nos. of strokes, counter, preset counter, photo safety guard alarm, overload alarm, lubrication alarm and many more…. You can’t imagine this facility with conventional rolling key power presses.
ITEM | CODE | UNIT | JH21-250 | |
Nominal Capacity | Pe | KN | 2500 | |
Slide Stroke Length | S | mm | 220 | |
Slide Strokes | Fixed | spm | 30 | |
Variable(optional) | spm | 20-35 | ||
Max. Die Shut Height | H2 | mm | 500 | |
Die Shut Height Adjustment | t | mm | 120 | |
Throat Depth | C1 | mm | 450 | |
Distance Between Uprights | d1 | mm | 980 | |
Slide Bottom Size | FB | b | mm | 700 |
LR | a | mm | 950 | |
Shank Hole Size | Diameter | d | mm | 70 |
Depth | I | mm | 130 | |
Table Size | FB | D | mm | 880 |
LR | C | mm | 1500 | |
Thickness | H3 | mm | 190 | |
Table Hole Diameter | ¢ | mm | 260 | |
Overall Dimensions | FB | A | mm | 2660 |
LR | B | mm | 1640 | |
Height | H | mm | 3850 | |
Motor Power | KW | 22 | ||
Weight(approximate) | kg | 23200 |
ITEM | CODE | UNIT | JH21-250 | |
Nominal Capacity | Pe | KN | 2500 | |
Slide Stroke Length | S | mm | 220 | |
Slide Strokes | Fixed | spm | 30 | |
Variable(optional) | spm | 20-35 | ||
Max. Die Shut Height | H2 | mm | 500 | |
Die Shut Height Adjustment | t | mm | 120 | |
Throat Depth | C1 | mm | 450 | |
Distance Between Uprights | d1 | mm | 980 | |
Slide Bottom Size | FB | b | mm | 700 |
LR | a | mm | 950 | |
Shank Hole Size | Diameter | d | mm | 70 |
Depth | I | mm | 130 | |
Table Size | FB | D | mm | 880 |
LR | C | mm | 1500 | |
Thickness | H3 | mm | 190 | |
Table Hole Diameter | ¢ | mm | 260 | |
Overall Dimensions | FB | A | mm | 2660 |
LR | B | mm | 1640 | |
Height | H | mm | 3850 | |
Motor Power | KW | 22 | ||
Weight(approximate) | kg | 23200 |
Q1: What is the warranty?
A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.
Q2: Where can we get the spare parts?
A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.
Q3: Is installation and training service available?
A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.
Q4: Is factory tour available?
A4: Yes, welcome to visit our factory. Please contact us for the visiting.
Q5: Is there any customer reference available?
A5: Yes, please contact our sales team.
Q1: What is the warranty?
A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.
Q2: Where can we get the spare parts?
A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.
Q3: Is installation and training service available?
A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.
Q4: Is factory tour available?
A4: Yes, welcome to visit our factory. Please contact us for the visiting.
Q5: Is there any customer reference available?
A5: Yes, please contact our sales team.
