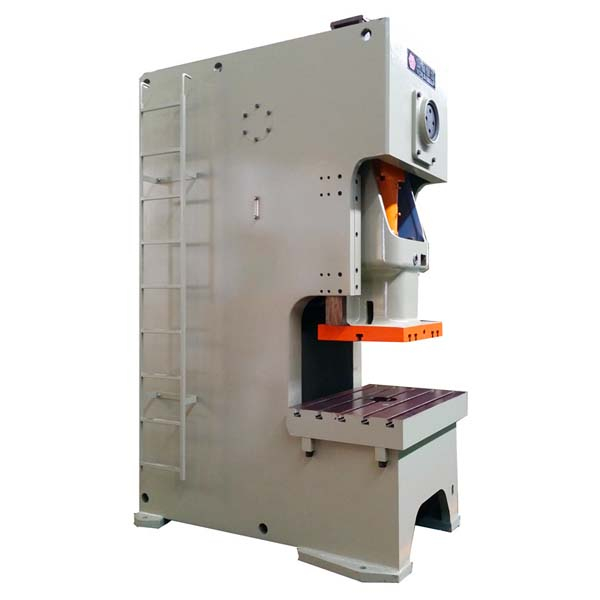

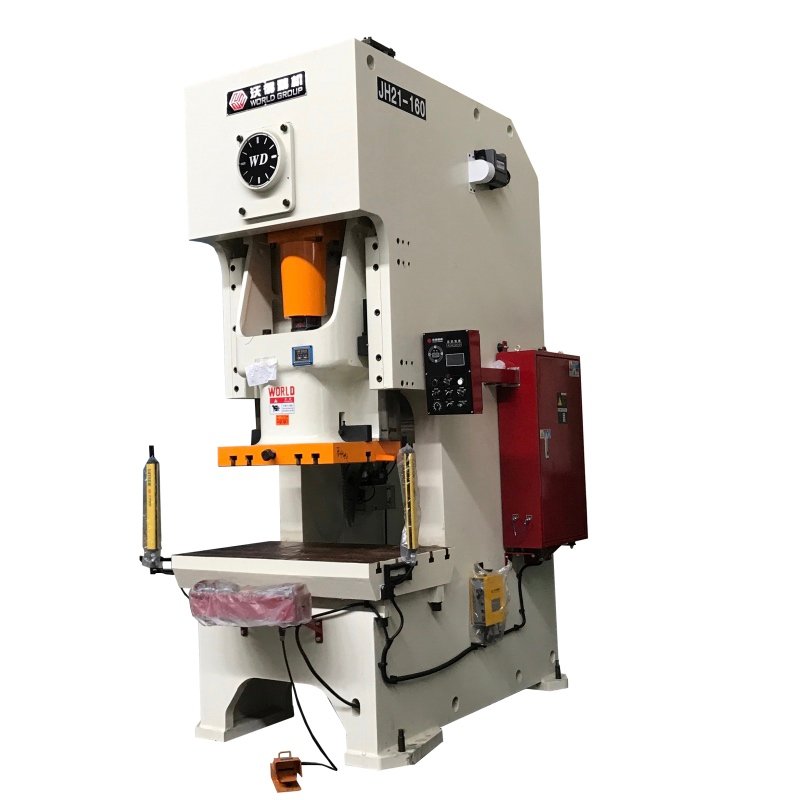

160 Ton gap type single crank pneumatic press

160 ton gap type single crank pneumatic press, steel plate welded body after temperature treatment for high rigidness and releasing the welding stress, casting iron ram and bolster, forged crankshaft and ram adjust ball screw, ram adjustable by flat motor fixed on the back. The 160 ton pneumatic press can work with coil sheet feeder unit for progressive die stamping.

Quantity:
  • JH21-160
  • WORLD

160 ton gap type single crank pneumatic press, steel plate welded body after temperature treatment for high rigidness and releasing the welding stress, casting iron ram and bolster, forged crankshaft and ram adjust ball screw, ram adjustable by flat motor fixed on the back. The 160 ton pneumatic press can work with coil sheet feeder unit for progressive die stamping.


Standard configurations:

-Omron PLC

-Siemense motor

-Ram adjusting brake motor

-Grease lubrication electric pump

-Working light

-Anti-vibration pads

-T stand or fixed type two-hand buttons control panel

-Showa hydraulic overload pump

-Ross or Toyooki solenoid valve


Options:

-Light barriers

-Frequency motor drive

-Die quick change system

-Piston type die cushion

-Uncoiling, straightening and feeding system

ITEMCODEUNITJH21-160
Nominal CapacityPeKN1600
Slide Stroke LengthSmm200
Slide StrokesFixed
spm45
Variable(optional)
spm30-55
Max. Die Shut HeightH2mm400
Die Shut Height Adjustmenttmm100
Throat DepthC1mm400
Distance Between Uprightsd1mm736
Slide Bottom SizeFBbmm580
LRamm700
Shank Hole SizeDiameterdmm70
DepthImm100
Table SizeFBDmm760
LRCmm1175
ThicknessH3mm165
Table Hole Diameter¢mm220
Overall DimensionsFBAmm2305
LRBmm1420
HeightHmm3215
Motor Power
KW15
Weight(approximate)
kg13600


Q1: What is the warranty?

A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.


Q2: Where can we get the spare parts?

A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.


Q3: Is installation and training service available?

A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.


Q4: Is factory tour available?

A4: Yes, welcome to visit our factory. Please contact us for the visiting.


Q5: Is there any customer reference available?

A5: Yes, please contact our sales team.
