25 Tonne C Frame Single Crank Punching Machine with Pneumatic Clutch

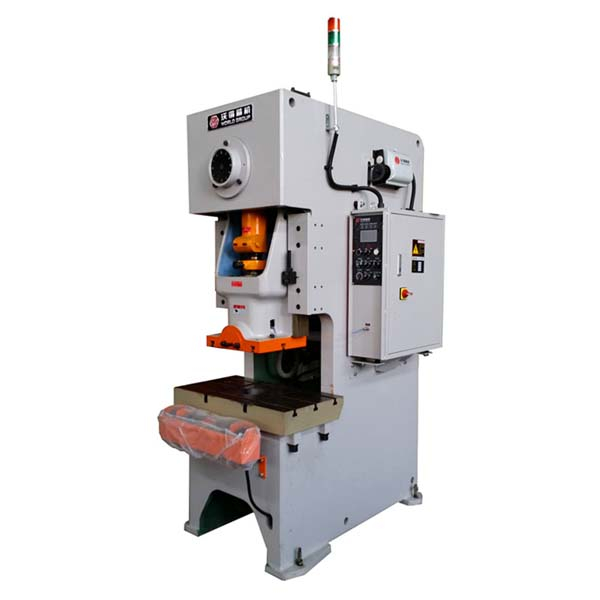

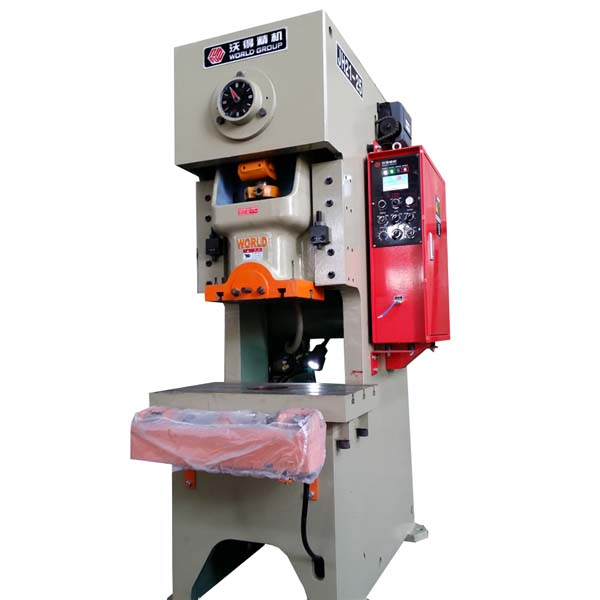

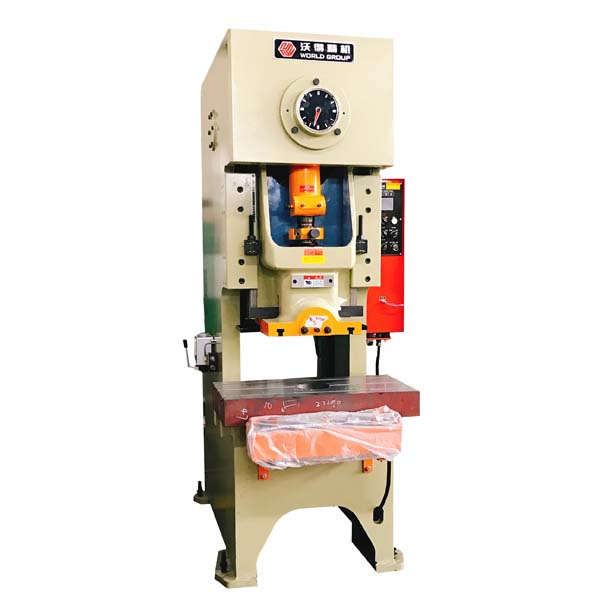

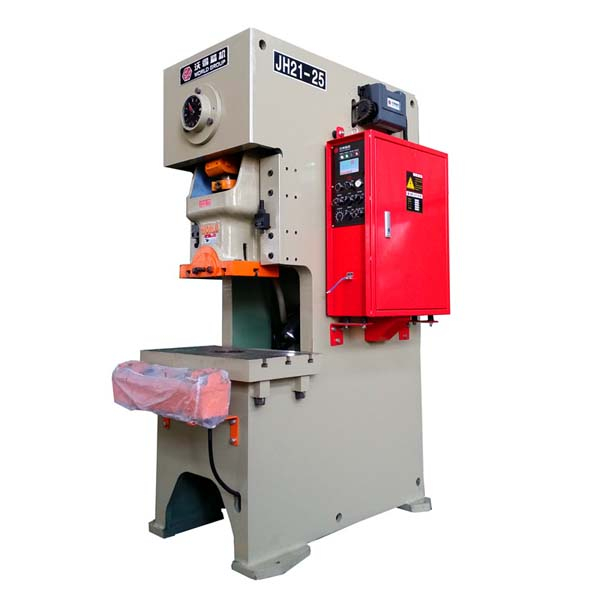

25 tonne C frame single crank punching machine with pneumatic clutch, is widely used for sheet metal parts punching and stamping. The small size press machine can work as inches, single stroke and continuous strokes. The press can stop at any points once press the emergency button on control panel for more safety of operators. CE certificated suitable for European and American markets.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH21-25
Brand:
WORLD

25 tonne C frame single crank punching machine with pneumatic clutch, is widely used for sheet metal parts punching and stamping. The small size press machine can work as inches, single stroke and continuous strokes. The press can stop at any points once press the emergency button on control panel for more safety of operators. CE certificated suitable for European and American markets.

Standard Configurations:

-Wet type cpmbined pneumatic clutch and brake

-PLC control

-Hydraulic overload protection system

-Automatic central grease lubrication system

-Working light

-HMI with touch sreen

-Two-hand buttons

-Foot pedal

-Anti-vibration pads

-Cam controller

-Slide and die weight balance cylinders

ITEM		CODE	UNIT	JH21-25
Nominal Capacity		Pe	KN	250
Slide Stroke Length		S	mm	80
Slide Strokes	Fixed		spm	100
Slide Strokes	Variable(optional)		spm	60-120
Max. Die Shut Height		H2	mm	250
Die Shut Height Adjustment		t	mm	50
Throat Depth		C1	mm	210
Distance Between Uprights		d1	mm	450
Slide Bottom Size	FB	b	mm	250
Slide Bottom Size	LR	a	mm	360
Shank Hole Size	Diameter	d	mm	40
Shank Hole Size	Depth	I	mm	65
Table Size	FB	D	mm	400
	LR	C	mm	720
	Thickness	H3	mm	80
Table Hole Diameter		¢	mm	150
Overall Dimensions	FB	A	mm	1500
	LR	B	mm	945
	Height	H	mm	2120
Motor Power			KW	3
Weight(approximate)			kg	2450

ITEM		CODE	UNIT	JH21-25
Nominal Capacity		Pe	KN	250
Slide Stroke Length		S	mm	80
Slide Strokes	Fixed		spm	100
Slide Strokes	Variable(optional)		spm	60-120
Max. Die Shut Height		H2	mm	250
Die Shut Height Adjustment		t	mm	50
Throat Depth		C1	mm	210
Distance Between Uprights		d1	mm	450
Slide Bottom Size	FB	b	mm	250
Slide Bottom Size	LR	a	mm	360
Shank Hole Size	Diameter	d	mm	40
Shank Hole Size	Depth	I	mm	65
Table Size	FB	D	mm	400
	LR	C	mm	720
	Thickness	H3	mm	80
Table Hole Diameter		¢	mm	150
Overall Dimensions	FB	A	mm	1500
	LR	B	mm	945
	Height	H	mm	2120
Motor Power			KW	3
Weight(approximate)			kg	2450
