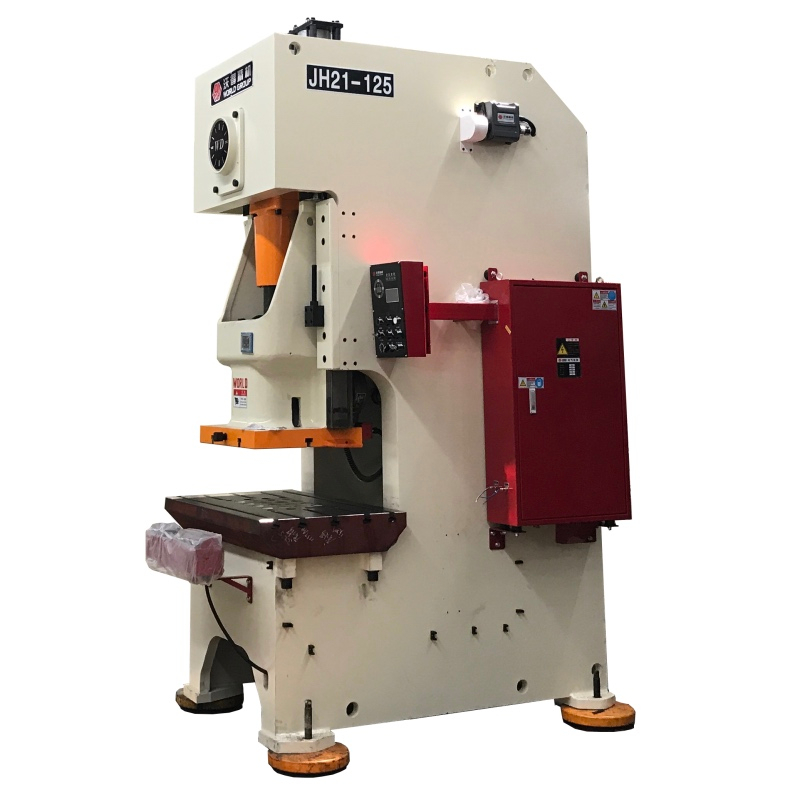

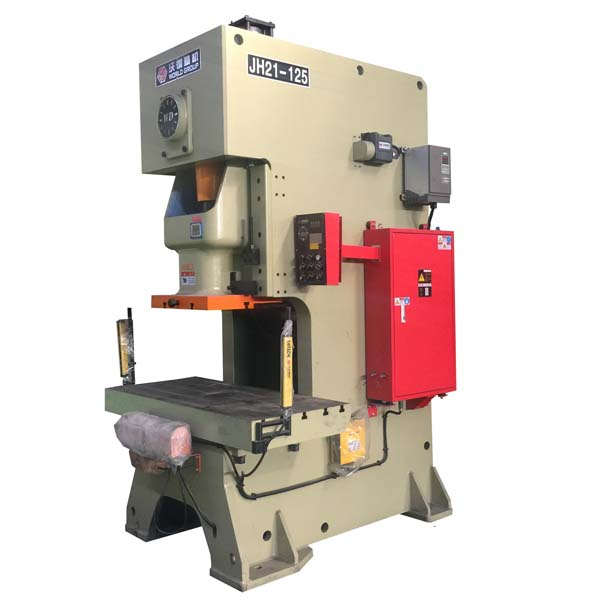

125 Ton C Frame Eccentric Punching Press with PLC Control

125 ton C frame eccentric punching press with PLC control system, 11kw Siemens motor, self-produced wet type pneumatic clutch with famous brand safety solenoid valve, stroke length 180mm and stroke speed 50spm. Two-hand-button control panel with press HMI and touch screen, screen can show the press working status, counter, pre-set counter and faults alarm. Lubrication frequency, TDC, cam angles for automatic accessories could be set through the HMI.

Quantity:
  • JH21-125
  • WORLD

125 ton C frame eccentric punching press with PLC control system, 11kw Siemens motor, self-produced wet type pneumatic clutch with famous brand safety solenoid valve, stroke length 180mm and stroke speed 50spm. Two-hand-button control panel with press HMI and touch screen, screen can show the press working status, counter, pre-set counter and faults alarm. Lubrication frequency, TDC, cam angles for automatic accessories could be set through the HMI.


Standard configurations:

-Schneider PLC

-Siemense motor

-Ram adjusting brake motor

-Grease lubrication electric pump

-Working light

-Anti-vibration pads

-T stand or fixed type two-hand buttons control panel

-Showa hydraulic overload pump

-Ross or Toyooki solenoid valve


Options:

-Light barriers

-Frequency motor drive

-Die quick change system

-Piston type die cushion

-Uncoiling, straightening and feeding system

ITEMCODEUNITJH21-125
Nominal CapacityPeKN1250
Slide Stroke LengthSmm180
Slide StrokesFixed
spm50
Variable(optional)
spm35-65
Max. Die Shut HeightH2mm350
Die Shut Height Adjustmenttmm90
Throat DepthC1mm350
Distance Between Uprightsd1mm670
Slide Bottom SizeFBbmm520
LRamm620
Shank Hole SizeDiameterdmm70
DepthImm90
Table SizeFBDmm680
LRCmm1100
ThicknessH3mm155
Table Hole Diameter¢mm200
Overall DimensionsFBAmm2040
LRBmm1320
HeightHmm3035
Motor Power
KW11
Weight(approximate)
kg9550


Q1: What is the warranty?

A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.


Q2: Where can we get the spare parts?

A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.


Q3: Is installation and training service available?

A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.


Q4: Is factory tour available?

A4: Yes, welcome to visit our factory. Please contact us for the visiting.


Q5: Is there any customer reference available?

A5: Yes, please contact our sales team.
