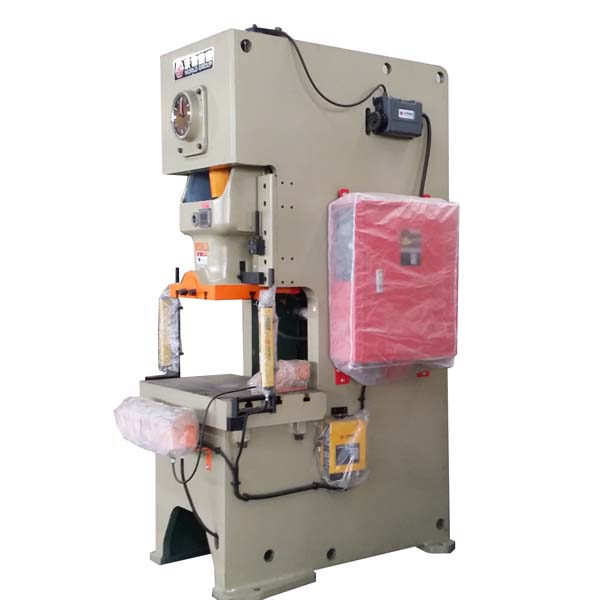

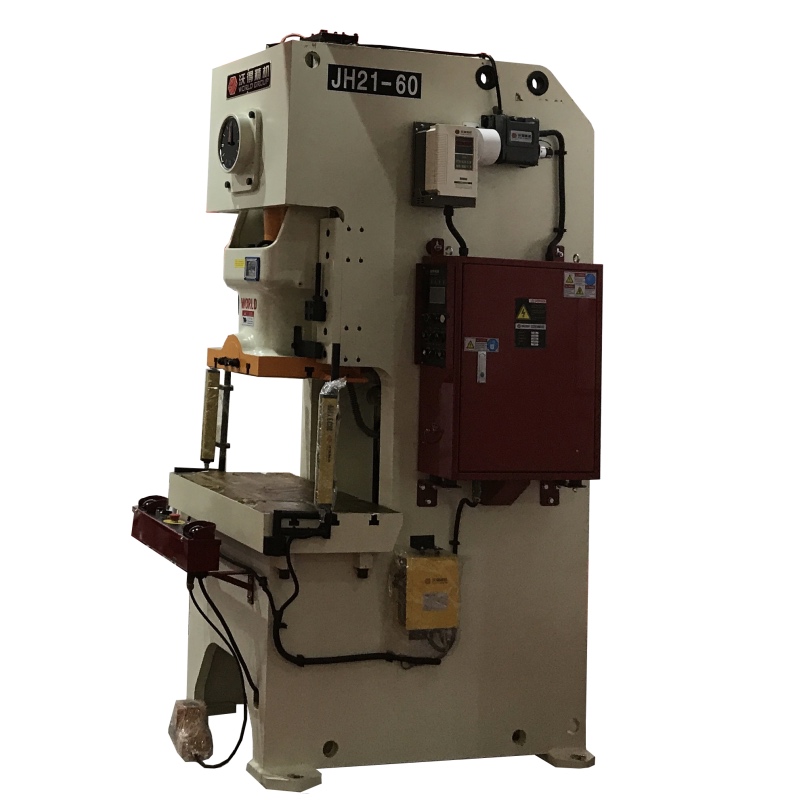

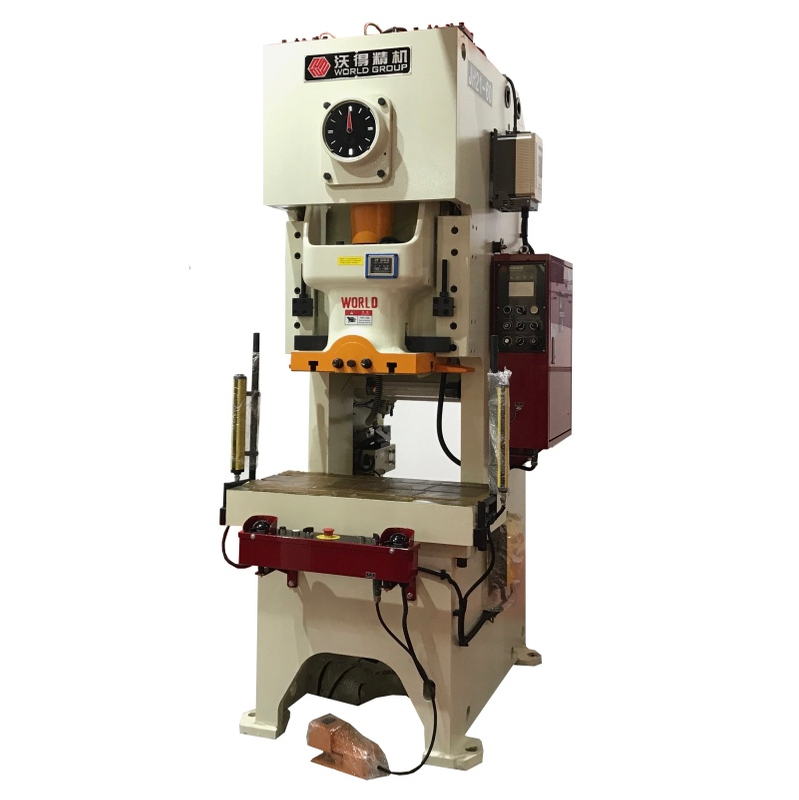

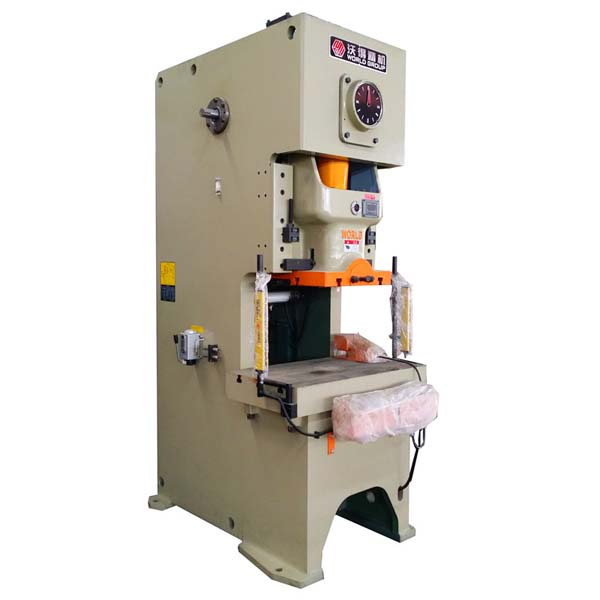

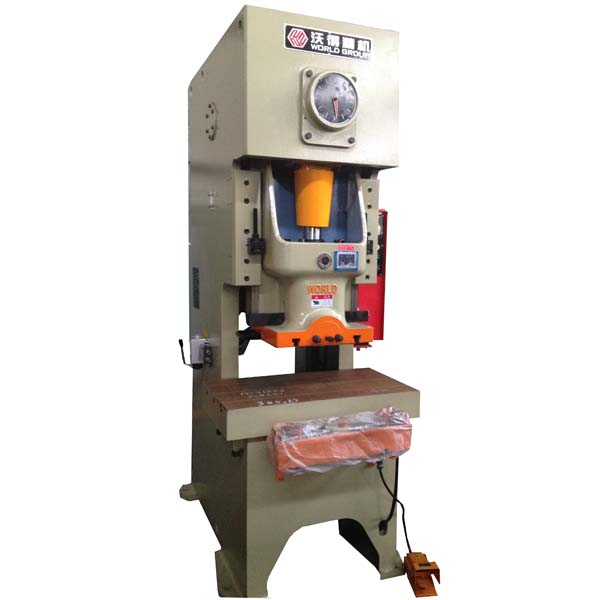

60 Tonne C Type Pneumatic Power Press Machine

60 tonne c type pneumatic power press machine, cross located single crankshaft, bronze con-rod bush, con-rod with ball screw, motorized ram adjustment, oil bath wet type clutch and brake, PLC central control with cam controllers, automatic grease lubrication, HMI with touch screen to set and monitor the press working status. The 60 tonne power press machine can work with servo NC feeding machine for automatic stamping process.

Quantity:
  • JH21-60
  • WORLD

60 tonne c type pneumatic power press machine, cross located single crankshaft, bronze con-rod bush, con-rod with ball screw, motorized ram adjustment, oil bath wet type clutch and brake, PLC central control with cam controllers, automatic grease lubrication, HMI with touch screen to set and monitor the press working status. The 60 tonne power press machine can work with servo NC feeding machine for automatic stamping process.


Standard configurations:

-Schneider PLC

-Siemense motor

-Ram adjusting brake motor

-Grease lubrication electric pump

-Working light

-Anti-vibration pads

-T stand or fixed type two-hand buttons control panel

-Showa hydraulic overload pump

-Ross or Toyooki solenoid valve


Options:

-Light barriers

-Frequency motor drive

-Die quick change system

-Piston type die cushion

-Uncoiling, straightening and feeding system

ITEMCODEUNITJH21-60
Nominal CapacityPeKN600
Slide Stroke LengthSmm140
Slide StrokesFixed
spm70
Variable(optional)
spm45-85
Max. Die Shut HeightH2mm300
Die Shut Height Adjustmenttmm70
Throat DepthC1mm270
Distance Between Uprightsd1mm560
Slide Bottom SizeFBbmm400
LRamm480
Shank Hole SizeDiameterdmm50
DepthImm70
Table SizeFBDmm520
LRCmm930
ThicknessH3mm130
Table Hole Diameter¢mm150
Overall DimensionsFBAmm1540
LRBmm1200
HeightHmm2570
Motor Power
KW5.5
Weight(approximate)
kg5150


Q1: What is the warranty?

A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.


Q2: Where can we get the spare parts?

A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.


Q3: Is installation and training service available?

A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.


Q4: Is factory tour available?

A4: Yes, welcome to visit our factory. Please contact us for the visiting.


Q5: Is there any customer reference available?

A5: Yes, please contact our sales team.
