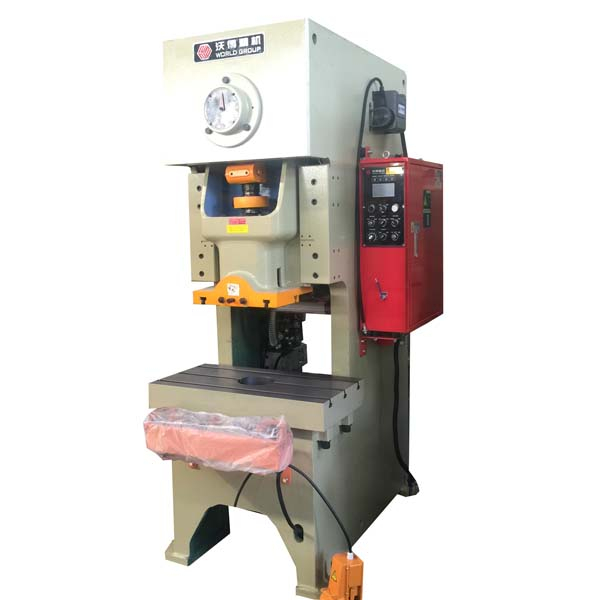

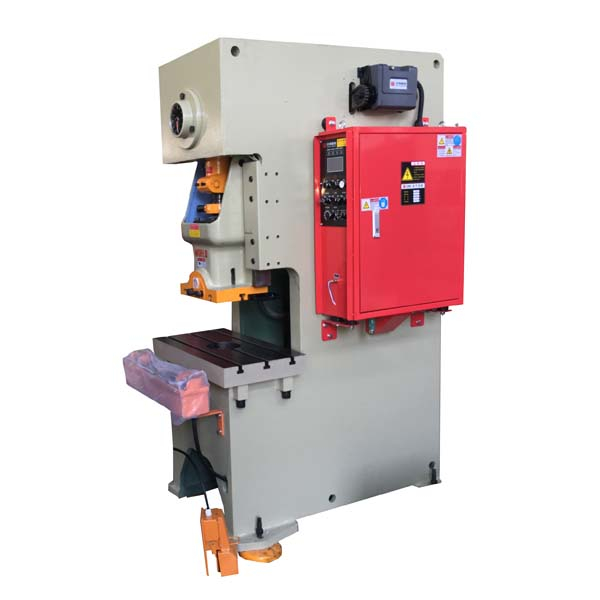

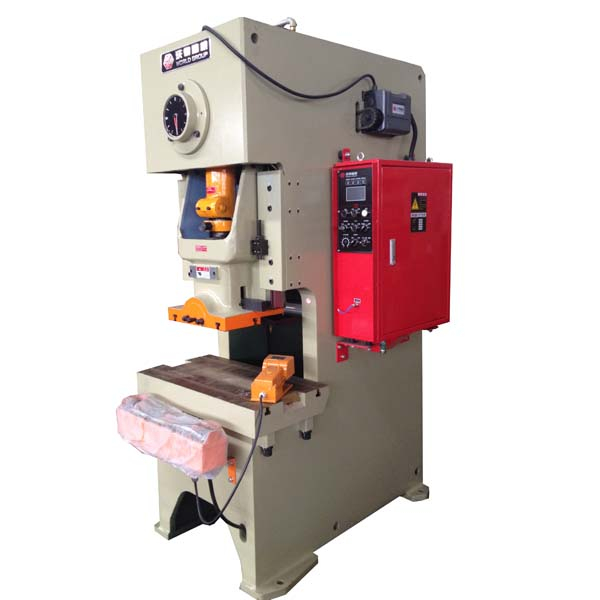

45 Ton C Type Crank Press with PLC Control

45 ton c type crank press, model No. JH21-45, c frame steel plate welded body, annealing treatment to release the welding stress for higher rigidness, compact structure with cross located crankshaft, rectangular type 6 faces ram guide for higher precision, casting iron table and ram, grinding transmission gears, wet type combined pneumatic clutch and brake with famous brand solenoid valve. The press can work with servo NC feeder and uncoiler to act as an automatic stamping press line.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH21-45
Brand:
WORLD

45 ton c type crank press, model No. JH21-45, c frame steel plate welded body, annealing treatment to release the welding stress for higher rigidness, compact structure with cross located crankshaft, rectangular type 6 faces ram guide for higher precision, casting iron table and ram, grinding transmission gears, wet type combined pneumatic clutch and brake with famous brand solenoid valve. The press can work with servo NC feeder and uncoiler to act as an automatic stamping press line.

Standard configurations:

-Wet type clutch

-Siemense motor

-Shneider PLC

-Showa hydraulic overload pump

-Toyooki solenoid valve

-Shock-absorbing mounting pads

Optional configurations:

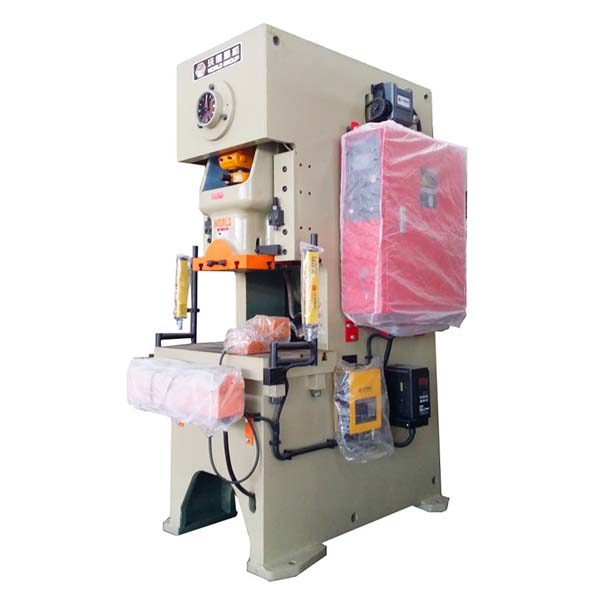

-Light barriers

-Frequency inverter

-Servo NC feeder

-QDC system for die

-Uncoiler

-Straighter

ITEM		CODE	UNIT	JH21-45
Nominal Capacity		Pe	KN	450
Slide Stroke Length		S	mm	120
Slide Strokes	Fixed		spm	80
Slide Strokes	Variable(optional)		spm	50-95
Max. Die Shut Height		H2	mm	270
Die Shut Height Adjustment		t	mm	60
Throat Depth		C1	mm	225
Distance Between Uprights		d1	mm	515
Slide Bottom Size	FB	b	mm	340
Slide Bottom Size	LR	a	mm	410
Shank Hole Size	Diameter	d	mm	50
Shank Hole Size	Depth	I	mm	60
Table Size	FB	D	mm	440
	LR	C	mm	825
	Thickness	H3	mm	110
Table Hole Diameter		¢	mm	150
Overall Dimensions	FB	A	mm	1585
	LR	B	mm	1075
	Height	H	mm	2390
Motor Power			KW	5.5
Weight(approximate)			kg	3550

ITEM		CODE	UNIT	JH21-45
Nominal Capacity		Pe	KN	450
Slide Stroke Length		S	mm	120
Slide Strokes	Fixed		spm	80
Slide Strokes	Variable(optional)		spm	50-95
Max. Die Shut Height		H2	mm	270
Die Shut Height Adjustment		t	mm	60
Throat Depth		C1	mm	225
Distance Between Uprights		d1	mm	515
Slide Bottom Size	FB	b	mm	340
Slide Bottom Size	LR	a	mm	410
Shank Hole Size	Diameter	d	mm	50
Shank Hole Size	Depth	I	mm	60
Table Size	FB	D	mm	440
	LR	C	mm	825
	Thickness	H3	mm	110
Table Hole Diameter		¢	mm	150
Overall Dimensions	FB	A	mm	1585
	LR	B	mm	1075
	Height	H	mm	2390
Motor Power			KW	5.5
Weight(approximate)			kg	3550
