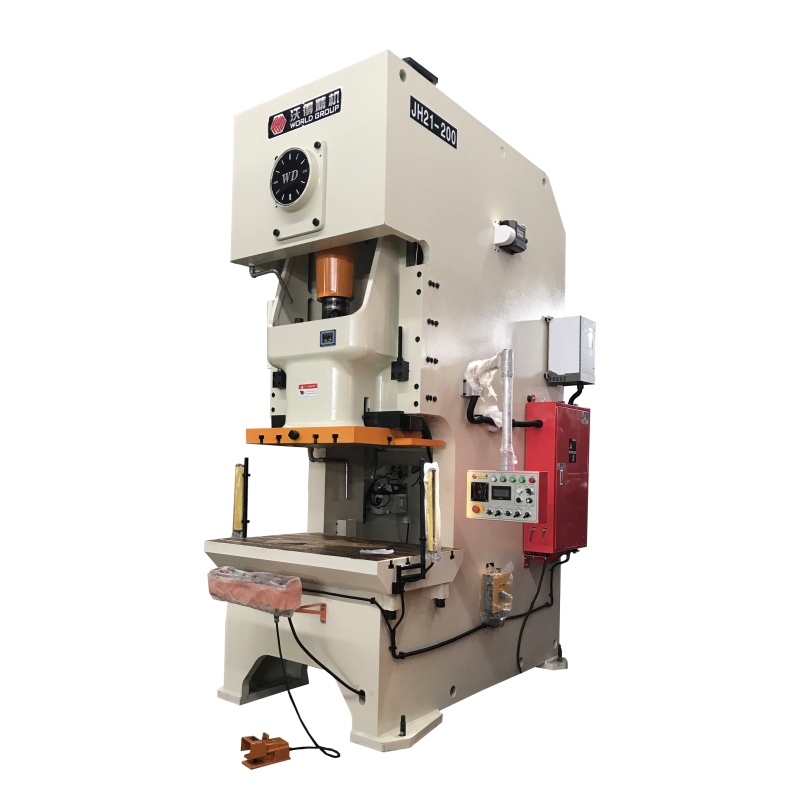

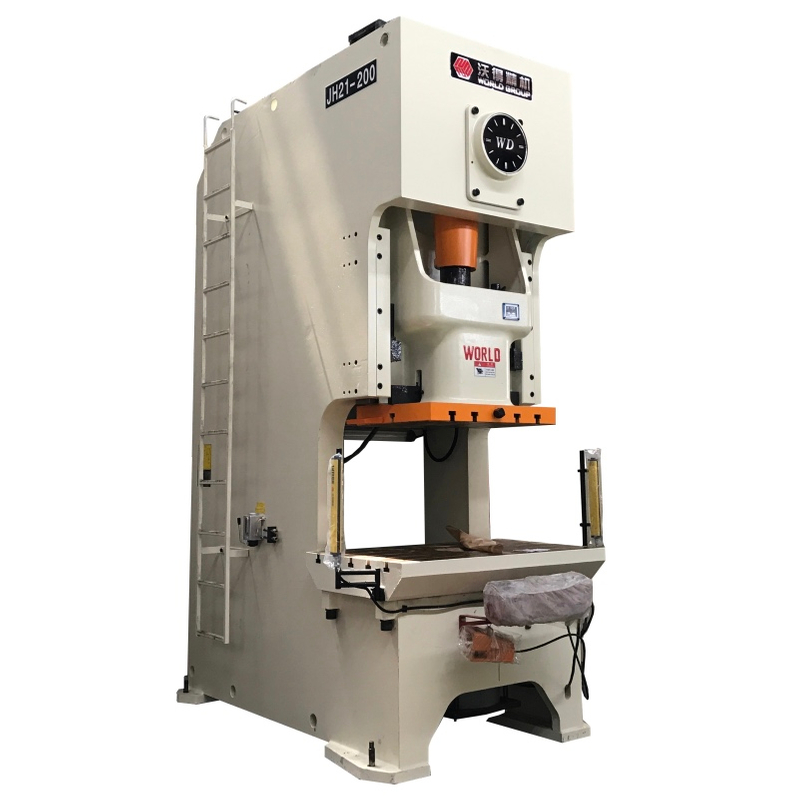

200 Tonne JH21-200 C Frame Power Press

200 tonne JH21-200 C frame power press is suitable for metal parts stamping, piercing, bending, cutting and forming process, which is widely used for home appliance, electric product, auto parts, furniture metal parts and motorcycle parts industry areas. Compact dimensions, safety electric control system conform to CE standard, easy control HMI and panel. The 200ton press can work as inches stroke for testing the die, single stroke for single punch and continuous strokes for automatic stamping.

Quantity:
  • JH21-200
  • WORLD

200 tonne JH21-200 C frame power press is suitable for metal parts stamping, piercing, bending, cutting and forming process, which is widely used for home appliance, electric product, auto parts, furniture metal parts and motorcycle parts industry areas. Compact dimensions, safety electric control system conform to CE standard, easy control HMI and panel. The 200ton press can work as inches stroke for testing the die, single stroke for single punch and continuous strokes for automatic stamping.


Standard configurations:

-Panasonic PLC

-Siemense motor

-Ram adjusting brake motor

-Grease lubrication electric pump

-Working light

-Anti-vibration pads

-T stand or fixed type two-hand buttons control panel

-Showa hydraulic overload pump

-Ross or Toyooki solenoid valve


Options:

-Light barriers

-Frequency motor drive

-Die quick change system

-Piston type die cushion

-Uncoiling, straightening and feeding system

ITEMCODEUNITJH21-200
Nominal CapacityPeKN2000
Slide Stroke LengthSmm220
Slide StrokesFixed
spm45
Variable(optional)
spm30-55
Max. Die Shut HeightH2mm450
Die Shut Height Adjustmenttmm110
Throat DepthC1mm430
Distance Between Uprightsd1mm910
Slide Bottom SizeFBbmm650
LRamm880
Shank Hole SizeDiameterdmm70
DepthImm100
Table SizeFBDmm840
LRCmm1390
ThicknessH3mm180
Table Hole Diameter¢mm240
Overall DimensionsFBAmm2600
LRBmm1540
HeightHmm3800
Motor Power
KW18.5
Weight(approximate)
kg19200


Q1: What is the warranty?

A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.


Q2: Where can we get the spare parts?

A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.


Q3: Is installation and training service available?

A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.


Q4: Is factory tour available?

A4: Yes, welcome to visit our factory. Please contact us for the visiting.


Q5: Is there any customer reference available?

A5: Yes, please contact our sales team.
