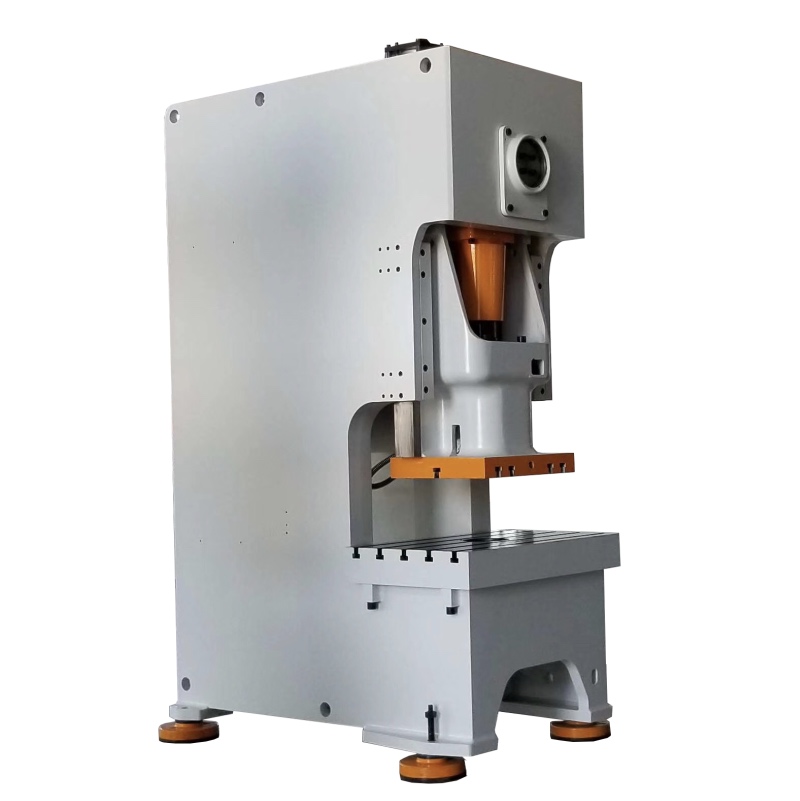

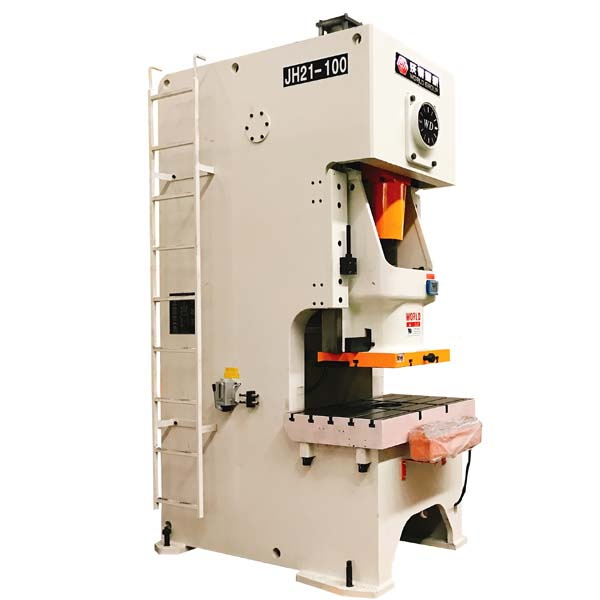

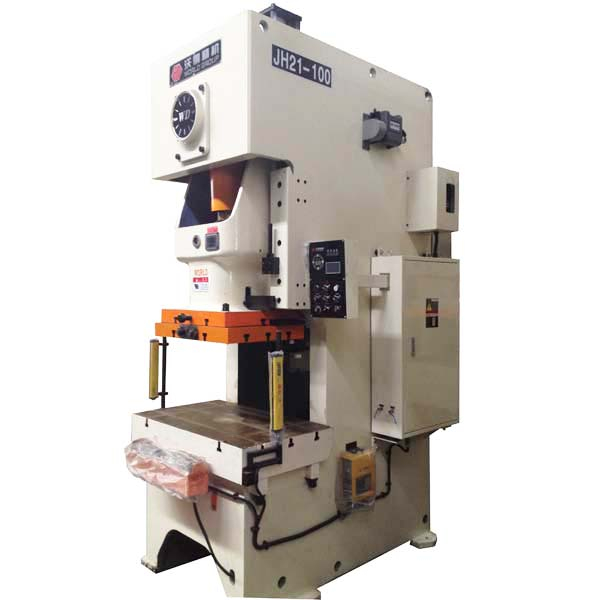

100 Ton C Type Press for Metal Parts Punching And Stamping

100 ton c type press for metal parts punching and stamping, high quality wet type pneumatic clutch with lower noise and cleaner surface for sheet stamping parts. Ram is adjustable by brake motor, ram guide six faces with lengthened bronze guides on the press body for higher precision. This c type press can work with automatic coil feeding straightening machine.

Quantity:
  • JH21-100
  • WORLD

100 ton c type press for metal parts punching and stamping, high quality wet type pneumatic clutch with lower noise and cleaner surface for sheet stamping parts. Ram is adjustable by brake motor, ram guide six faces with lengthened bronze guides on the press body for higher precision. This c type press can work with automatic coil feeding straightening machine.


Standard configurations:

-Schneider PLC

-Siemense motor

-Ram adjusting brake motor

-Grease lubrication electric pump

-Working light

-Anti-vibration pads

-T stand or fixed type two-hand buttons control panel

-Showa hydraulic overload pump

-Ross or Toyooki solenoid valve


Options:

-Light barriers

-Frequency motor drive

-Die quick change system

-Piston type die cushion

-Uncoiling, straightening and feeding system

ITEMCODEUNITJH21-100
Nominal CapacityPeKN1000
Slide Stroke LengthSmm160
Slide StrokesFixed
spm55
Variable(optional)
spm35-65
Max. Die Shut HeightH2mm335
Die Shut Height Adjustmenttmm90
Throat DepthC1mm330
Distance Between Uprightsd1mm670
Slide Bottom SizeFBbmm520
LRamm620
Shank Hole SizeDiameterdmm70
DepthImm90
Table SizeFBDmm640
LRCmm1060
ThicknessH3mm145
Table Hole Diameter¢mm180
Overall DimensionsFBAmm2000
LRBmm1300
HeightHmm3010
Motor Power
KW7.5
Weight(approximate)
kg8650


Q1: What is the warranty?

A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.


Q2: Where can we get the spare parts?

A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.


Q3: Is installation and training service available?

A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.


Q4: Is factory tour available?

A4: Yes, welcome to visit our factory. Please contact us for the visiting.


Q5: Is there any customer reference available?

A5: Yes, please contact our sales team.
