JH21-80
WORLD

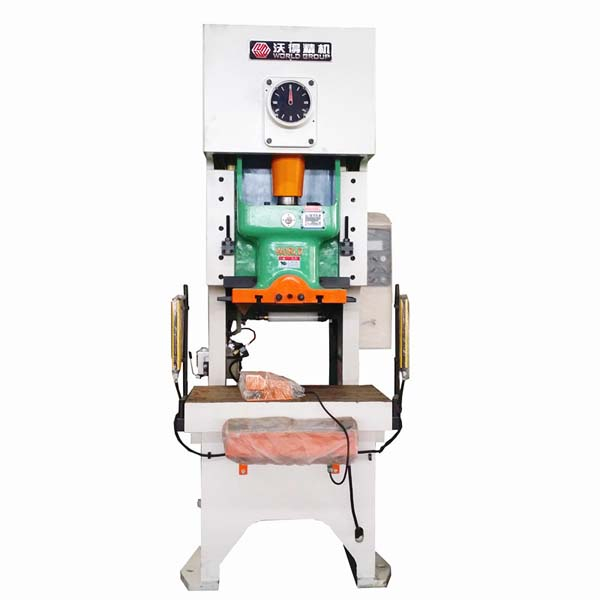

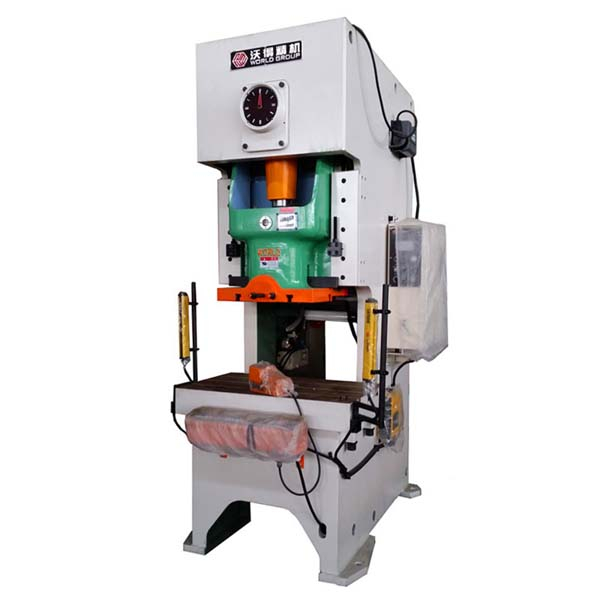

80 ton gap press with pneumatic clutch, steel plate welded body with annealing treatment, plc control, is suitable for sheet metal punching and stamping process. It is an automatic type press with working modes as inches for testing the die, single stroke and continuous strokes. The stroke length, stroke speeds, die shut height and table size are customizable.
Standard configurations:
-Schneider PLC
-Siemense motor
-Ram adjusting brake motor
-Grease lubrication electric pump
-Working light
-Anti-vibration pads
-T stand or fixed type two-hand buttons control panel
-Showa hydraulic overload pump
-Ross or Toyooki solenoid valve
Options:
-Light barriers
-Frequency motor drive
-Die quick change system
-Piston type die cushion
-Uncoiling, straightening and feeding system
80 ton gap press with pneumatic clutch, steel plate welded body with annealing treatment, plc control, is suitable for sheet metal punching and stamping process. It is an automatic type press with working modes as inches for testing the die, single stroke and continuous strokes. The stroke length, stroke speeds, die shut height and table size are customizable.
Standard configurations:
-Schneider PLC
-Siemense motor
-Ram adjusting brake motor
-Grease lubrication electric pump
-Working light
-Anti-vibration pads
-T stand or fixed type two-hand buttons control panel
-Showa hydraulic overload pump
-Ross or Toyooki solenoid valve
Options:
-Light barriers
-Frequency motor drive
-Die quick change system
-Piston type die cushion
-Uncoiling, straightening and feeding system
ITEM | CODE | UNIT | JH21-80 | |
Nominal Capacity | Pe | KN | 800 | |
Slide Stroke Length | S | mm | 160 | |
Slide Strokes | Fixed | spm | 60 | |
Variable(optional) | spm | 40-75 | ||
Max. Die Shut Height | H2 | mm | 320 | |
Die Shut Height Adjustment | t | mm | 80 | |
Throat Depth | C1 | mm | 310 | |
Distance Between Uprights | d1 | mm | 610 | |
Slide Bottom Size | FB | b | mm | 460 |
LR | a | mm | 540 | |
Shank Hole Size | Diameter | d | mm | 50 |
Depth | I | mm | 65 | |
Table Size | FB | D | mm | 600 |
LR | C | mm | 950 | |
Thickness | H3 | mm | 140 | |
Table Hole Diameter | ¢ | mm | 180 | |
Overall Dimensions | FB | A | mm | 1765 |
LR | B | mm | 1200 | |
Height | H | mm | 2725 | |
Motor Power | KW | 7.5 | ||
Weight(approximate) | kg | 6450 |
ITEM | CODE | UNIT | JH21-80 | |
Nominal Capacity | Pe | KN | 800 | |
Slide Stroke Length | S | mm | 160 | |
Slide Strokes | Fixed | spm | 60 | |
Variable(optional) | spm | 40-75 | ||
Max. Die Shut Height | H2 | mm | 320 | |
Die Shut Height Adjustment | t | mm | 80 | |
Throat Depth | C1 | mm | 310 | |
Distance Between Uprights | d1 | mm | 610 | |
Slide Bottom Size | FB | b | mm | 460 |
LR | a | mm | 540 | |
Shank Hole Size | Diameter | d | mm | 50 |
Depth | I | mm | 65 | |
Table Size | FB | D | mm | 600 |
LR | C | mm | 950 | |
Thickness | H3 | mm | 140 | |
Table Hole Diameter | ¢ | mm | 180 | |
Overall Dimensions | FB | A | mm | 1765 |
LR | B | mm | 1200 | |
Height | H | mm | 2725 | |
Motor Power | KW | 7.5 | ||
Weight(approximate) | kg | 6450 |
Q1: What is the warranty?
A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.
Q2: Where can we get the spare parts?
A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.
Q3: Is installation and training service available?
A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.
Q4: Is factory tour available?
A4: Yes, welcome to visit our factory. Please contact us for the visiting.
Q5: Is there any customer reference available?
A5: Yes, please contact our sales team.
Q1: What is the warranty?
A1: We can provide one year warranty for the press, 2 years warranty for the crankshaft, 3 years warranty for the wet clutch.
Q2: Where can we get the spare parts?
A2: All the electric parts are internation famous brand and customer can buy the electric parts at local market. World produce most of the press parts in our own factory and we can provide all parts from here. Urgent parts could be shipped by courier service.
Q3: Is installation and training service available?
A3: Yes we can provide installation and training service. And we will provide English version operation and maintenance manual with the press. Customer can also send their operators to our factory for training.
Q4: Is factory tour available?
A4: Yes, welcome to visit our factory. Please contact us for the visiting.
Q5: Is there any customer reference available?
A5: Yes, please contact our sales team.
