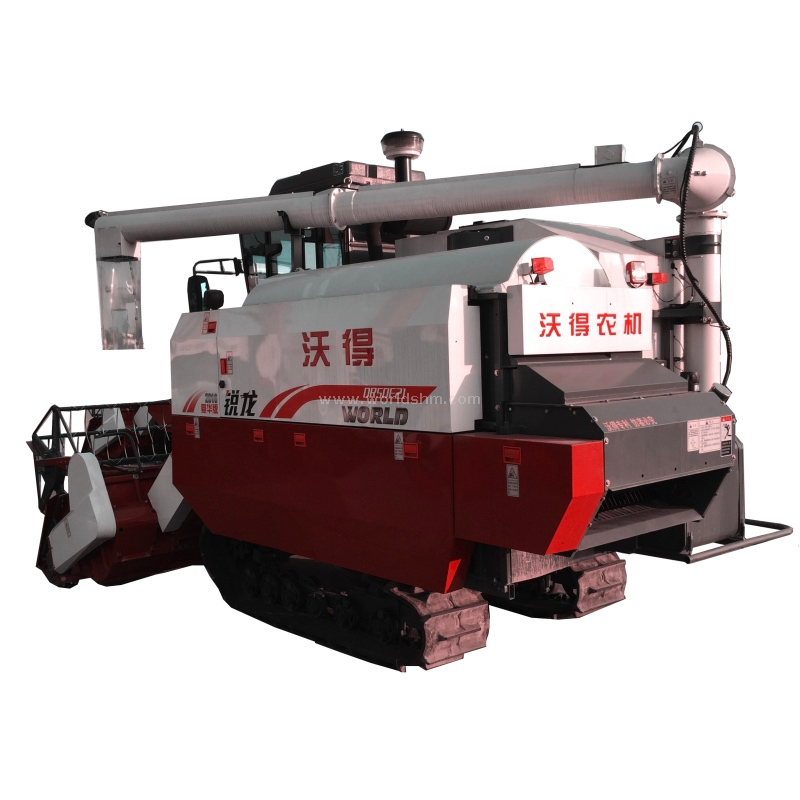

4LZ-6.0P 102HP FMWORLD Harvesting Machine

AXIAL FLOW TYPE THRESHER

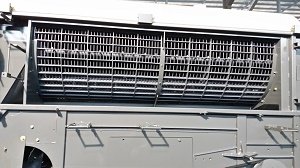

Axial flow type (I type) thresher is advanced technology for combine harvester. axial flow type thresher.jpg

The grain is feeding through the front impeller to the thresher. The moving

direction of grain with straw is a line along with the thresher. This design makes

better threshing performance with higher efficiency and better cleaning performance.

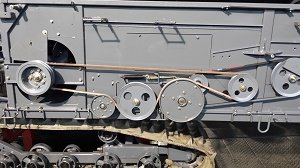

4LZ-6.0P harvester adopts high quality belts and chain for all the transmission belt and chain transmission.jpg

system. More reliable and longer working life.

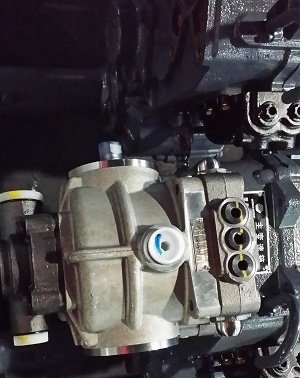

The gearbox is produced by World with advanced technology and high quality gearbox with HST.jpg

bearings and gears. Hydraulic HST is standard equipped for easy shift changing

and lower fuel consumption.

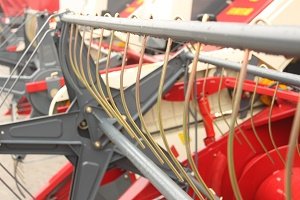

Longer spring teeth are better for laid rice harvesting. longer reel teeth.jpg

Can pick up the crops when knife is 8cm distance to the ground.

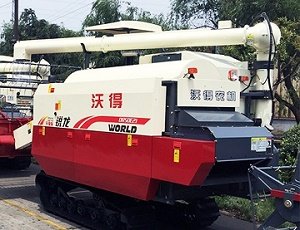

The 360 degree rotary grain discharge pipe is easy for discharge the grain rotary grain discharge pipe.jpg

from the tank. This design makes less operators during the harvester is

harvesting. And higher efficiency till the grain tank is full and then the

harvester can drive to discharge the grain.

Feeding Capacity (kg/s)			6
Work Dimension LWH (mm)			510028902700
Weight (kg)			3100
Cabin/Sun shade			Sunshade
Engine Part	Model No.		Changchai 4G33TC
	Power/Speed (hp/rpm)		102/2600
	Fuel		Light Diesel Oil
	Fuel Capacity (L)		120
	Fuel Consumption(kg/hm2)		12～30
	Start		Motor Starter
Gear Box	ZKB85 made by WORLD Factory, stronger power
HST	45CC HST Imported from south Korea.
Walking Part	Rubber Track	Length of Ground Contact (mm)	1700
		Center Distance (mm)	1150
		Size(mm)	5509056
		Average Contact Pressure (kpa)	≤20Kpa
	Min. Ground Clearance (mm)		340
	Gear Shifts		Variable Sun-transmission 3 Shifts
	Walk Speed (Km/Hour)		Low:0～1.85 Medium:0～6.5 High:0～9
	Theoretical Work Speed (Km/Hour)		0.9-6.5
Harvesting Unit	Grain Lifter		Divider
	Working Width (mm)		2200
	Reel Bat	Dia. × Length (mm)	∮900×2028
		Gearshift Method	Constant Speed
		Adjusting Means	Hydraulic
	Stubble Height[Lift] (mm)		25cm or above
Threshing &Harvesting Unit	Threshing Mode		Axial Flow Type, Bullet Rotor
	Threshing Rotor	Type of Threshing	Beat Bar
		Dia. ×Length (mm)	∮620*2050
		Rotating Speed(rpm)	662/732
	Fan	Diameter	∮400
	Separating Type		Vibrating Sieves +Air Blow
	Area of Sieves (Lowe and Upper Sieves) (m²)		1.645
Grain-unload Unit	Grain Tank Capacity		1000kg
	Grain Discharging Type		360 Rotary Discharging Pipe
Alarm Units			Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger
Work Efficiency(hm2/h)			0.6-0.9
Crops			Rice, Wheat
Total Loss			Less than 2.5%
Breakage			Less than 1.5%
Impurity			Less than 1.5%
