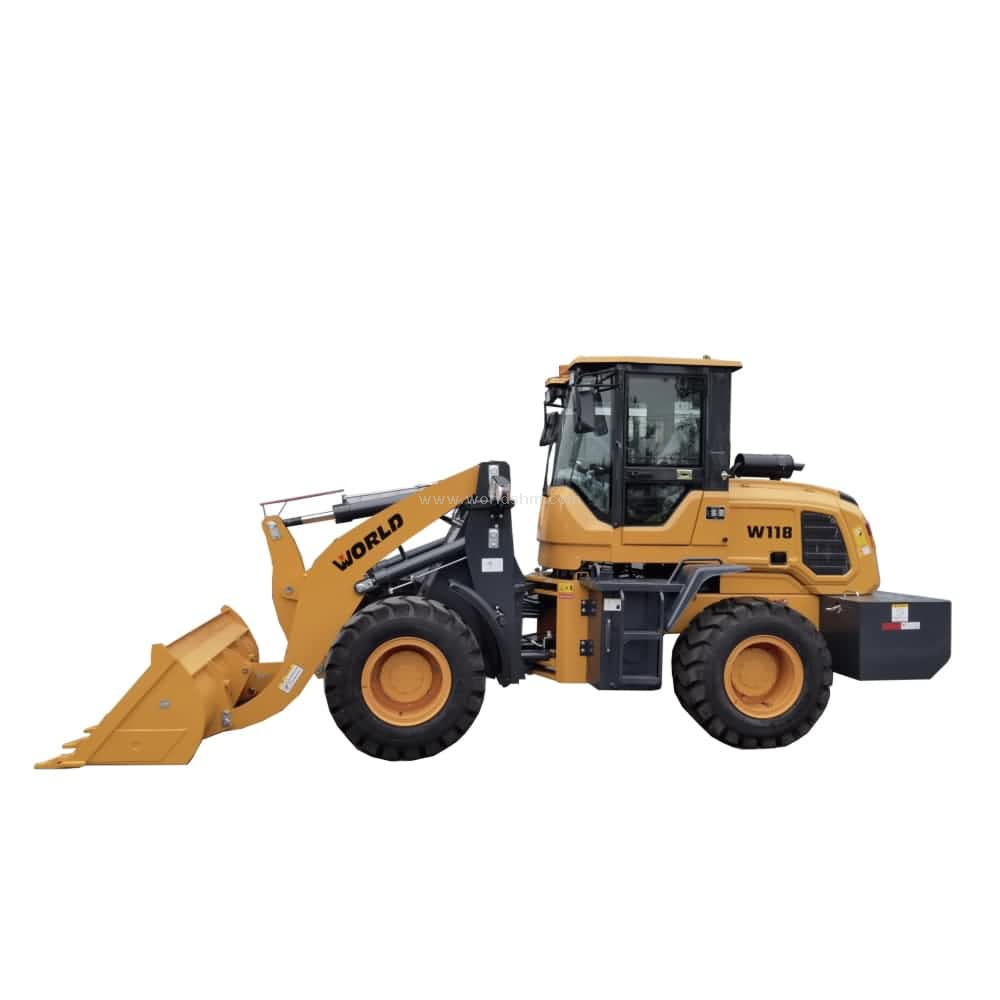

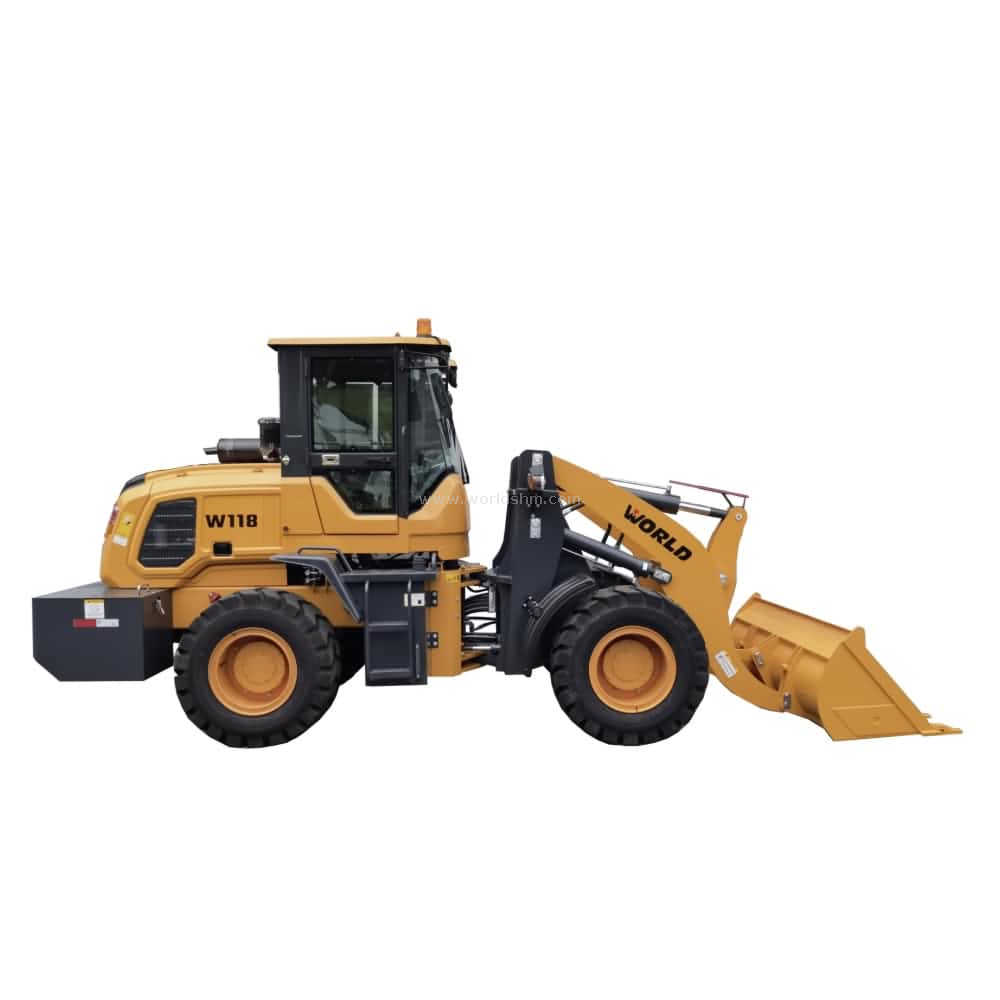

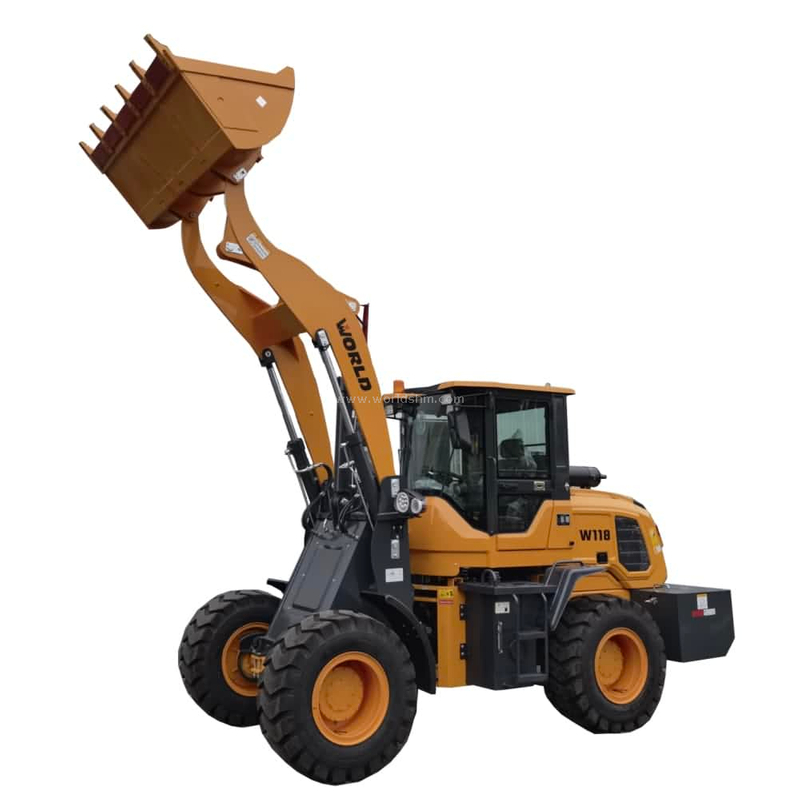

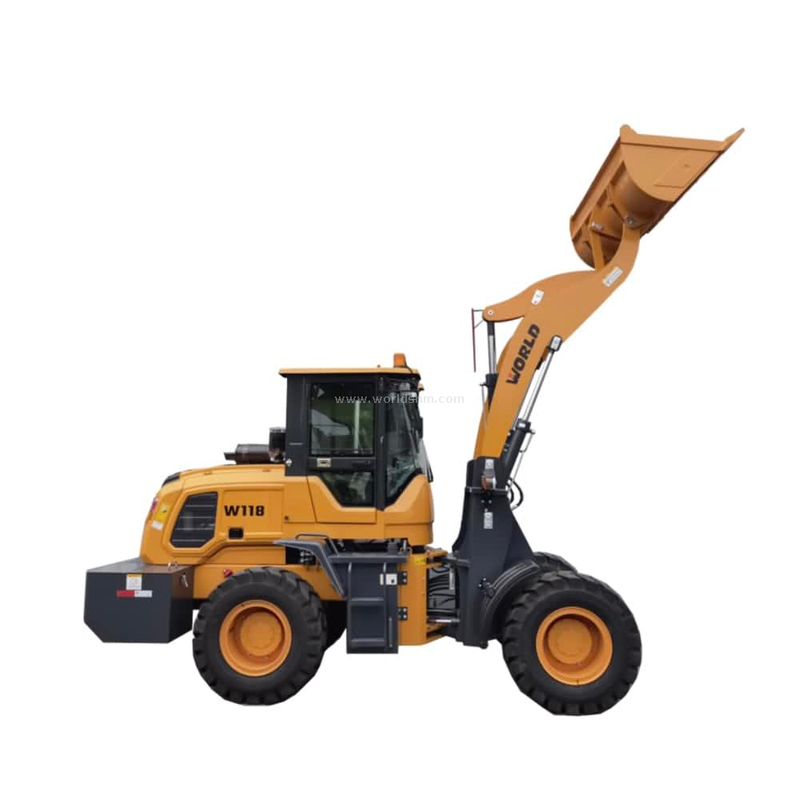

Articulated 1.8ton Mini Loader with Front Bucket

1.8ton mini loader is suitable for farming and light duty construction working. The loader is standard equipped with 76kw Chinese engine and air conditioned cabin. Strong axles with dry type caliper brake system and hub reducer. Optional accessories as coal bucket, long arm, quick change hitch, pallet fork and grapple are all available.
Availability:
Quantity:
  • W118
  • WORLD
  • W118
Overall Performance/ModelsW118
General Machine PerformanceOperating weightKGS4750
Lengthmm6200
Widthmm2000
Heightmm2780
Wheel basemm2400
Wheel trackmm1580
Tire size
16/70-20
Max.driving speedkm/h30
Bucket PerformanceRated loadKGS1800
Bucket capacity range0.7-1.2
Standard bucket capacity0.8
Bucket widthmm2000
Dumping heightmm3500
Dumping reachmm900
Max. raising heightmm5000
Transmission PerformanceTransmission type
Automatic
Control lever
1
Engine Performancemodel
YUNNEI 4102 Turbo
PowerKW76
Number of cylinder
4
Control type
mechanical
Drive bridge tyre
big wheel hub reduction
