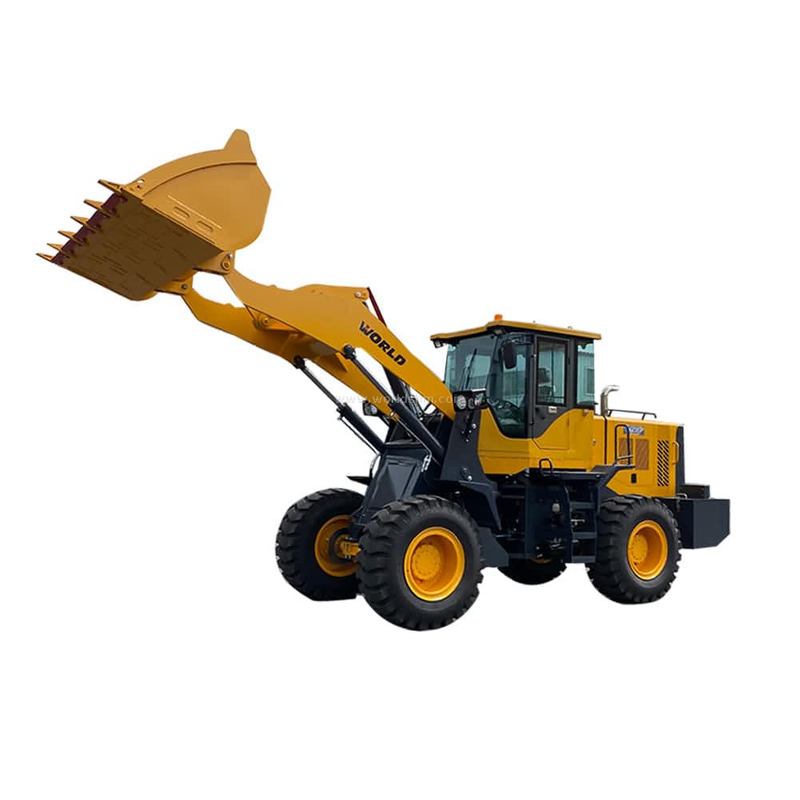

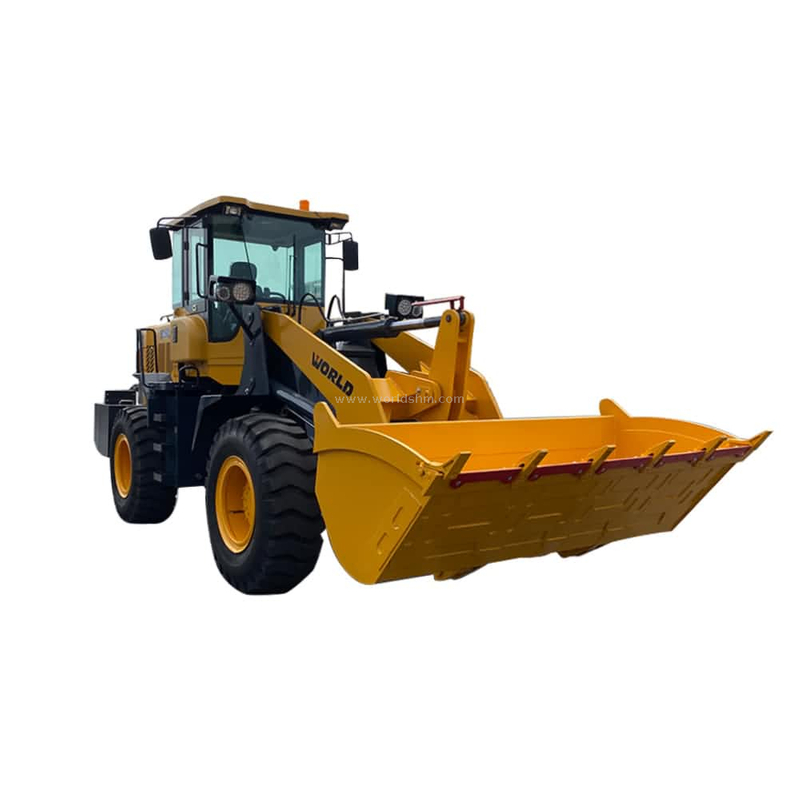

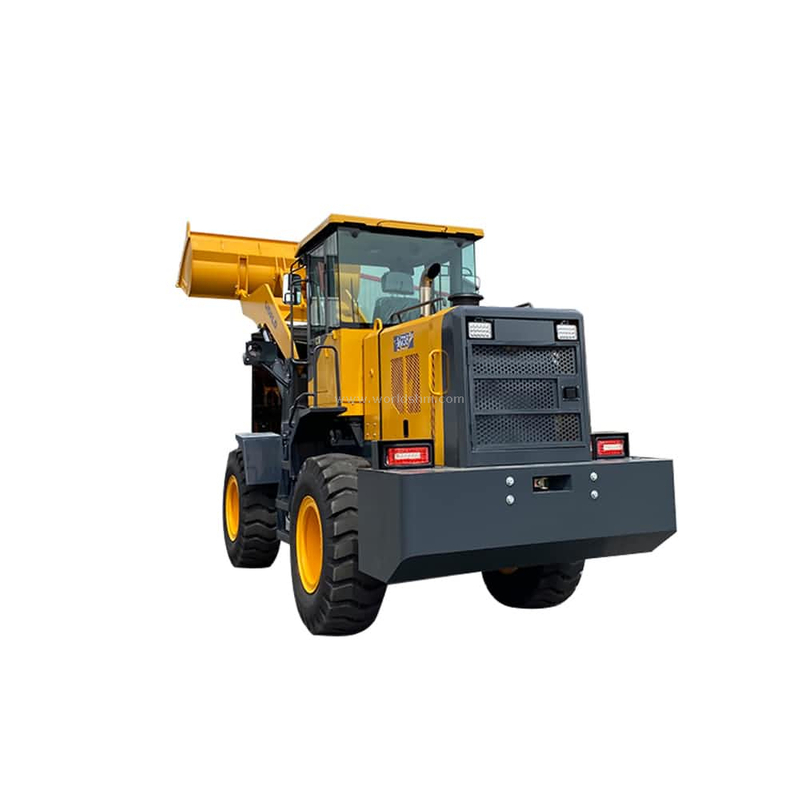

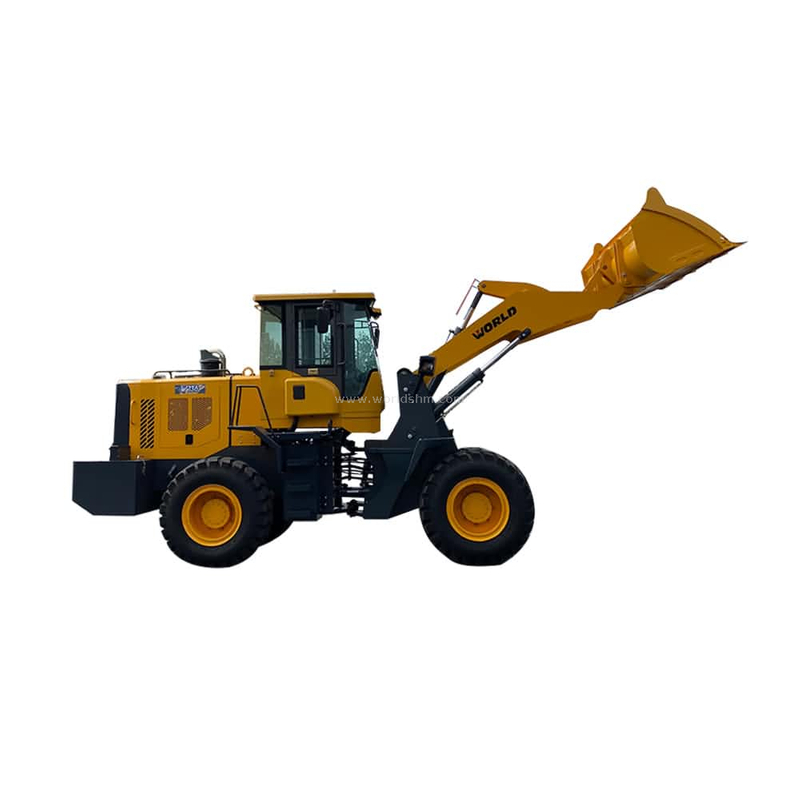

3 Ton Wheel Loader with 1.8 Cbm Bucket

W136 wheel loader is a 3ton rated load loader with the bucket capacity from 1.8cbm to 2.2cbm. The extended distance between frames articulation offers good structure rigidity and larger maintenance space. Self designed and produced structure fames and working equipment all use best steel material with good strength and tensile property. Computer finite element analysis ensures the design is reasonable. High quality welding and shot blasting treatment eliminate the welding stress effectively. Best hydraulic systems and transmission systems provide high efficiency and the total working cycle time is less than 10.3 second.

Quantity:
  • W136
  • WORLD
  • W136

POWERFUL TRANSMISSION SYSTEM

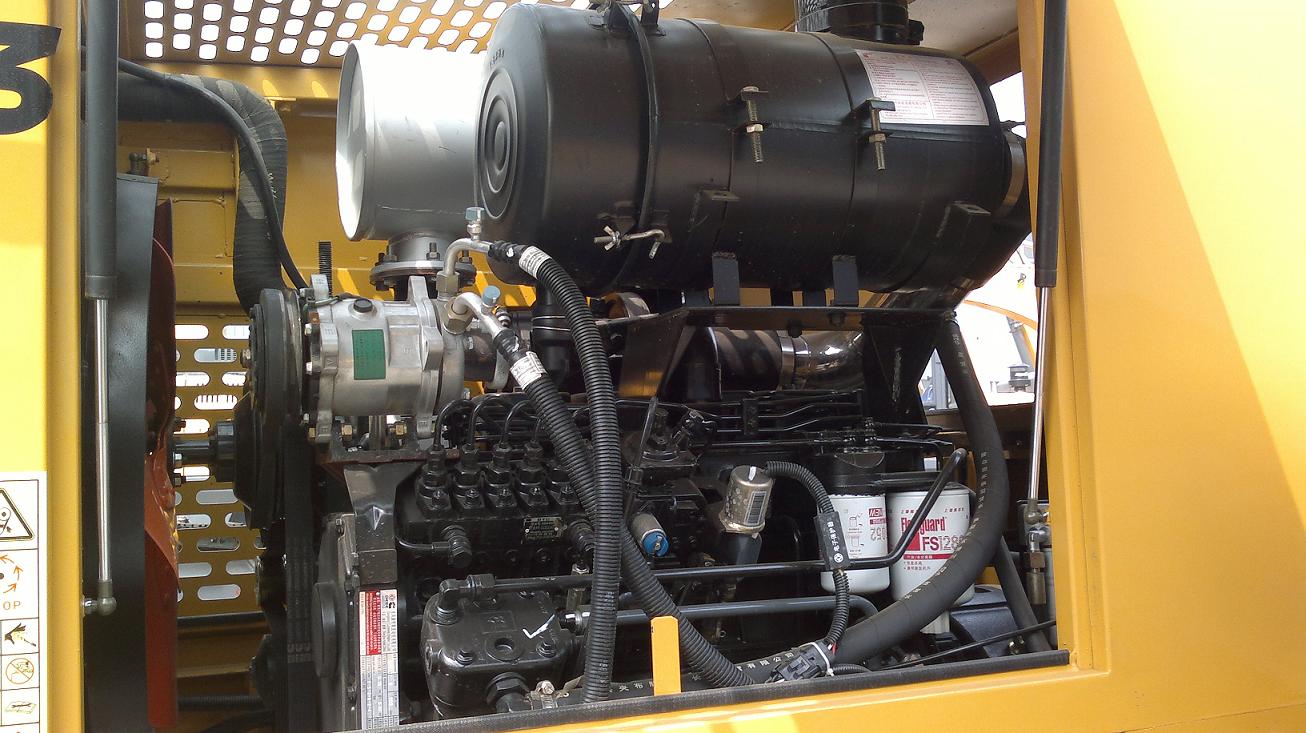

W136 loader standard equips with 97 kw Cummins 6BT5.9-C130 enginecummins engine for loader.jpg

and ZL30 planet type gearbox. Weichai Deutz engine is optional. ZL30

planet type gearbox with hydraulic torque converter has 2 forward and 1

reverse speeds. Hydraulic power delivers smoother shift. The torque

converter is single stage, four elements with double turbines. The maximum

permissible temperature can be 120 degree. This transmission system provides

strong power, smooth operation and low cost for maintenance.



AXLE WITH DRY TYPE BRAKE SYSTEM

The axles are designed to handle extreme applications resulting in loader axle.jpg

reliable performance and extended life. The front axle is rigidly mounted

to the frame in order to withstand internal torque loads and still maintain

support for the wheel loader. The rear axle can oscillate to ±13 degrees

helping to ensure all four wheels stay on the ground providing stability

even in the roughest terrain. The main reducer uses spiral bevel gears

with differential. The hub reducer uses planet gears. The air over oil active

brake is a dry type caliper brake with brake discs and brake pads which is

easy for maintenance and better for radiating.


STRONG WELDING STRUCTURES

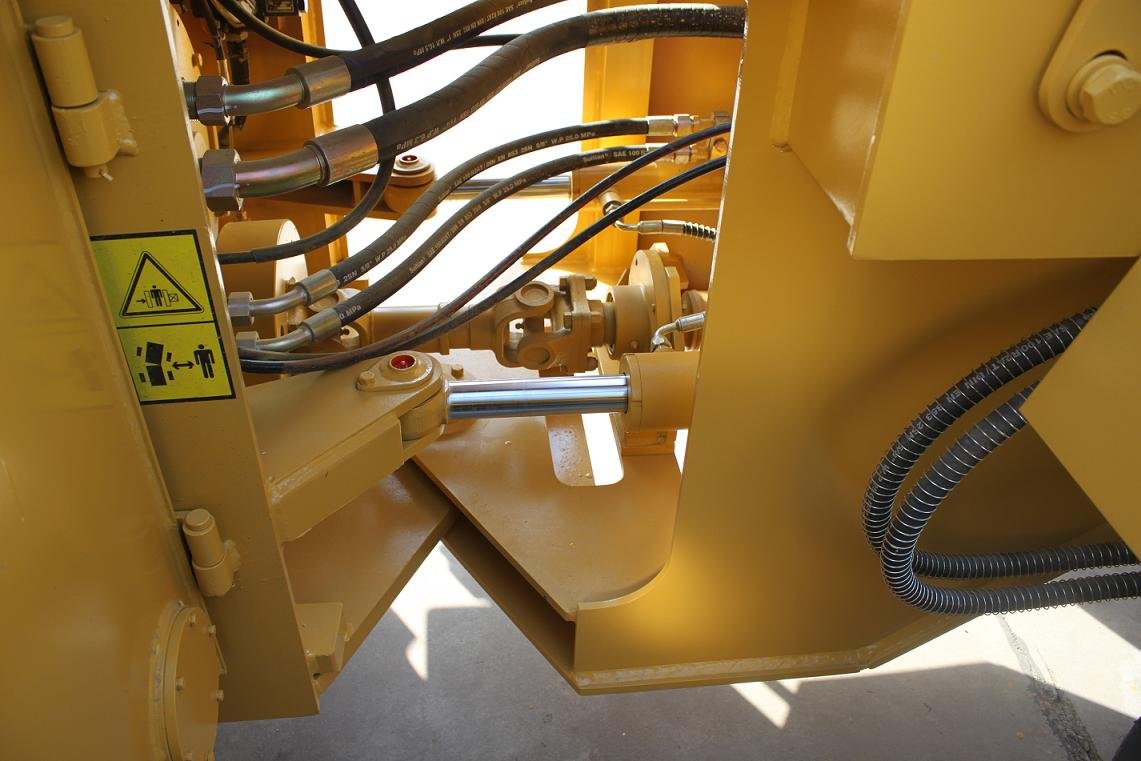

The front frame, rear frame, boom, rocker arm and bucket are all produced by us. strong structure of loader.jpg

Computer finite element analysis ensures the reasonable design. High quality welding

and shot blasting treatment eliminate the welding stress effectively.

All structure parts use the best quality steel plate as WISCO or BAO steel.

The front frame is connected with the rear frame by pins and bearings.

The space is big which is easy for maintenance. The high precision of hole

boring makes it easy to connect the articulations. High quality temperature

treatment ensures the hardness of the pins. In this way, the loader can be

operated smoothly with lower fuel cost.



COMFORTABLE CABIN AND EASY OPERATION

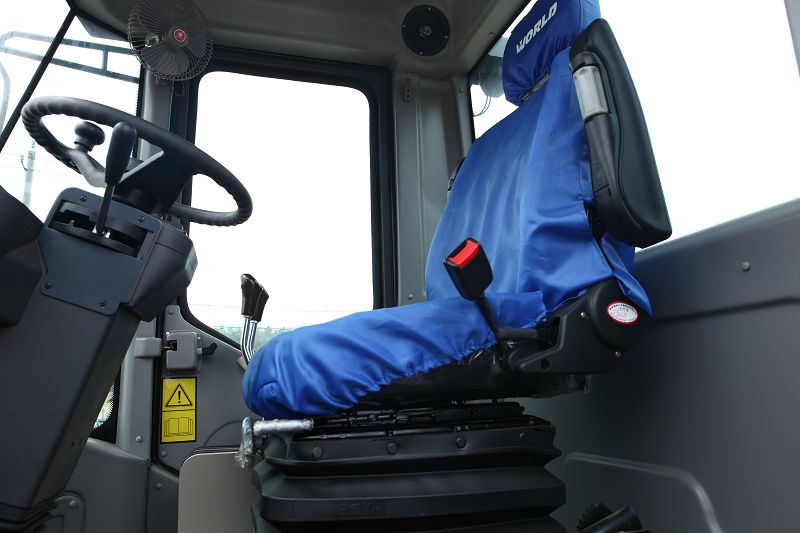

The standard spacious cabin is equipped with shock absorbing seat, loader comfortable cabin.JPG

radio and air conditioner. The optimized Seating System is 6-way

adjustable to accommodate operators of all sizes. And the cabin is

mounted to the frame with hydraulic damper which decrease the noise

and vibration.

The control panel centralizes the switches for working lights, alarm lights,

wiper, electric fan and auxiliary switch.  The instruments include air pressure

meter, oil pressure meter, fuel level meter, water temperature meter, oil

temperature meter, battery voltage meter and working hours counter.


Basic   Data
Bucket Capacity1.8   or 2.2 m³
Rated Load3200kg
Travelling   Speed
Forward 1st0-10.8km/h
Forward 2nd0-32.5km/h
Reverse 1st:0-14.5km/h
Max.Traction97kN
Max.Break Out Force100kN
Min.Turn Radius (outside tyre)5376mm
Max. Dumping Height3060mm
Max. Reach1008mm
Total Hydraulic Cycle Time≤10.3s
Full Bucket Lifting Time≤5.6s
Wheelbase 2750mm
Tread1800mm
Dimensions (LxWxH)6970x2460x3286mm
Min. Clearance Over Ground360mm
Operating Weight10000kg

Diesel   Engine
ModelCummins or Duetz or   Yuchai
TypeDirect   injection, water cooling, 4 strokes
Rated Output97/92/92kW
Rated Speed2200rpm
Max. Torque560N.m/500N.m/460N.m

Transmission
 Model:self made
Rated Input   Speed:2200rpm
Transmission   Type2   forward and 1 reverse gears, power shift, planet type

Mechanical Gear   Ratios
Gear I2.576
Gear II0.691
Reverse1.8846
Hydraulic Oil Pressure1.10-1.40MPa
Torque Convertor Inlet Oil Pressure0.33-0.5MPa
Torque Convertor Outlet Oil Pressure0.1-0.20MPa
Lubricating Oil Pressure0.10-0.20MPa
Max.Permissible Temp.120

Transaxle   & Tyre
Transaxle TypeFenyi
Drive System4   wheel drive
Rear Axle OscillationCenter   oscillation
Oscillating Angle of Rear Axle                          12°
Carrier Assembly Reduction Ratio4.375
Rear Reducer Reduction Ratio4.75
Tyre  Size17.5-25
Pressure Of Tyre0.28-0.32MPa

Working   Hydraulic System
Working Pump TypeGear   Pump
System Working Pressure16MPa
Lifting Cylinder Bore x Stroke125x816mm
Tilting Cylinder Bore x Stroke140x553   mm

Steering   System
Typefull   hydraulic power steering system
Steering Pump TypeCBY2050  (reverse)
Max. Working Pressure10MPa
Steering Cylinder Bore x Stroke80x340mm
Max. Steering Angle±36º

Brake   System
TypeAir   over hydraulic disc on four wheels brakes

Oil Injection   Capacity
Fuel Tank150L
Engine Oil15L
Transmission27L
Hydraulic Oil   Tank140L
Transaxle30L
