4LZ-4.0A Double Thresher Harvester for Rice

4LZ-4.0A double thresher type combine harvester is suitable for paddy rice harvesting and wheat harvesting. Double thresher with vibrating sieve to separate the grain from the straw and make it cleaning. Chinese 88hp powerful Changchai diesel engine, self-produced high quality gearbox with imported brand HST, standard equip with vertical type grain discharge pipe and sun-roof.
Availability:
Quantity:
  • 4LZ-4.0A

  • WORLD

  • 4LZ-4.0A

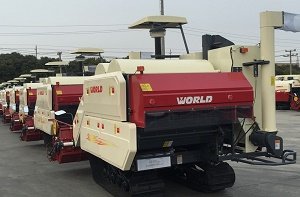

DOUBLE THRESHER

Double thresher threshing and cleaning system, matured technology.double thresher.jpg

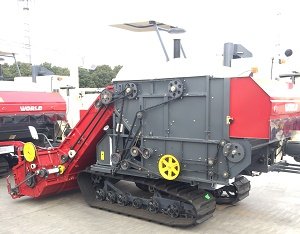

HIGH QUALITY BELT AND CHAIN DRIVE SYSTEM

The harvester adops high quality belt and chain drive system with strong belt and chain drive system.jpg

tension wheels. The cover can be disassembled which is easy for maintenance.

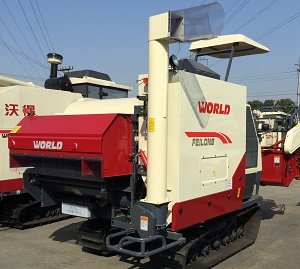

VERTICAL TYPE GRAIN DISCHARGE PIPE

Vertical type grain discharge pipe is standard and rotary pipe is optional.vertical type grain pipe.jpg

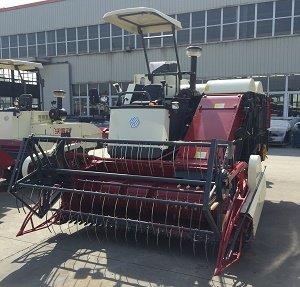

STRONG REEL AND AUGER

The spring type reel teeth are high quality material. Feeding auger is strong harvester reel and auger.jpg

with wearing resistant material.

MODELUNIT4LZ-4.0A
TYPE
FULL-FEED,TRACK   COMBINE
ENGINEMODEL
498BT/BZT/L,   4C6-88M22
TYPE
WATER-COOLED,4-CYLINDER,   DI-INJECTION, VERTICAL DIESEL
RATED POWERKW/HP64/88
RATED ROTATION SPEEDRPM2650
FUEL TANK CAPACITYL130
OVERALL DIMENTIONNSMM5100x2890x2700
WEIGHTKG2800
CUTTING WIDTHMM2000/2200
FEEDING CAPACITYKG/S4
GROUND CLEARANCEMM300
WORKING EFFICIENCYHA/H0.5-0.9
TYPE OF BLADE
V   TYPE/LEFT AND RIGHT
TYPE OF CUTTING BAR AUGER
SCREW   CONVEYING
THRESHINGTYPE
AXIAL   FLOW TYPE WITH BEAT BARS
THRESHING CYLINDERMM620X2050
FILTRATE TYPE
VIBRATING   SIEVES+CENTRIFUGAL FAN
TRACKSIZEMM400/450/500X90X51
TRACK GAUGEMM1150
TYPE OF GEARBOX
HYDRAULIC   TYPE WITH HST
