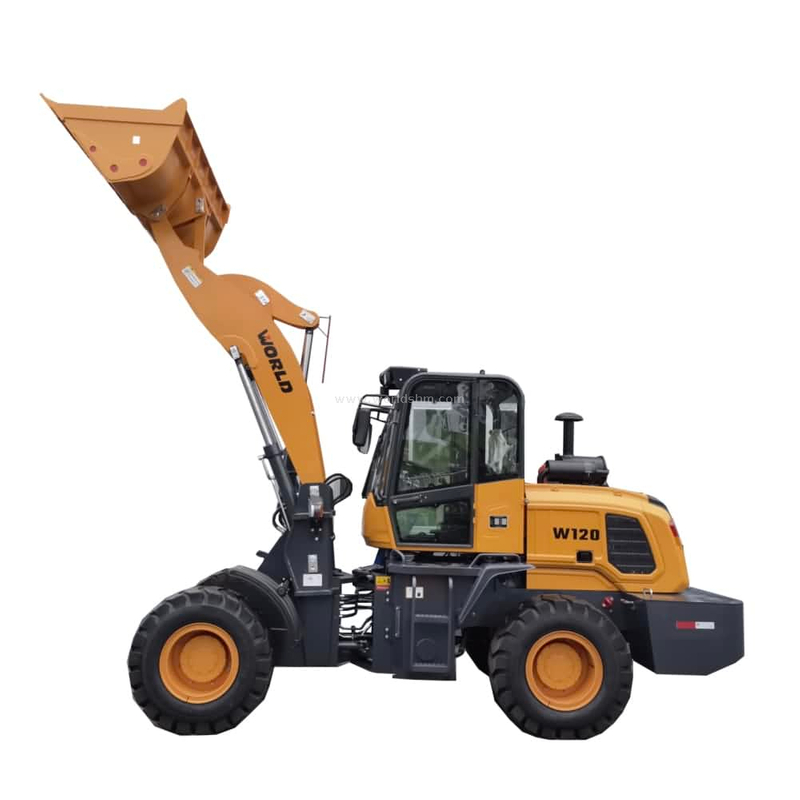

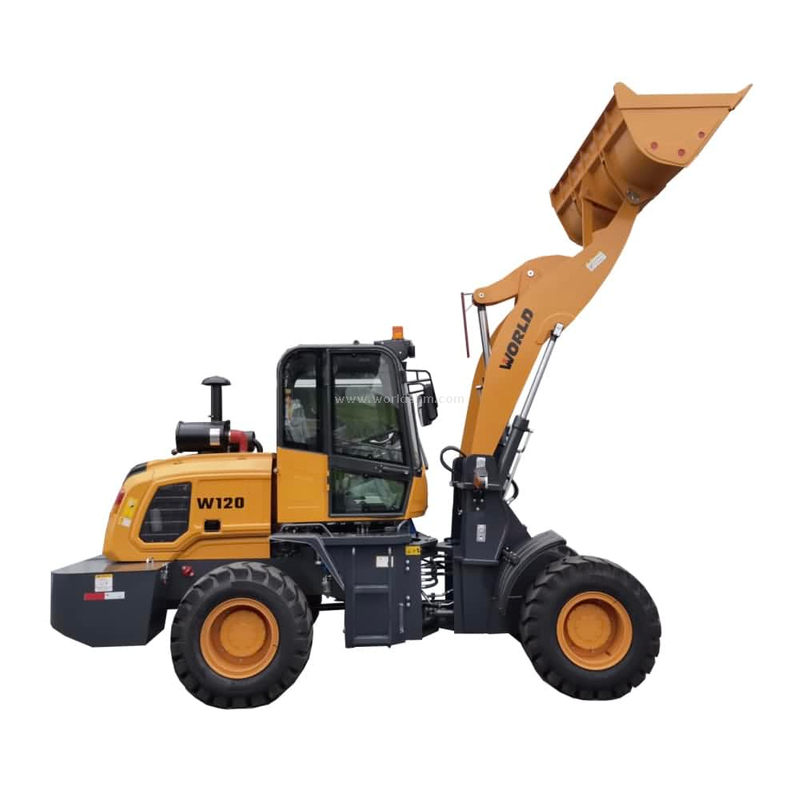

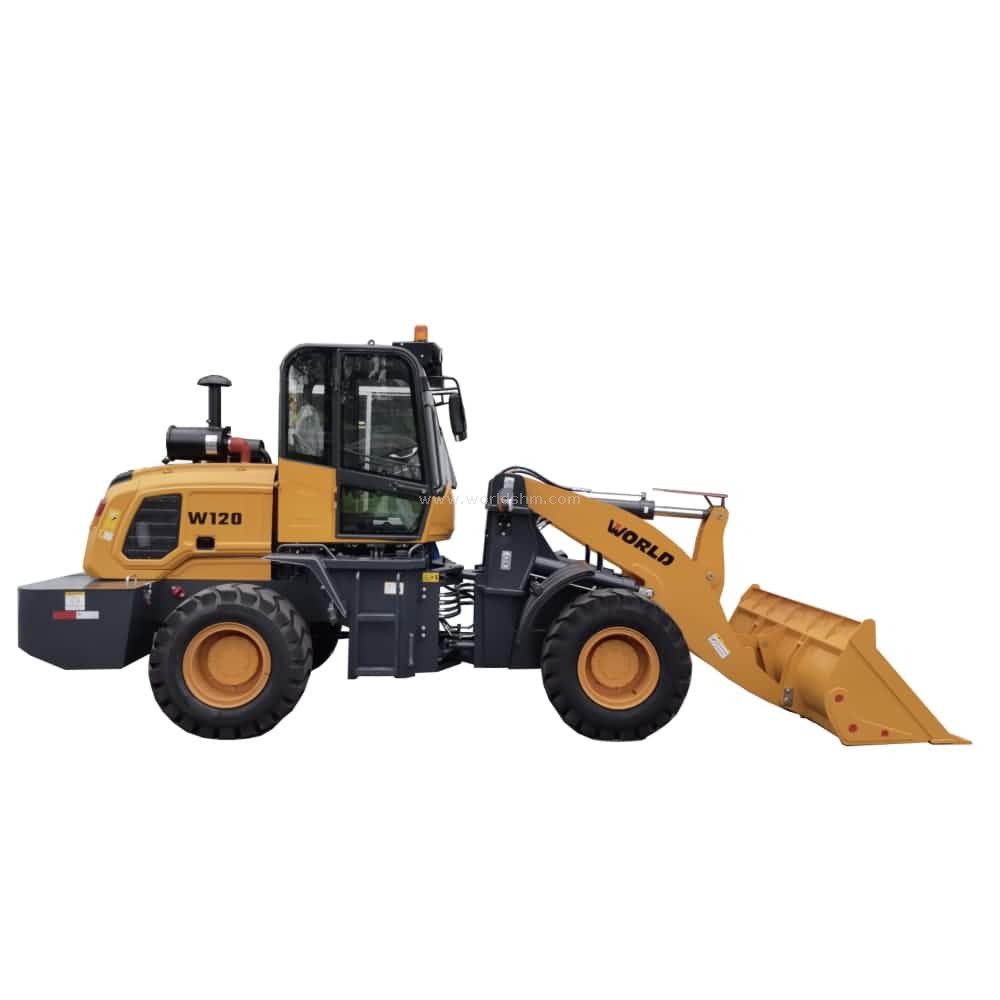

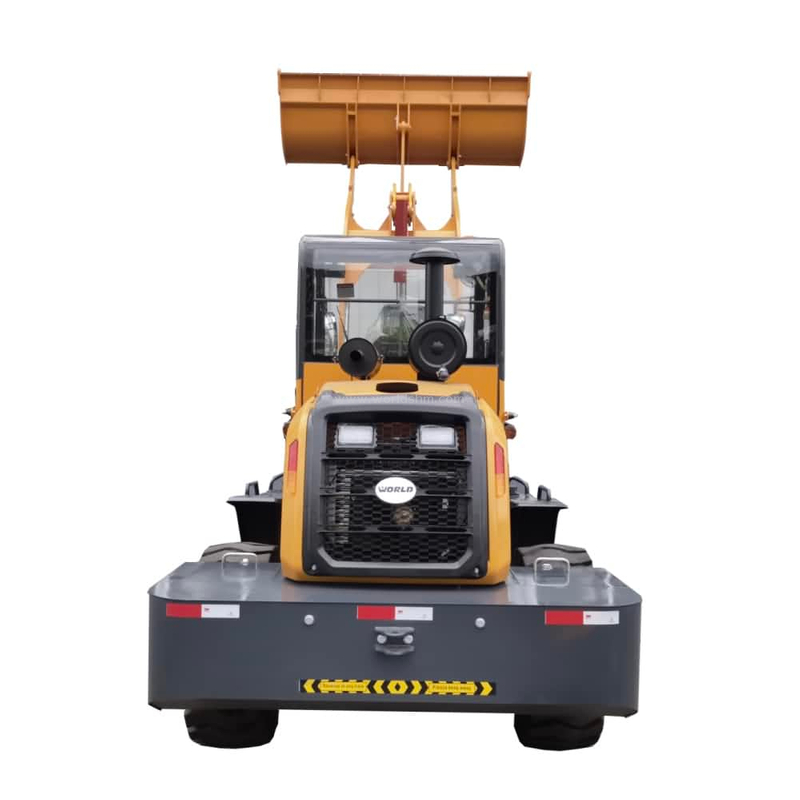

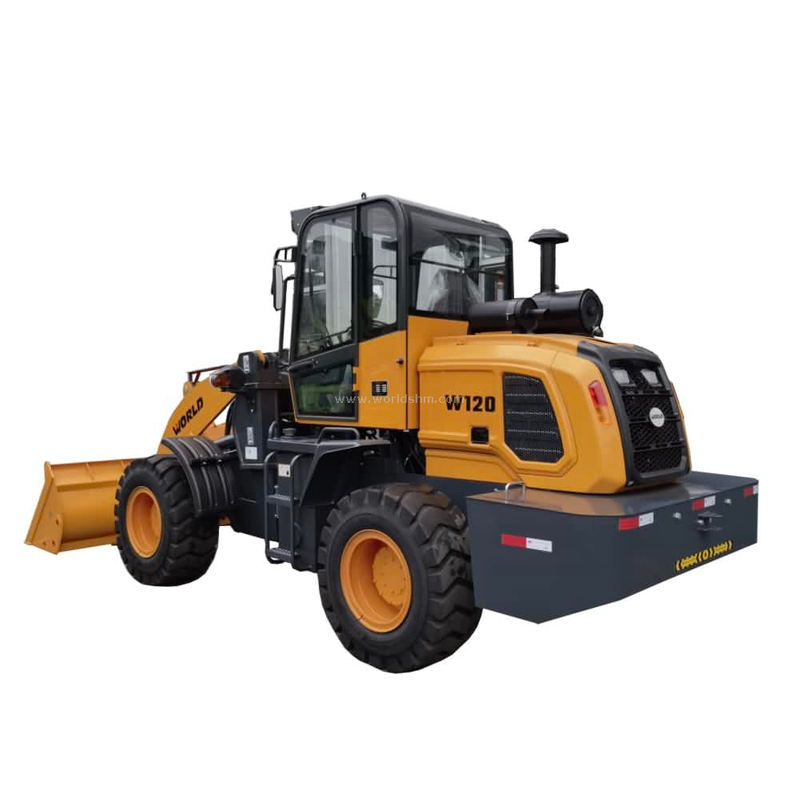

2 Ton Wheel Loader with 1.2 Cbm Bucket

2 ton mini loader is suitable for farming and light duty construction working. The loader is standard equipped with 100 HP Cummins engine and air conditioned cabin. Strong axles with dry type caliper brake system and hub reducer. Optional accessories as coal bucket, long arm, quick change hitch, pallet fork and grapple are all available.

Quantity:
  • W120
  • WORLD
  • W120

 Items

Model

W120

Performance

1.rated load

2000-2400KGS

2.operation weight

6000KGS

3. bucket capacity

1.2M3

4.max tract force

58KN

5.max breakout force

≥69KN

6.max grade ability

30°

7.max dump height

3500MM

8.max dump reach

1050MM

9.overall dimension

6260X2100X2860MM

10.min turning radius

5500MM

Engine

11.model

Cummins 4BTA3.9-C100

12.type

water cooling, 4 cylinders

13.rated power

100HP/74kw

14. Min Fuel-consumption Ratio

230g/kw.h

Transmission

15. Torque Converter

SHANTUI 285

16. Gear Shift

2 Forward  1 Reverse

17.Maximum Speed

29km/h

Drive axles

18.wheel base

2400mm

19. Wheel Tread

1600mm

20. System Working Pressure

16Mpa

21. Fuel Tank Capacity

200L

22. Service Brake

Four wheel hydraulic spread shoed break

23.Parking Brake

Manual Parking Brake

24. Type Specification

16/70-24

25. Front Tyre Pressure

0.4Mpa

26. Rear Tyre Pressure

0.35Mpa
