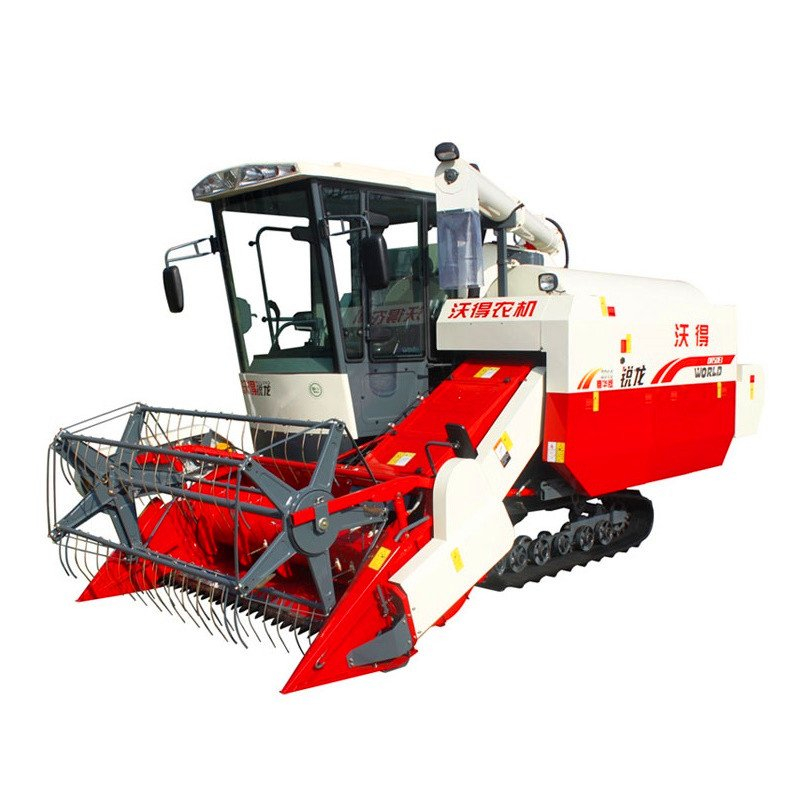

4LZ-4.0E Single Thresher Harvester

4LZ-4.0E axial flow type combine harvester adopts the I type thresher, higher efficiency and better cleaning performance. Changchai brand 88hp diesel engine, self-produced gearbox with HST, rubber track 450x90x51, 360 degree rotary grain discharge pipe, 1.4m3 big grain tank, 2200mm cutting width and 4kg/s feeding capacity. This track type harvester is suitable for paddy rice harvesting, wheat harvesting, soybean harvesting, rape and cumin harvesting. It can harvest corn too if equip with an extra corn harvesting accessory.

Quantity:
  • 4LZ-4.0E
  • WORLD
  • 4LZ-4.0E

AXIAL FLOW TYPE THRESHER

Axial flow type (I type) thresher is advanced technology for combine harvester. axial flow type thresher.jpg

The grain is feeding through the front impeller to the thresher. The moving

direction of grain with straw is a line along with the thresher. This design makes

better threshing performance with higher efficiency and better cleaning performance.






HIGH QUALIY BELT AND CHAIN TRANSMISSION SYSTEM

4LZ-4.0E harvester adopts high quality belts and chain for all the transmission belt and chain transmission.jpg

system. More reliable and longer working life.








SELF-PRODUCED GEARBOX WITH HST

The gearbox is produced by World with advanced technology and high quality gearbox with HST.jpg

bearings and gears. Hydraulic HST is standard equipped for easy shift changing

and lower fuel consumption.

















LONGER SPRING TYPE REEL TEETH

Longer spring teeth are better for laid rice harvesting. longer reel teeth.jpg

Can pick up the crops when knife is 8cm distance to the ground.










360 DEGREE ROTARY GRAIN DISCHARGE PIPE

The 360 degree rotary grain discharge pipe is easy for discharge the grainrotary grain discharge pipe.jpg

from the tank. This design makes less operators during the harvester is

harvesting. And higher efficiency till the grain tank is full and then the

harvester can drive to discharge the grain.



Feeding Capacity  (KG/s)

4.0

Work Dimension  L*W*H (mm)

4900*2890*2700

Weight

(KGS)

2900

Cabin/Sun-roof

Sun-roof

Engine Part

Model No.

Changchai 4L88

Power/Speed (ps[Hp]/rpm)

88/2700

Fuel

Light Diesel Oil

Fuel Capacity (L)

130

Fuel   Consumption(kg/hm2)

1230

Start

Motor Starter

Gear Box

ZKB65 made by WORLD Factory.

HST

40CC HST Imported from south Korea.

Walking Part

Rubber Track

Length of Ground   Contact (mm)

1700

Center Distance (mm)

1160

Size(mm)

450*90*51

Average Contact   Pressure

(kpa[kgf]/cm2)

20Kpa

Min. Ground Clearance   (mm)

300

Gear Shifts

Variable Sun-transmission   3 Shifts

Walk Speed (Km/Hour)

Low:01.85 Medium:06.5 High:09

Theoretical Work Speed   (Km/Hour)

0.9-6.5

Harvesting Unit

Grain Lifter

Divider

Working Width (mm)


2200

Reel Bat

Dia. × Length (mm)

900×2028

Gearshift Method

Constant Speed

Adjusting Means

Hydraulic

Stubble Height[Lift]   (mm)

25cm or above

Threshing &Harvesting   Unit

Threshing Mode

Axial Flow Type, Bullet   Rotor

Threshing Rotor

Type of Threshing

Beat Bar

Dia. ×Length (mm)

620*2050

Rotating Speed(rpm)

662/732

Fan

Diameter

400

Separating Type

Vibrating Sieves +Air Blow

Area of Sieves (Lowe   and Upper Sieves) (m2)

1.645

Grain-unload Unit

Grain Tank Capacity (M3)

1.4

Grain Discharging Type

Vertical Discharging   Pipe

Alarm Units

Water Temperature,   Battery, Oil, Grain Tank, Jam of 2# Auger

Work Efficiency(hm2/h)

0.4~0.7

Crops

Rice, Wheat

Total Loss

Less than 2.5%

Breakage

Less than 1.5%

Impurity

Less than 1.5%
