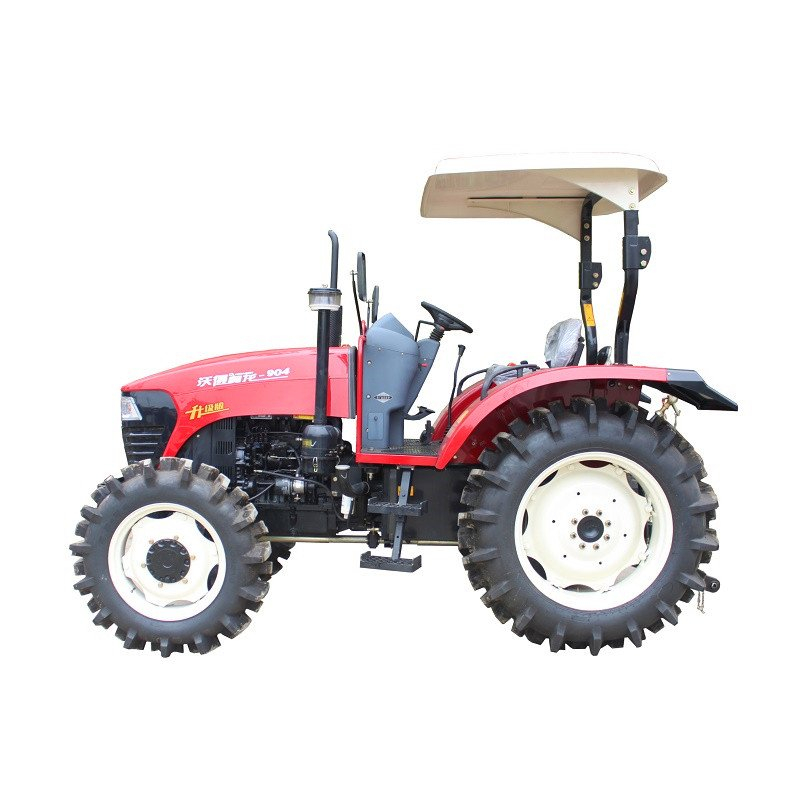

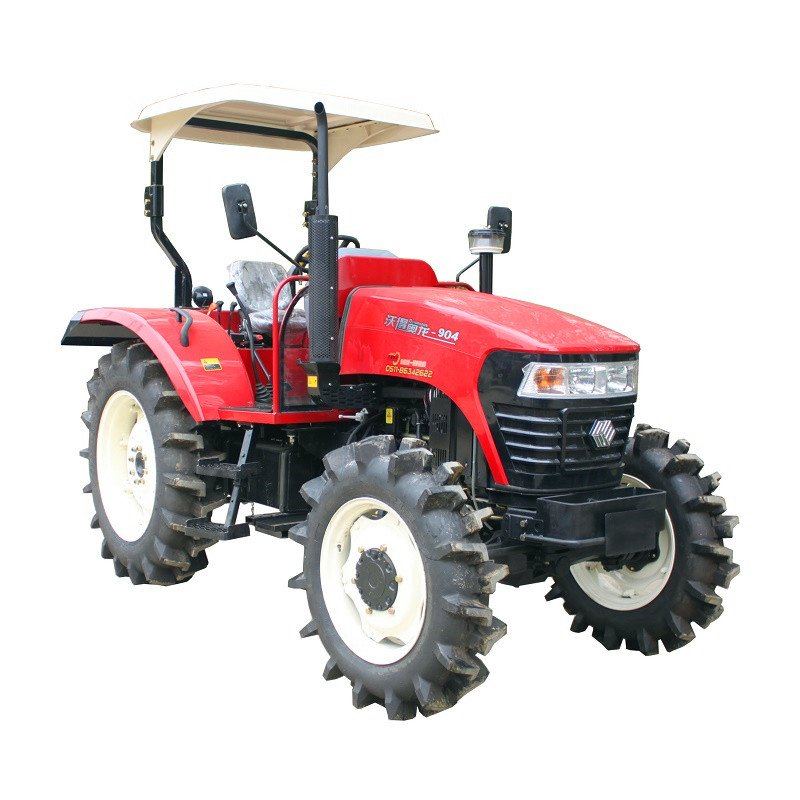

90 Hp Wheel Tractor

WD904, 90HP tractor, four wheel drive, Yuchai engine, 4 cylinders 4 strokes, 10+10 gearbox shuttle type, tires size 9.5-24/11-32 paddy type, dual action clutch, hydraulic steering, 2 pair of output valves, PTO speed 540/760, bilateral pressure, with canopy. Cabin with air conditioner is optional. This tractor can work with farm implements as plough, rotavator, tiller, potato planter, hay baler, harrow and trailer.

Quantity:
  • WD904
  • WORLD
  • WD904

Model

WD904

Engine

Engine Power/Speed(HP/rpm)

90/2300

Engine Type

4 cylinder, inline, water-cooling, 4 strokes, injection

Fuel Consumption(g/kw.h)

less than 242

Total Displacement(cc)

3760

Fuel Tank Capacity(L)

114

Air Cleaner

Dry, Dual-element

Transmission

No. of Speed

10+10

Shuttle

range shift lever(L-R)

Main Clutch

Double

Brake

Mechanical disc

Differential Lock

Involute spline gear sleeve type

PTO Speeds(rpm)

540/760

Hydraulics

3 Point Hitch

Adjustable top link and left right rod

Category

II

Control System

Position

Tires Standard

Lift capacity at 24 in behind lift point (kg)

2040

4WD Front/Rear(mm)

9.5-24/11-32 paddy tire

Travelling Speed (MAX.)(km/h)

34.9

Other Features

4WD Drive System

Bevel Gear Type

Steering

Hydraulic Power Steering

Flat Board

Flat Board

Dimension and Weight

Overall Length(mm)

4215

Overall Width(mm)

1990

Overall Height(mm)

2580

Wheel Track(mm)

2310

Ground Clearance (mm)

379

Tractor Weight(kg)

3800
