70 Hp Agriculture Tractor

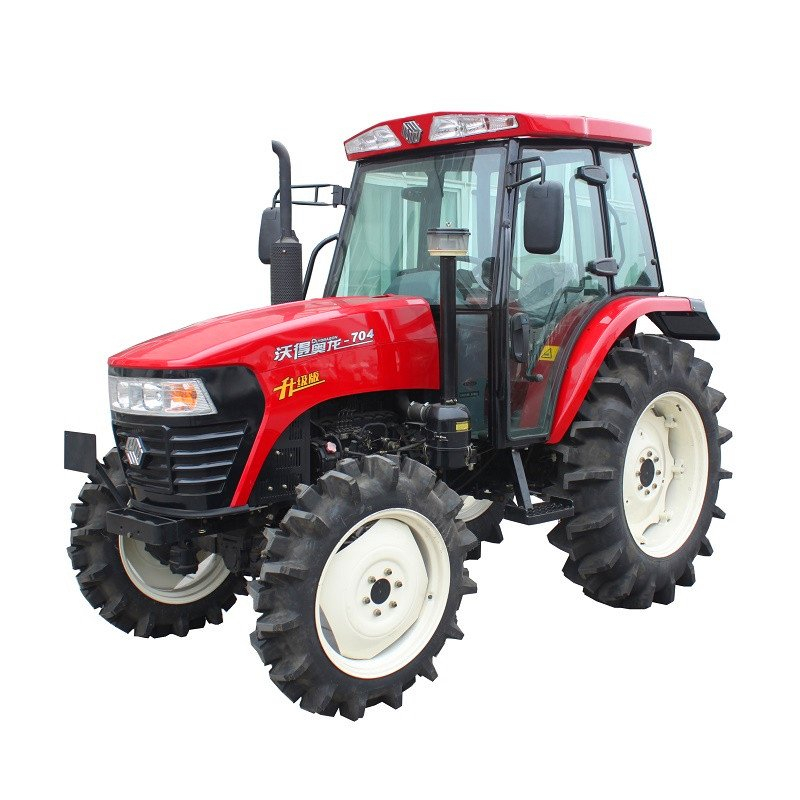

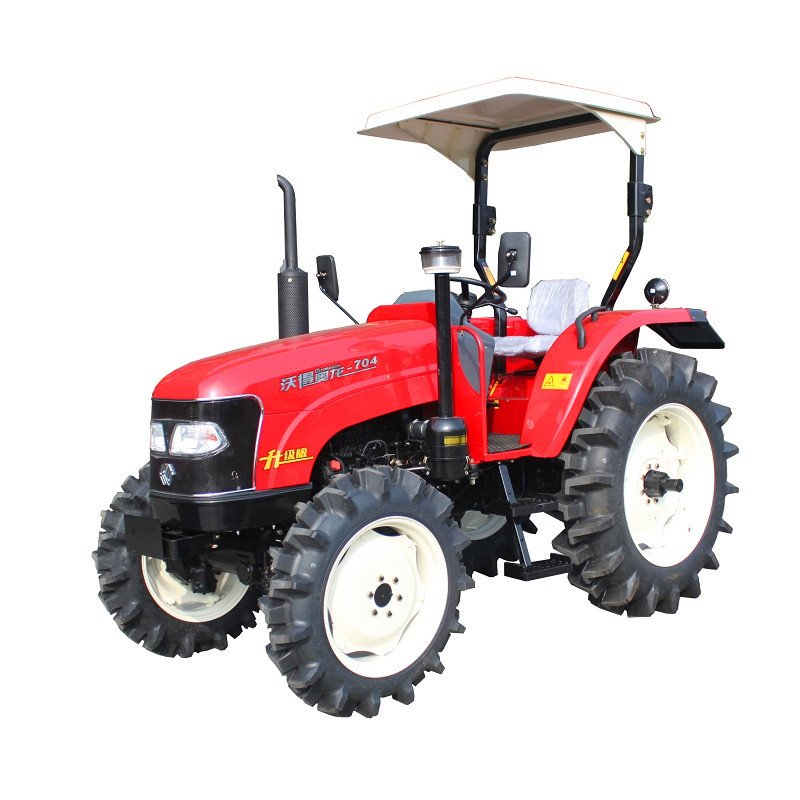

WD704, 70HP tractor, four wheel drive, Changchai engine, 4 cylinders 4 strokes, 8+8 gearbox shuttle type, tires size 8.3-20/11-28 paddy type, dual action clutch, unilateral pressure, hydraulic steering, PTO speed 540/760, one pair of output valves, with canopy. Air conditioned cabin is optional. This tractor can work with implements as cultivator, planter, plough, tiller and trailer.

Quantity:
  • WD704
  • WORLD
  • WD704

Model

WD704

Engine

Engine Power/Speed(HP/rpm)

70/2300

Engine Type

4 cylinder, inline, water-cooling, 4 strokes injection

Fuel Consumption(g/kw.h)

less than 242

Total Displacement(cc)

4300

Fuel Tank Capacity(L)

60

Air Cleaner

Dry, Dual-element

Transmission

No. of Speed

8+8

Shuttle

range shift lever(L-R)

Main Clutch

Double

Brake

Dry double discs

Differential Lock

Involute spline gear sleeve type

PTO Speeds(rpm)

540/760

Hydraulics

3 Point Hitch

Adjustable top link and left right rod

Category

I&II

Control System

Position

Lift capacity at 24 in behind lift point (kg)

1224

Tires Standard

4WD Front/Rear(mm)

8.3-20/11-28 Paddy Tire

Travelling Speed (MAX.)(km/h)

33.97

Other Features

4WD Drive System

Bevel Gear Type

Steering

Hydraulic Power Steering

Flat Board

Flat Board

Dimension and Weight

Overall Length(mm)

3780

Overall Width(mm)

1710

Overall Height(mm)

2660

Wheel Base(mm)

1992

Ground Clearance (mm)

340

Turning Radius(w/o brake)(m)

4.5

Tractor Weight(kg)

2705
