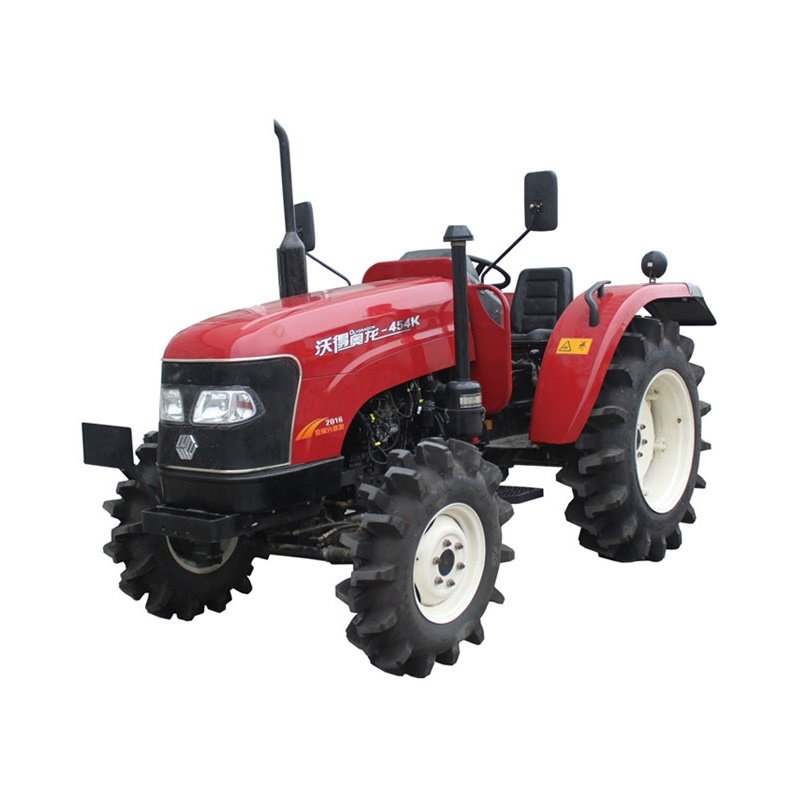

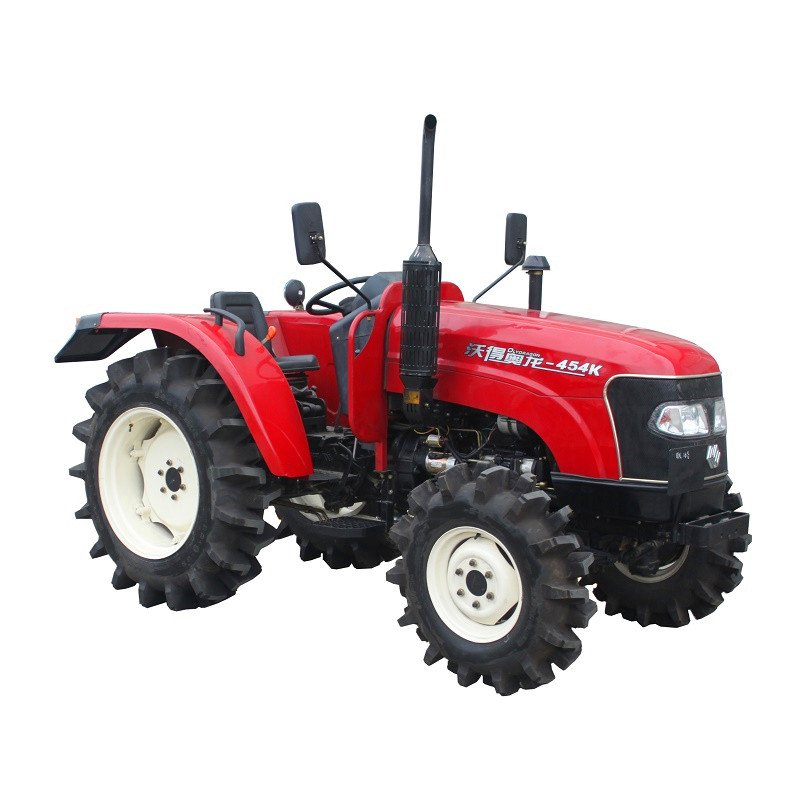

45 Hp Tractor

45hp small tractor, four wheel drive, standard equips with Chinese brand diesel engine and self-produced gearbox and axles. Single clutch, mechanical brake, hydraulic steering, 3 points link hitch, PTO speeds 540/760 rpm. Front ballast, rear ballast, and sun-roof are optional.

Quantity:
  • WD454
  • WORLD
  • WD454

Model

WD454

Engine

Engine Power/Speed(HP)

45/2400

Engine Type

4 cylinder, inline, water-cooling, 4 strokes, injection

Fuel Consumption(g/kw.h)

less than 242

Total Displacement(cc)

2970

Fuel Tank Capacity(L)

50

Air Cleaner

Dry, Dual-element

Transmission

No. of Speed

8+8

Shuttle

Range shift lever(L-R)

Main Clutch

Single

Brake

Mechanical disc

Differential Lock

Pin Type, Mechanical

PTO Speeds(rpm)

540/760

Hydraulics

3 Point Hitch

Adjustable top link and left right rod

Category

I

Control System

Position, Draft(option)

Lift capacity at 24 in behind lift point (kg)

760

Tires Standard

4WD Front/Rear(mm)

7.5-16/12.4-26 Paddy Tire

Travelling Speed (MAX.)(km/h)

27.2

Other Features

4WD Drive System

Bevel Gear Type

Steering

Hydraulic Power Steering

Dimension &Weight

Overall Length(mm)

3650

Overall Width(mm)

1572

Overall Height(mm)

2342

Wheel Base (mm)

1845

Ground Clearance (mm)

310

Turning Radius(w/o brake)(m)

3.3+/-0.3

Tractor Weight(kg)

1770
