•A CUMMINS QSNT-C235 engine which can meet gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent overall fluid efficiency.
•The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.
•It can realize automatic fault diagnosis and full monitoring. The overall cast instrument panel integrates air conditioning, electrical appliances and instruments into one, which is more beautiful and luxury.
•The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.
•According to the ergonomic design, the driver's seat and armrest can be adjusted up and down, the shifting, steering and throttle are placed on the left side, and the soft shaft structure is adopted. The working device is operated on the right side, and the servo control system is used to make the operation process more light and flexible.

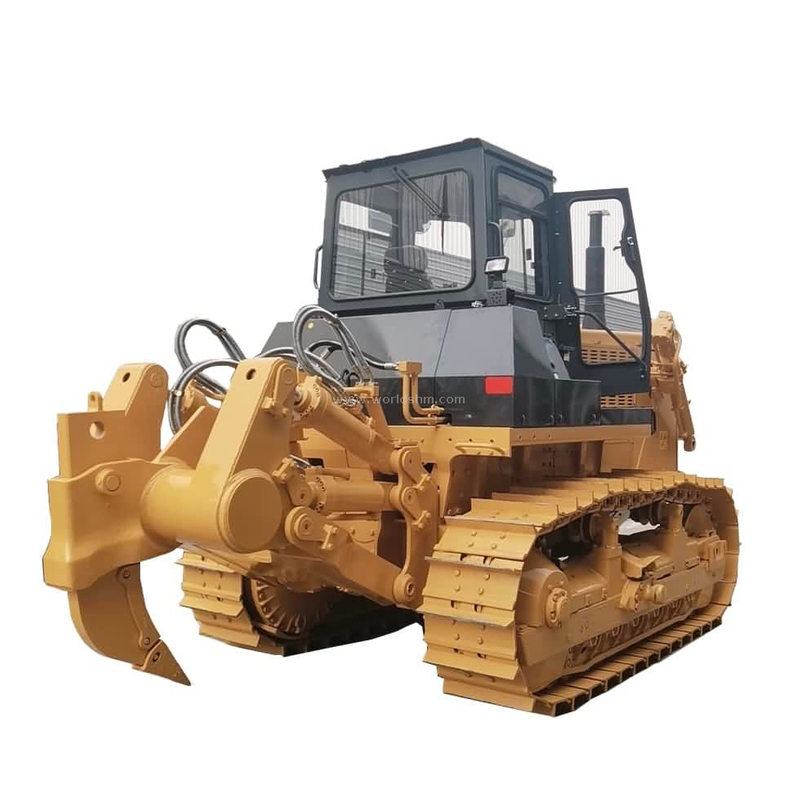

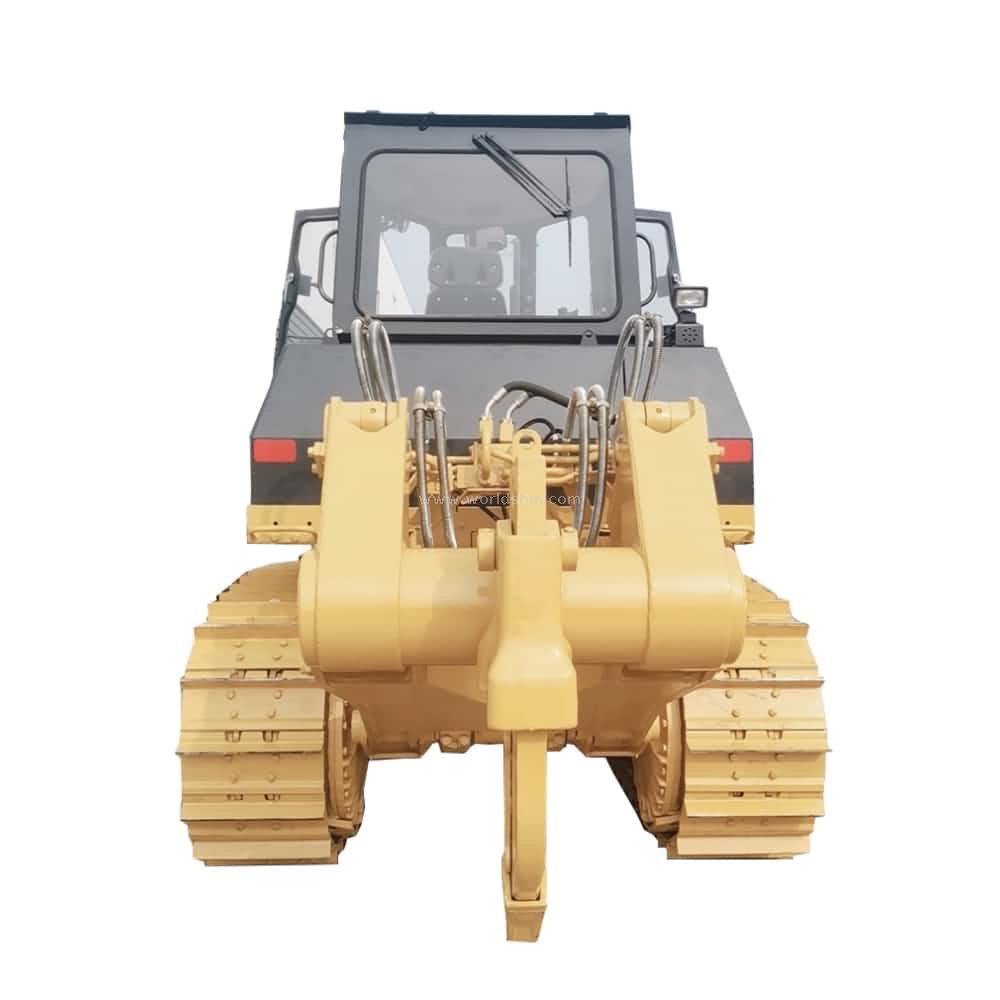

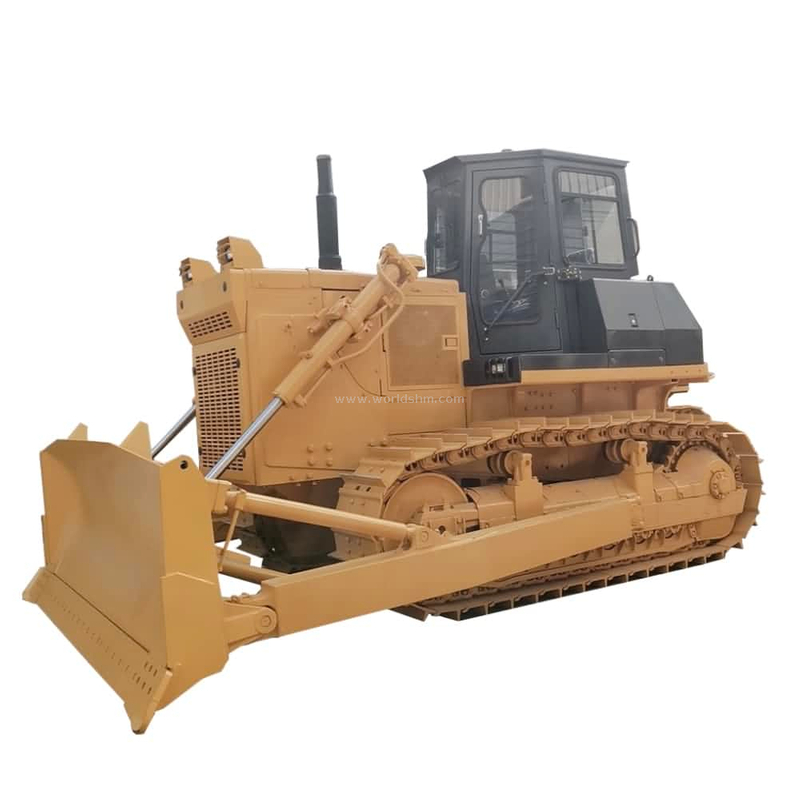

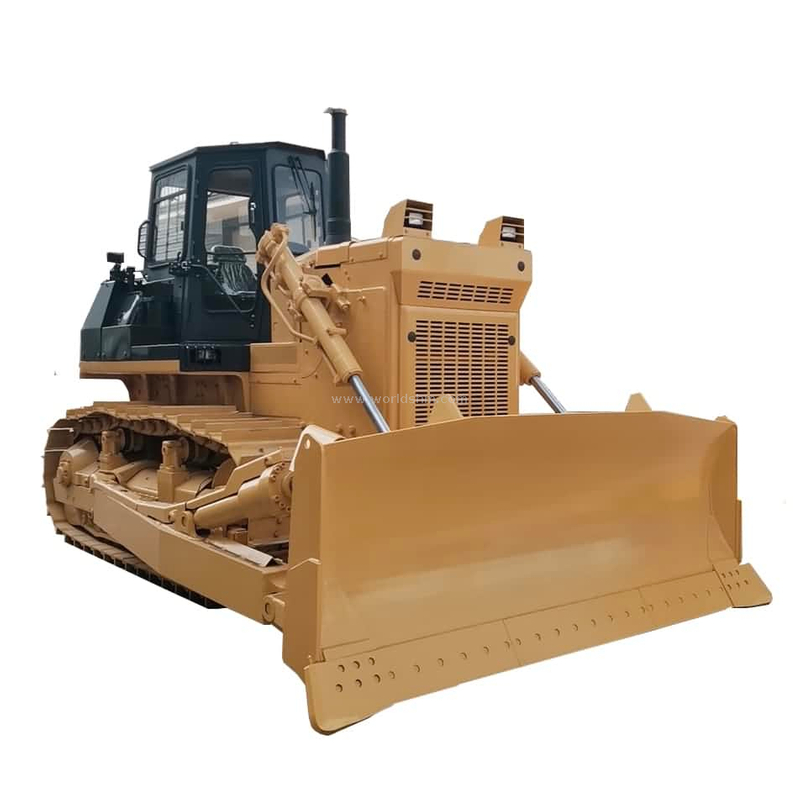

•The standard straight tilt blade features powerful cutting force and the three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force
型号 Model | WD220Y |
名称 Type | 220HP Standard Hydraulic Crawler Type |
发动机型号 | CUMMINS NT855-C280S10 |
发动机排量(L)Displacement | 14.01 |
额定功率(kw/rpm)Rated power | 175/1800 |
扭矩(N.m/rpm)Max.torque | 1030/1250 |
使用重量 Operating weight | 23.5 Ton |
长×宽×高(mm) Dimension(no ripper) | 5460×3725×3395 |
接地长度 (mm) Grounding length | 2730 |
接地比压(MPa) Ground pressure | 0.077 |
履带中心距(mm) Track gauge | 2000 |
铲刀容量(m³) Dozing capacity | 6.4 |
铲刀宽度(mm) Blade width | 3725 |
铲刀高度(mm) Blade height | 1317 |
切削深度(mm) Max drop below ground | 540 |
履带板宽度(mm) Track shoe width | 560 |
链轨节距(mm) Pitch | 216 |
链轨节数量 Quantity of track link | 38 |
托轮数量 Quantity of Carrier rollers | 4 |
支重轮数量 Quantity of Track rollers | 12 |
液压系统工作压力(MPa) Max pressure | 14 |
液压系统流量L/min Discharge | 262 |
牵引力(KN) Max tractor force | 202 |
前进各档速度 (Km/h) Forward Speed | F1:0-3.6 |
F2:0-6.5 | |
F3:0-11.2 | |
后退各档速度 (Km/h) Rear Speed | R1:0-4.3 |
R2:0-7.7 | |
R3:0-13.2 |
