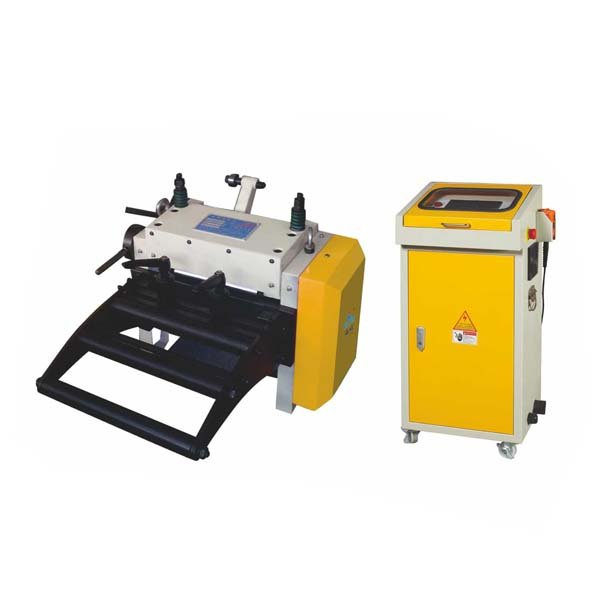

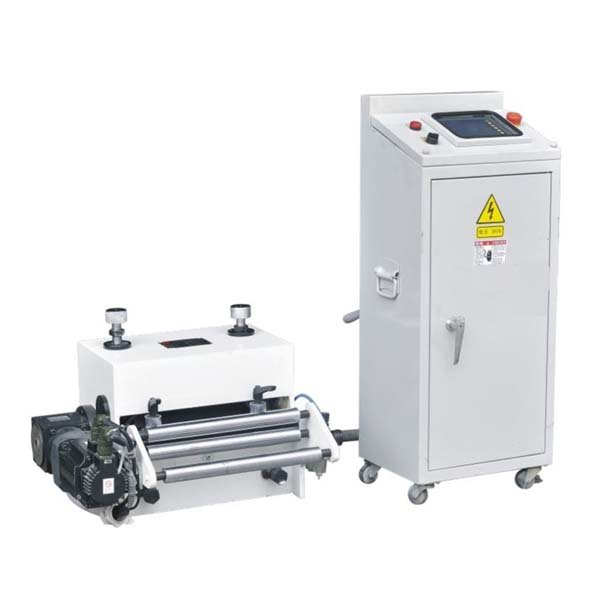

Press NC Feeder

Press servo NC feeder is widely used for automatic press line for coil sheet feeding. Feeder roller is chrome treatment to ensure the surface hardness HRC60. Feeding length can be preset on the interface. Mitsubishi PLC, Yaskawa servo motor, coil thickness maximum 4.5mm. Customized feeder for special thickness coil sheet is also available.

Availability:

Quantity:



Inquire Add to Basket

Model:
NCF
Brand:
WORLD
Code:
NCF

SPECIFICATIONS

Model No		NCF-100 NCF-100B NCF-100A	NCF-200 NCF-200B NCF-200A	NCF-300 NCF-300B NCF-300A	NCF-400 NCF-400B NCF-400A	NCF-500 NCF-500B NCF-500A
Material thickness	Standard	0.2-2.2mm	0.2-2.2mm	0.2-2.2mm	0.2-2.2mm	0.2-2.2mm
	B Type	0.2-3.5mm	0.2-3.5mm	0.2-3.5mm	0.2-3.5mm	0.2-3.5mm
	A Type	0.2-4.5mm	0.2-4.5mm	0.2-4.5mm	0.2-4.5mm	0.2-4.5mm
Material width		100mm	200mm	300mm	400mm	500mm
Max. feeding length		9999mm	9999mm	9999mm	9999mm	9999mm
Feeding speed		20m/min	20m/min	20m/min	20m/min	20m/min
PLC		MITSUBISHI
Servo motor		YASKAWA
Release type		Mechanical	Mechanical/pneumatic			pneumatic
Model No		NCF-700 NCF-700B NCF-700A	NCF-800 NCF-800B NCF-800A	NCF-1000 NCF-1000B NCF-1000A	NCF-1300 NCF-1300B NCF-1300A	NCF-1600 NCF-1600B NCF-1600A
Material thickness	Standard	0.2-2.2mm	0.2-2.2mm	0.2-2.2mm	0.2-2.2mm	0.2-2.2mm
	B Type	0.2-3.5mm	0.2-3.5mm	0.2-3.5mm	0.2-3.5mm	0.2-3.5mm
	A Type	0.2-4.5mm	0.2-4.5mm	0.2-4.5mm	0.2-4.5mm	0.2-4.5mm
Material width		700mm	800mm	1000mm	1300mm	1600mm
Max. feeding length		9999mm	9999mm	9999mm	9999mm	9999mm
Feeding speed		20m/min	20m/min	20m/min	20m/min	20m/min
PLC		MITSUBISHI
Servo motor		YASKAWA
Release type		pneumatic
