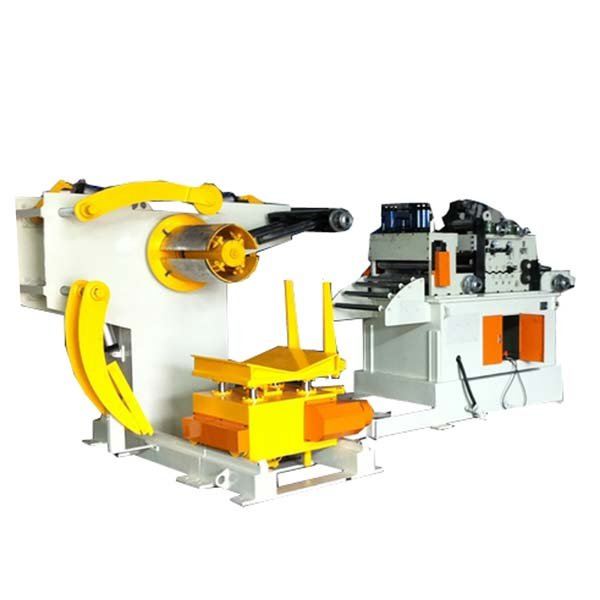

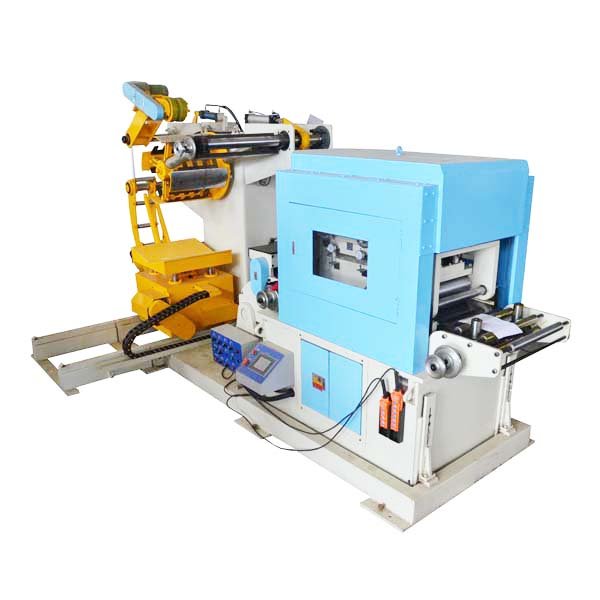

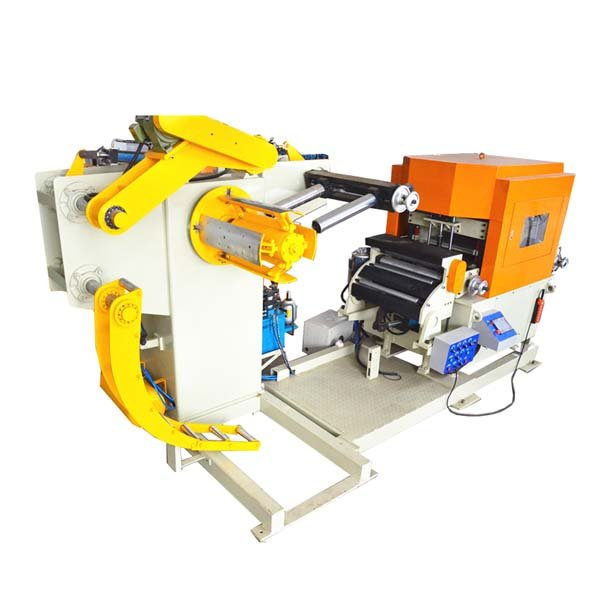

3 in 1 Decoiler Straightener NC Feeder

3 in 1 Decoiler Straightener NC Feeder, is an automatic feeding system for press stamping including an uncoiler and a combined straightener and NC feeder. The compact structure needs smaller space for location. Straightener feeder is run by servo motor. PLC control with touch screen type interface. Feeding length and feeding speed can be set through the screen. Hydraulic expansion, motorized feeding height adjustment, and a hydraulic coil loading car is optional.

Quantity:
  • TNCF
  • WORLD
  • TNCF
Item/ModelTNCF2-300TNCF2-400TNCF2-500TNCF2-600TNCF2-700TNCF2-800
Width of Material(mm)75-30075-40075-50075-60075-70075-800
Thickness of Material(mm)0.3-2.3
Max. Coil Weight(kg)2T           3T                5T
weight can be customized
Coil L.D.(mm)508
Max. Coil O.D.(mm)1200
Max.Speed(m/min)16
Feed Pitch Accuracy(mm)±0.15
Feed ROLLUpper1   / Lower1
Straighten  ROLLUpper5   / Lower4
Voltage380VAC   / 60Hz
Air power supply5kg /   CM²
Uncoiler ExpansionHydraulic
Servo Motor(kw)AC1.8AC2.9
Uncoiler  Motor(kw)1.5   KW2.2   KW
Coil Caroptional
Pass line±100   MM
Item/ModelTNCF3-300TNCF3-400TNCF3-500TNCF3-600TNCF3-700TNCF3-800TNCF3-1000
Width of Material(mm)75-30075-40075-50075-60075-70075-80075-1000
Thickness of Material(mm)0.4 -   3.2
Max.coil Weight(kg)2T        3T       5T
Coil L.D.(mm)508
Max.Coil O.D.(mm)1200
Max.Speed(m/min)16
Feed Pitch Accuracy(mm)±0.15
Feed ROLLUpper1   / Lower1
Straighten  ROLLUpper5   / Lower4Upper4   / Lower3
Voltage380VAC   / 60Hz
Air power supply5kg /   CM²
Uncoiler ExpansionHydraulic
Servo Motor(kw)AC1.8       AC2.9                        AC4.4
Uncoiler  Motor(kw)1.5   KW2.2   KW
Coil Caroptional
Pass line±100   MM

Item/ModelTNCF4-300TNCF4-400TNCF4-500TNCF4-600TNCF4-700TNCF4-800TNCF4-1000TNCF4-1300
Width of Material(mm)75-30075-40075-50075-60075-70075-80075-100075-1300
Thickness of Material(mm)0.5-4.5
Max.coil Weight(kg)2T3T5T        8T
Coil L.D.(mm)508
Max.Coil O.D.(mm)1500
Max.Speed(m/min)16
Feed Pitch Accuracy(mm)±0.15
Feed ROLLUpper1   / Lower1
Straighten  ROLLUpper4   / Lower3
Voltage380VAc   / 60Hz
Air power supply5kg /   CM²
Uncoiler ExpansionHydraulic
Servo Motor(kw)AC2.9          AC4.4                   AC5.5
Uncoiler  Motor(kw)1.5   KW2.2   KW3   KW
Coil Car1                                          optionalstandard
Pass line±100   MM
