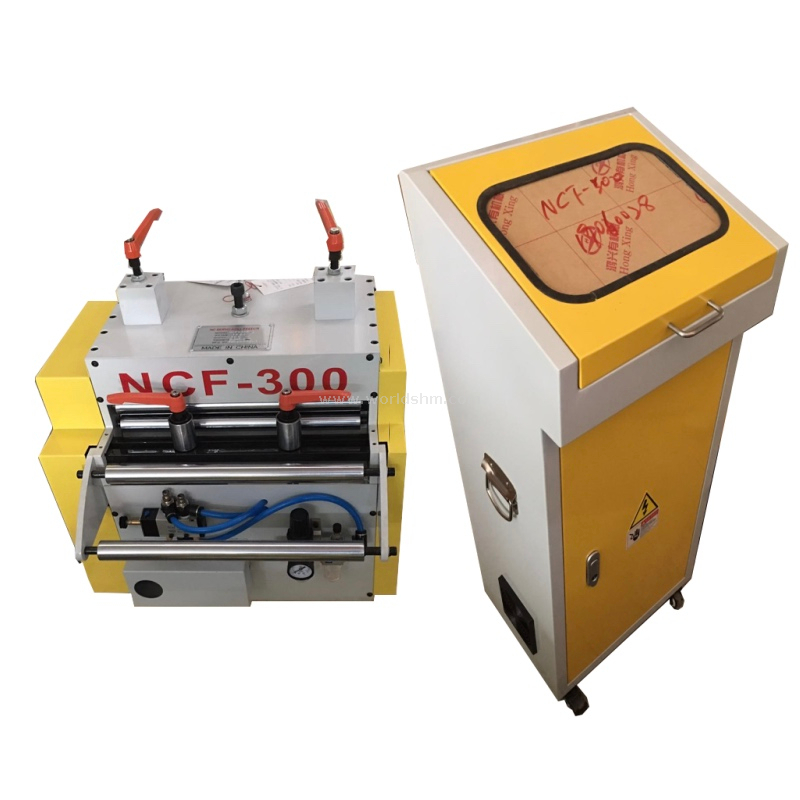

NCF-300 NC Feeder for Thickness 3mm Coil Feeding

NC coil feeding machine, servo motor drive, for feeding coil thickness less than 3.2mm and width less than 300mm.

Main features of NCF-300 feeder

. Servo motor drive

. Independent control electric cabinet

. HMI with touch screen

. Feeding pitch and speed are programmable

. PLC control

. Pneumatic release

. With mounting plate, feeding height adjustable

. Feeding thickness: 0.3-3.2mm

. Max. Feeding width: 300mm

. Max. Feeding speed: 20m/min

. Motor power: 1.8kW
