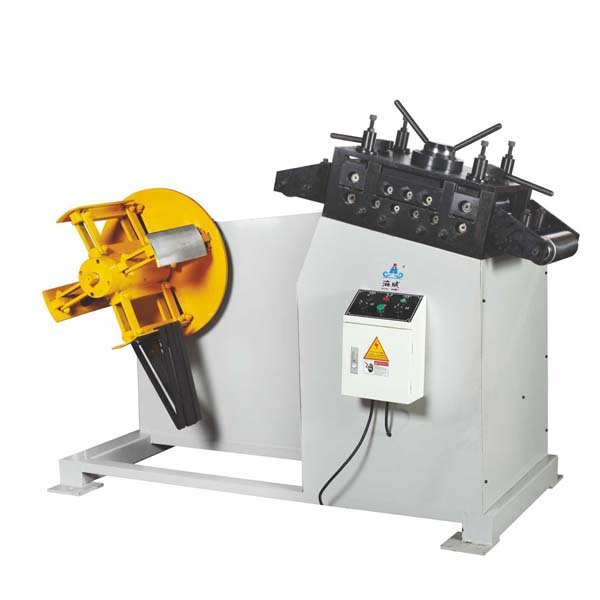

2 In 1 Combined Decolier Straightener

2 In 1 Combined Decolier Straightener, includes a manual expansion type uncolier and a straightener, suitable for coil uncoil and straightening process with width less than 600mm. The decoiler straightener can work with a NC feeder and power press to act as an automatic press line. GL type uncoiler straightener is more suitable for thick coil as this machine adopts 4 piece pneumatic cylinders to press the coil for better straightening performance. Frequency inverter and coil press arm are optional.

Quantity:
  • UL/GL
  • WORLD
  • UL/GL
Model NoUL-200AUL-300AUL-400AUL-500AUL-600A
Material thickness0.3-2.2mm0.3-2.2mm0.3-2.2mm0.3-2.2mm0.3-2.2mm
Material width200mm300mm400mm500mm600mm
Straightener rollerUpper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4
Feeding roller4set4set4set4set4set
Straightening speed15m/min15m/min15m/min15m/min15m/min
Straightening part adjustment4   manual wheel4   manual wheel4   manual wheel4   manual wheel4   manual wheel
Coil inner diameter450-530mm450-530mm450-530mm450-530mm450-530mm
Coil outer diameter∅1200mm∅1200mm∅1200mm∅1200mm∅1200mm
Coil weight500kg1000kg1000kg2000kg3000kg
Coil press armOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PART
Expansion methodMANUALMANUALMANUALMANUALMANUAL
Model NoUL-200BUL-300BUL-400BUL-500BUL-600B
Material thickness0.4-3.5mm0.4-3.5mm0.4-3.5mm0.4-3.5mm0.4-3.5mm
Material width200mm300mm400mm500mm600mm
Straightener rollerUpper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4
Feeding roller4set4set4set4set4set
Straightening speed15m/min15m/min15m/min15m/min15m/min
Straightening part adjustment4   manual wheel4   manual wheel4   manual wheel4   manual wheel4   manual wheel
Coil inner diameter450-530mm450-530mm450-530mm450-530mm450-530mm
Coil outer diameter∅1200mm∅1200mm∅1200mm∅1200mm∅1200mm
Coil weight500kg1000kg2000kg2000kg3000kg
Coil press armOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PART
Expansion methodMANUALMANUALMANUALMANUALMANUAL
Model NoGL-200AGL-300AGL-400AGL-500AGL-600A
Material thickness0.5-4.5mm0.5-4.5mm0.5-4.5mm0.5-4.5mm0.5-4.5mm
Material width200mm300mm400mm500mm600mm
Straightener rollerUpper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4
Feeding roller4set4set4set4set4set
Straightening speed15m/min15m/min15m/min15m/min15m/min
Straightening part adjustmentsynchronous   worm gear devicesynchronous   worm gear devicesynchronous   worm gear devicesynchronous   worm gear devicesynchronous   worm gear device
Coil inner diameter450-530mm450-530mm450-530mm450-530mm450-530mm
Coil outer diameter∅1200mm∅1200mm∅1200mm∅1200mm∅1200mm
Coil weight1000kg1000kg2000kg2000kg3000kg
Coil press armOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PARTOPTIONAL   PART
Expansion methodMANUALMANUALMANUALMANUALMANUAL
Model NoGLL-200AGLL-300AGLL-400AGLL-500AGLL-600A
Material thickness1-6mm1-6mm1-6mm1-6mm1-6mm
Material width200mm300mm400mm500mm600mm
Straightener rollerUpper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4Upper   3/lower 4
Feeding roller4set4set4set4set4set
Straightening speed15m/min15m/min15m/min15m/min15m/min
Straightening part adjustmentsynchronous   worm gear devicesynchronous   worm gear devicesynchronous   worm gear devicesynchronous   worm gear devicesynchronous   worm gear device
Coil inner diameter450-530mm450-530mm450-530mm450-530mm450-530mm
Coil outer diameter∅1200mm∅1200mm∅1200mm∅1200mm∅1200mm
Coil weight1000kg1000kg2000kg2000kg3000kg
Coil press armYESYESYESYESYES
Expansion methodMANUALMANUALMANUALMANUALMANUAL
