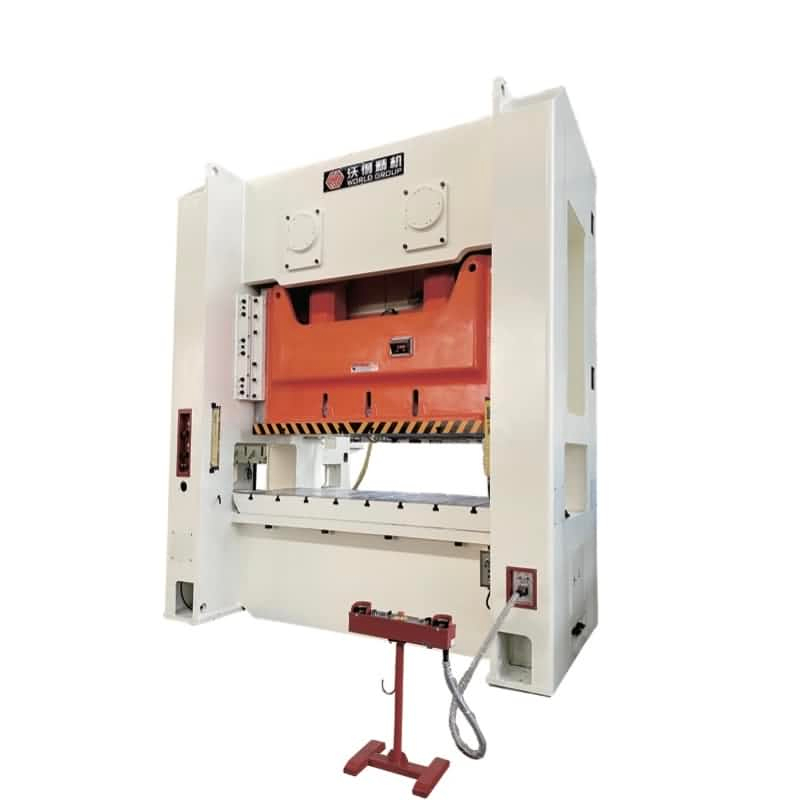

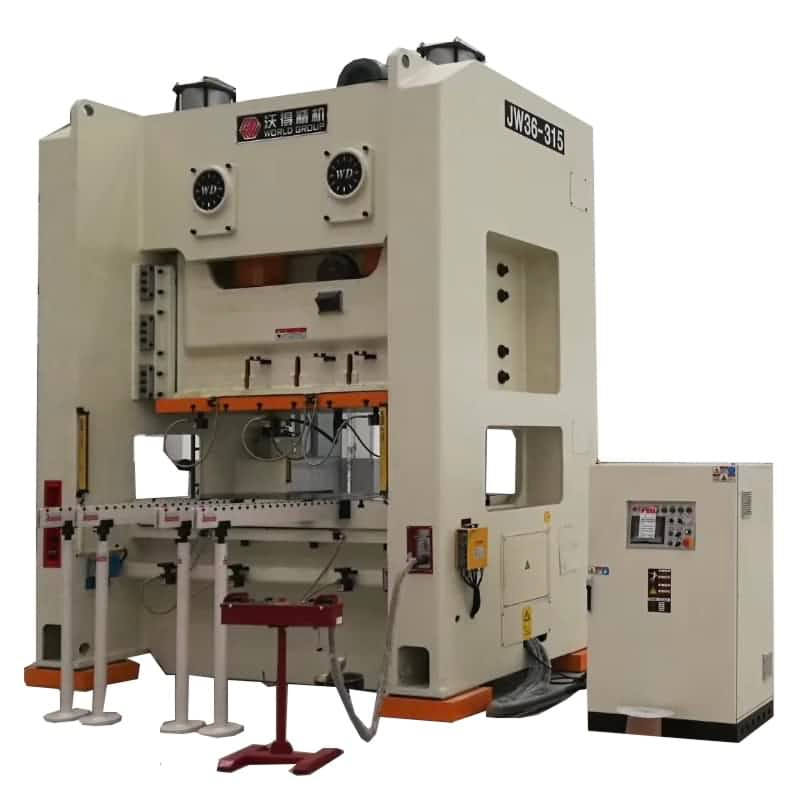

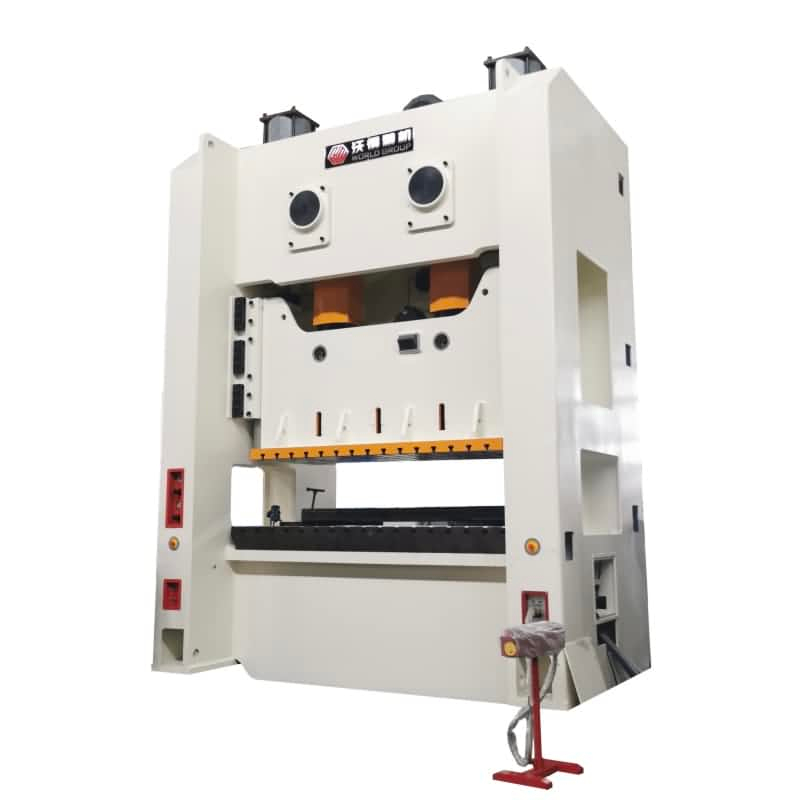

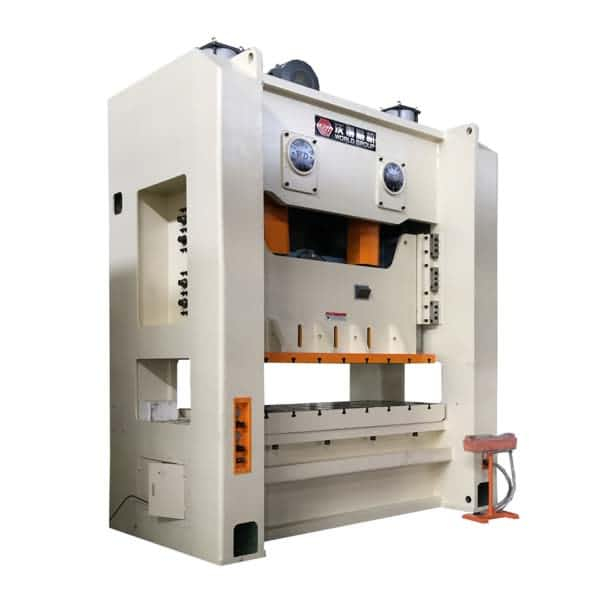

JW36 H Frame Double Crank Press

H frame double crank power press (punch press, press machine, punch machine, punch, stamping press, mechanical press), capacity from 110ton to 500ton, welded steel body, PLC control, wet clutch, hydraulic overload protected, auto lubricated, touch screen control. Bigger table better for big sheet stamping and progressive die stamping process. The press can work with NC feeder and transfer system for automatic press line.
Availability:
Quantity:
  • JW36
  • WORLD
  • JW36

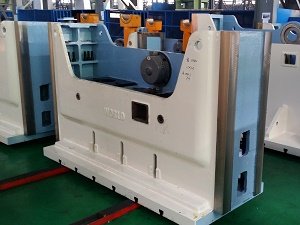

H FRAME BODY WITH EIGHT SURFACES SLID GUIDES FOR HIGH PRECISION

JW36 straight side press uses H frame steel welded body which is under heat press precise slide.jpg

treatment and ball ballasting treatment to release the welding stress. The body

is just one time fixed on the CNC milling center table to machining all holes

and surfaces. In this way, the machining precision is much higher than

normal process.

The slide guides are four angles eight surfaces type and the gap can be adjusted

on both front to rear side and left to right side. Precision is already ensured during

machining and just need to fine adjustment when installation or future maintenance.

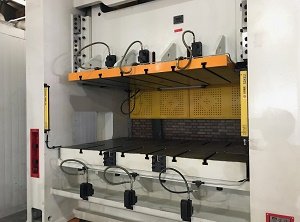

WIDER TABLE BETTER FOR PRORESSIVE DIE STAMPING

JW36 H frame double crank press has a wider table which is more suitable for press big table.jpg

progressive die stamping and big sheet punching process. The upper surface

of press working table is grinded by high performance grinding machine for

better flatness.

Bolster size is customized according to the die size. T slots can be machining

to customer’s drawing or request. Die quick change device is optional and it can

be fitted on the press before shipment if customer orders this QDC system.

Double cross located crankshafts reverse rotated to eliminate each lateral force.

Some customized bigger table press will use three stages transmission through

adding a middle gear. Pneumatic slide balance cylinder is equipped to balance

the slide weight and upper die weight. Press is timing by two big gears which

are oil bath in the top oil house. The two gears timing testing had been done

before installation to the press.

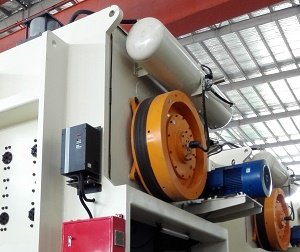

BIG TORQUE WET TYPE CLUTCH & BRAKE

Word patented and self-produced wet type pneumatic clutch is standard equippedpress wet clutch.jpg

to all H frame double crank presses while most other manufacturers can only use

dry type clutch. Wet type clutch means all the friction discs and pressure plates

are oil bath in the flywheel house. The oil will act as lubrication and heat radiation

medium. The customers just need to change the oil each half year for future

maintenance. Much lower maintenance cost than dry type. The close type structure

lows down working noise and forbids the dirty inside the flywheel.

Each clutch is under balance testing and temperature testing before assembling to

the press. High quality friction discs ensure long service life. No need to change

them within 3 years. Special high quality Y type seal rings ensure no oil leaking.

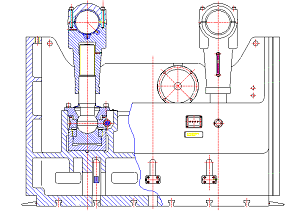

HYDRAULIC OVERLOAD PROTECTION SYSTEM

The H frame stamping press is standard equipped with a hydraulic overload pump. press overload protection system.png

Normally the press overload protection system is set as 110% of the nominal capacity.

Press will stop immediately once it is overload than 110% to protect both the h

frame press crankshafts and the press die. The system can be reset within 3 minutes.

It is easy to reset the overload as there is a reset switch on the control panel.








PLC CONTROL WITH HMI

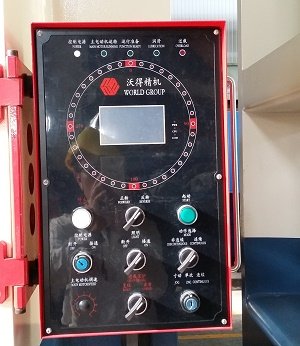

PLC central control system makes the press easily operation and inspection. HMI has press control panel.jpg

functions of system setting, I/O monitor, counter and preset counter. The operator can

set the lubrication frequency by the HMI according to the working time or working

stroke times.

The press has both mechanical and electrical cam controllers. It is easy to set the cam

angles to match the press with automatic uncoiler straightener feeder system or

transfer bar system.












PACKAGE AND SHIPMENT

H frame double crank press size is too big for container shipment. The press frame press package pallet.jpg

is an integrated structure which cannot be disassembled for small package.

Normally the press will be lied down on a strong steel pallet and sides protected by

steel box. The best shipment way is by bulk vessel or flat rack.


ITEM

CODE

UNIT

JW36-110

JW36-160

JW36-200

JW36-250

Nominal Capacity


KN

1100

1600

2000

2500

Slide Stroke Length

S

mm

180

200

250

280

Rated Tonnage Point


mm

5

6

7

7

Slide Stroke Speed

Fixed


spm

50

45

35

30

Variable (optional)


spm

35-60

35-55

25-40

20-35

Max. Die Shut Height

H2

mm

400

450

500

550

Die Shut Height Adjustment

t

mm

90

100

110

120

Side Window Size

F-B

E

mm

650

800

900

950

Height

F

mm

350

400

450

460

Distance Between Uprights

G

mm

1750

1900

2290

2570

Table Size

F-B

D

mm

700

760

900

1000

L-R

C

mm

1650

1800

2200

2500

Thickness

H3

mm

140

150

170

180

Slide Bottom Size

F-B

b

mm

600

700

800

900

L-R

a

mm

1350

1500

1900

2200

Table Surface Height (with pads)

H1

mm

1035

1035

1135

1235

Overall Dimensions

F-B

A

mm

1900

2300

2550

2650

L-R

B

mm

2600

2700

3200

3600

Height

H

mm

3900

4000

4400

4800

Motor Power


KW

11

18.5

22

30

Air Pressure


Mpa

0.5

0.5

0.5

0.5

Weight (approximate)


kg

18000

21500

31500

39000

ITEM

CODE

UNIT

JW36-315

JW36-400

JW36-500

JW36-630

Nominal Capacity


KN

3150

4000

5000

6300

Slide Stroke Length

S

mm

280

300

300

300

Rated Tonnage Point


mm

7

8

8

8

Slide Stroke Speed

Fixed


spm

30

20

20

20

Variable (optional)


spm

20-35

15-25

15-25

15-25

Max. Die Shut Height

H2

mm

550

600

650

650

Die Shut Height Adjustment

t

mm

120

130

130

130

Side Window Size

F-B

E

mm

950

1000

1100

1200

Height

F

mm

460

550

600

650

Distance Between Uprights

G

mm

2570

2810

3200

3350

Table Size

F-B

D

mm

1000

1100

1200

1300

L-R

C

mm

2500

2700

3000

3100

Thickness

H3

mm

190

200

210

220

Slide Bottom Size

F-B

b

mm

900

1000

1100

1200

L-R

a

mm

2200

2400

2700

2800

Table Surface Height

H1

mm

1285

1340

1340

1580

Overall Dimensions

F-B

A

mm

2750

3250

3450

4000

L-R

B

mm

3600

3850

4350

4550

Height

H

mm

4900

5600

6100

5850

Motor Power


KW

37

45

55

75

Air Pressure


Mpa

0.5

0.5

0.5

0.5

Weight (approximate)


kg

41500

54000

75500

103000


Different types options are available for JW36 presses:

-Safety light barriers: front side protection/both front and rear sides protections

-Inverter for adjustable stroke speeds

-Bellow type die cushion under the bolster

-Slider knock-out bars

-Tonnage monitor: 2 channels/4 channels

-Compact coil straightener feeder with decoiler

-QDC system

-Transfer manipulators: 2 axis or 3 axis type
