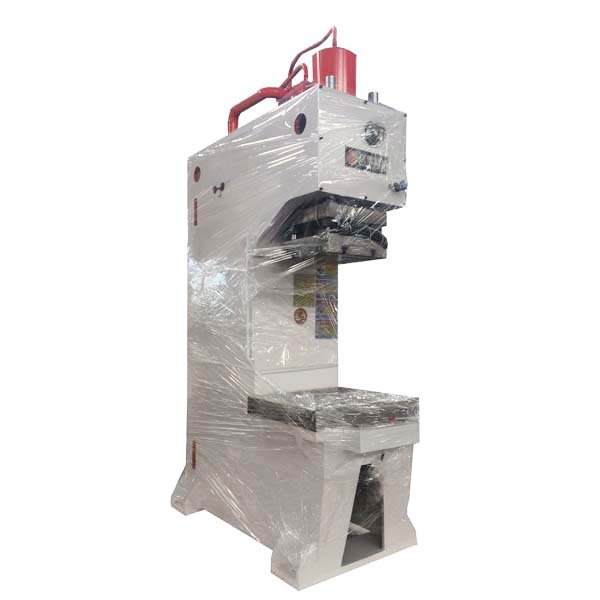

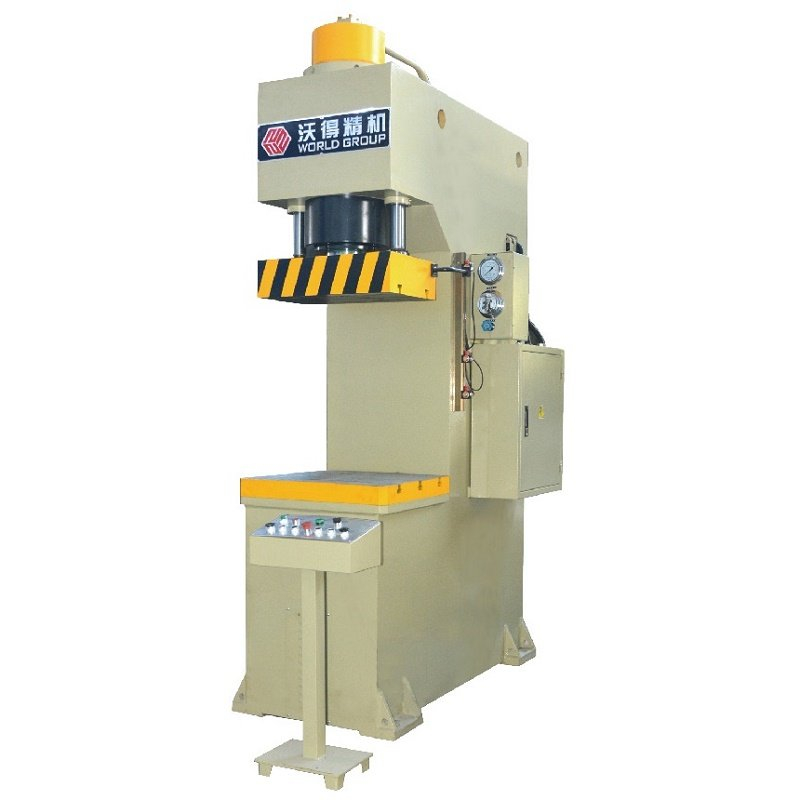

C Frame Hydraulic Press, steel welded structure, pillar type slide guide, work and control by a hydraulic system and electric system. The press is applicable for correction process and sheet metal drawing, bending and stamping process. It is also be used for pressing of common powder and plastic products.
Quantity: | |
---|---|
Model | Unit | Y41-25 | Y41-40 | Y41-63 | Y41-100 | Y41-160 | Y41-200 | |
Nominal Force | kN | 250 | 400 | 630 | 1000 | 1600 | 2000 | |
Working table height | mm | 710 | 710 | 810 | 800 | 830 | 900 | |
Max.hydraulic pressure | MPa | 16 | 25 | 25 | 25 | 25 | 25 | |
Throat depth | mm | 350 | 350 | 320 | 400 | 420 | 450 | |
Stroke of slide | mm | 400 | 400 | 500 | 600 | 700 | 700 | |
Daylight | mm | 630 | 630 | 750 | 800 | 900 | 1000 | |
Speed of slide | idle | mm/s | 80 | 80 | 120 | 100 | 80 | 80 |
pressing | mm/s | 18-20 | 18-20 | 18-20 | 15-20 | 10-15 | 10-15 | |
return | mm/s | 75 | 75 | 100 | 100 | 70 | 70 | |
Effective area of work table | L-R | mm | 580 | 700 | 710 | 800 | 900 | 900 |
F-B | mm | 570 | 570 | 600 | 700 | 800 | 800 | |
Motor Power | KW | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
