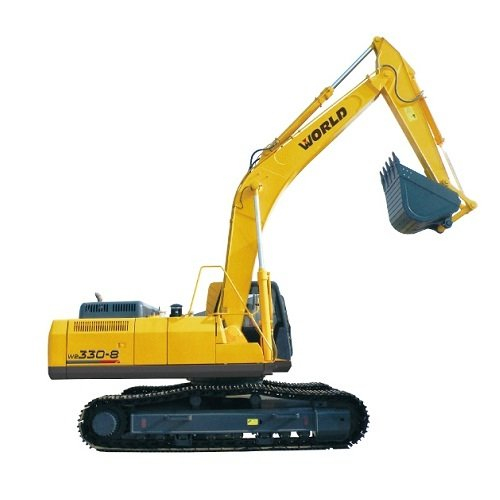

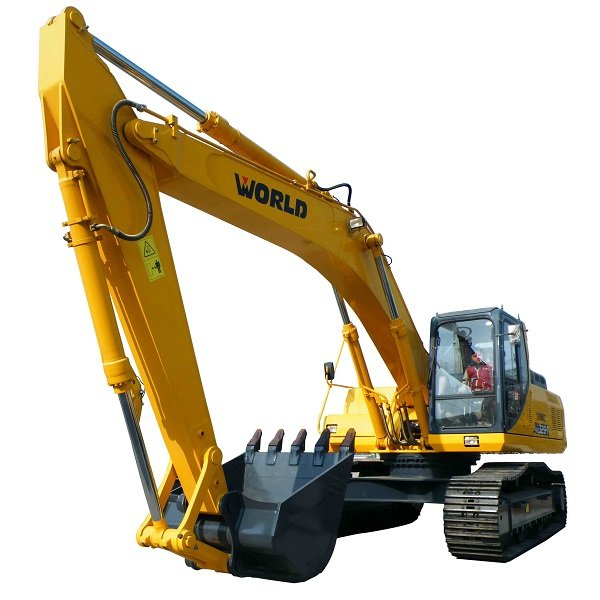

33 Ton Hydraulic Excavator

33 ton excavator adopts powerful original 190kw ISUZU engine and Kawasaki hydraulic system. Strong welded structure as the undercarriage, swing plate, boom, arm and bucket are all produced in our own factory. Comfortable air conditioned cabin, air seat with belt, LCD monitor with ECU control system, full hydraulic joystick operation system make it easy for operation. 1.5m3 bucket adopts special resistant material with casting steel teeth. This excavator is widely used for construction and mining.

Quantity:
  • W2330
  • WORLD
  • W2330

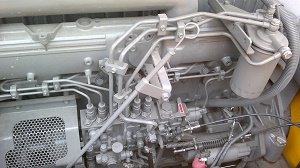

POWERFUL ORIGINAL ISUZU ENGINE

Model No.: AA-6HK1XQPpowerful isuzu engine.jpg

Rated power: 190.5kw/2000rpm

Displacement: 7.79L

Strong power output and digging force make excavators work more efficiently.

Automatic idle speed prevents unnecessary fuel consumption. Control equipment

hydraulic loss and engine fuel loss through central integrated control. Use high

efficient matching technology between engine and hydraulic system. Use a specially

designed for construction machinery high pressure fuel injection system to improve

engine durability. The cooling system features an air-to-air after cooler and A/C

condenser that tilt up and swing out of the way for easy servicing.

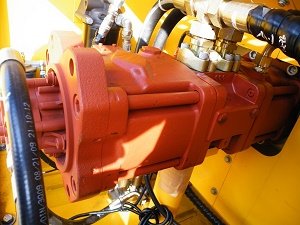

BEST HYDRAULIC SYSTEM

Kawasaki hydraulic pump and swing motor. Parker main valve and Doosan travel motor. Kawasaki pump for excavator.jpg

All are high pressure systems which ensure the machine high efficiency and strong power.

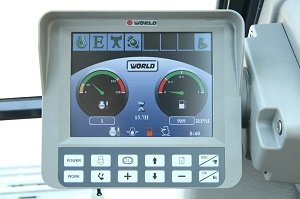

MONITOR SYSTEM

Color LCD display in English and Chinese. The controller monitoring the fuel level, excavator monitor.jpg

coolant temperature and battery charge, etc. Any abnormal situation will be show on

the screen and alarm. The controller will notify to replace the oil and filter when the

replace cycle has come. Four power modes are offered: P for heavy duty, E for economic

fuel consumption, L for light load, B for breaking job.

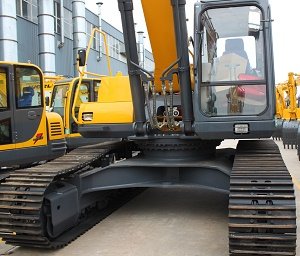

STRONG WELDED STRUCTURE

All structural parts are high quality welded with high tensile steel plates. excavator strong structure.jpg

The undercarriage is extended and reinforced to support various work

applications and to increase components durability. Each boom and stick

is built with internal baffle plates for added durability, and each undergoes

ultrasound inspection to ensure weld quality and reliability. Reach

configuration balances digging force and bucket capacity. It covers all

applications this size of machine was designed to take on such as digging, loading,

trenching, and working with hydraulic tools. Large box-section structures with thick,

multi-plate fabrications, castings, and forgings are used in high-stress areas such as

the boom nose, boom foot, boom cylinder, and stick foot to improve durability.

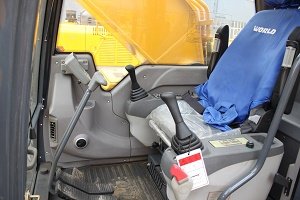

EASY AND COMFORTABLE OPERATION

The seat range includes air suspension and safety belt. All seats include a recliningexcavator luxury cabin.jpg

back, upper and lower seat slide adjustments and height and tilt angle adjustments t

o meet operator needs for comfort and productivity. The right and left joystick consoles

can be adjusted to meet individual preferences, improving operator comfort and

productivity during the course of a day.




Engine System
Brand & OriginIsuzu   (Japan)
ModelAA-6HK1XQP
Rated Power (kw/rpm)190.5/2000
Max. Torque (N.m)872.8/1700rpm
Idle Speed (rpm)1050
Engine Displacement (L)7.79
Cylinder No.-Bore x Stroke (mm)6-115x125
Engine Oil Capacity (L)28-36
Fuel Tank Capacity (L)520
Fuel Consumption Rate (g/kw.h)≦236.6
Hydraulic System
Main PumpBrandKawasaki
Rated Pressure (MPa)31.4/34.3
Multiple Unit ValveBrandParker
Rated Pressure (MPa)31.4/34.3
Hydraulic MotorTravel   Motor BrandDoosan
Traveling Speed (H/L km/h)4.6/2.9
Swing Motor BrandKawasaki
Swing Speed (r/min)10.5
Hydraulic CylinderBoom   Cylinder (mm)140x100
Arm Cylinder (mm)160x110
Bucket Cylinder (mm)140x100
Hydraulic Oil Tank Capacity (L)270
Working Specifications
Weight (kg)33000
Bucket Capacity (m3)1.4
Bucket Width (mm)1282
Bucket Digging Force (kN)171
Arm Digging Force (kN)137
Ground Pressure (KPa)60
Grade ability 35°
Overall Dimensions (mm)L:11050xW:3190xH:3260
