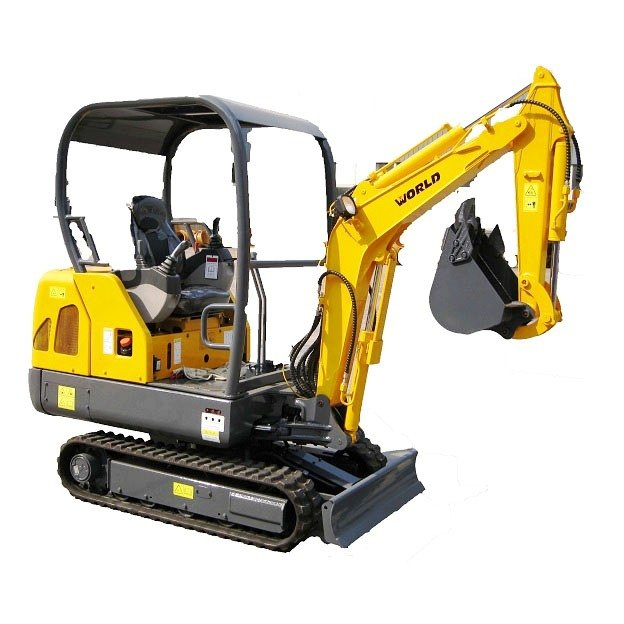

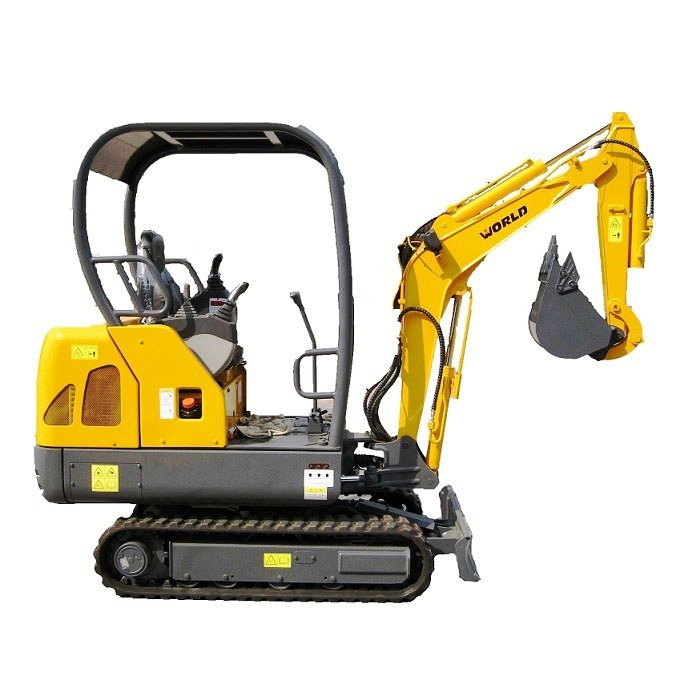

1.8 Ton Mini Excavator

1.8 ton mini excavator adopts Perkins engine and Nachi hydraulic system. The excavator equips with a canopy, rubber track, front dozer and swing boom. This mini excavator is applicable for garden construction, farming and urban construction. Hydraulic breaker and quick change hitch is optional. Customized buckets as small digging bucket and big mud bucket are optional.

Quantity:
  • W218
  • WORLD
  • W218

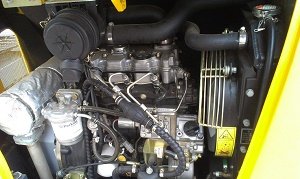

PERKINS ENGINE

Model No.: 403D-11mini excavator perkins engin.jpg

Rated power: 14.7kw/2200rpm

Displacement: 1.131L

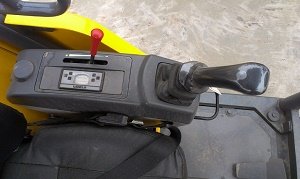

JOYSTIC CONTROL

100% pilot control delivers excellent machine control and lifetime.mini excavator joystick.jpg

It eliminates the need for linkage and cable maintenance, lowers

owning and operating costs and results in less downtime.

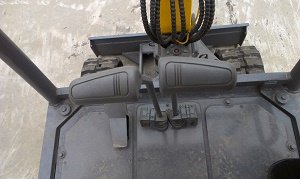

BIG SPACE FOR OPERATION

The W218 mini excavator gives the operator a large comfortable space space for operation.jpg

in which to work. The ergonomic control layout, travel pedals are engineered

to minimize operator fatigue and increase productivity. The layout is designed f

or easy cleaning; minimizing downtime between jobs. The canopy offers two

sided access for even greater on site versatility.






RUBBER TRACK AND FRONT DOZER

The W218 excavator uses rubber tack and it is equipped with a dozer.rubber track and dozer.jpg

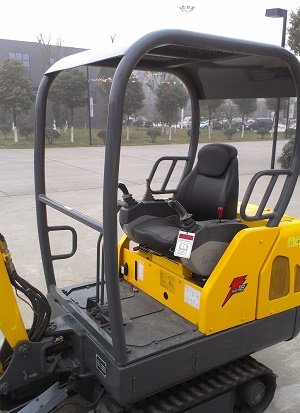

STANDARD CANOPY AND SWING BOOM

High quality and nice finished boom, stick and bucket. The swing boom is canopy and swing boom.jpg

standard which provides better versatility.




Engine   System
Brand &   OriginPerkins   (England)
Model403D-11
Rated Power14.7/2200kw/rpm
Max. Torque66.8/1900Nm/rpm
Idling Speed1000rpm
Engine   Displacement1.131L
Cylinder No.-   bore/Stroke3-77mmx81mm
Engine Oil   Capacity3.4~4.4L
Fuel Tank   Capacity27L
Fuel   Consumption Rate260g/kw.h   or less
Working   Specifications
Weight1840kg
Bucket   Capacity0.05m3
Bucket Width426   mm
Bucket Digging Force14kN
Arm Digging   Force9kN
Ground   Pressure28KPa
Grade Ability58%
Max. Digging   Depth2116mm
Max. Digging   Height3406mm
Max. Digging   Radius3705mm
Max.   Discharging Height2265mm
Min. Ground   Clearance153mm
Min. Swing   Radius1618mm/1225mm
DimensionsLxWxH3825mmx1100mmx2240mm
