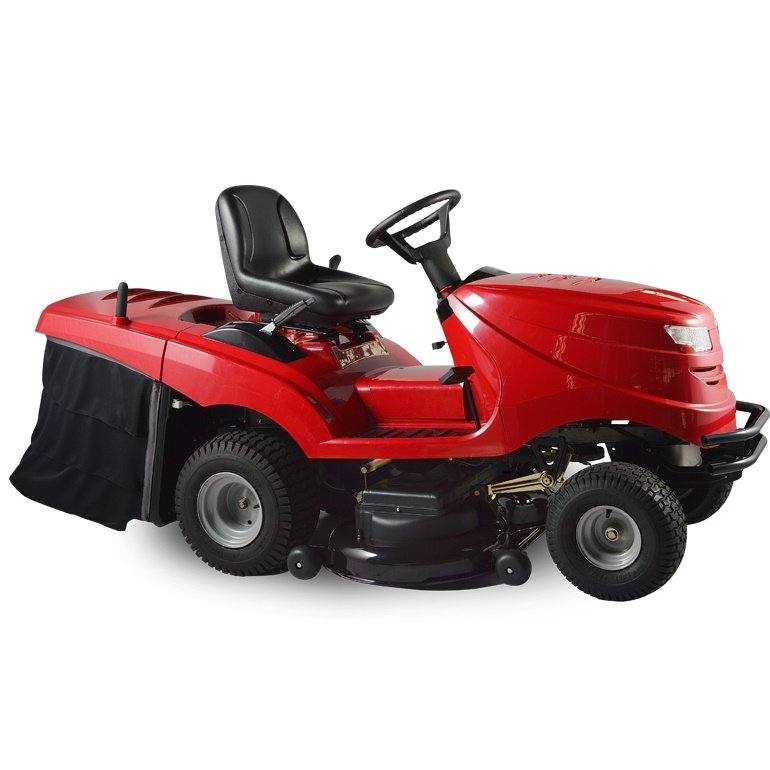

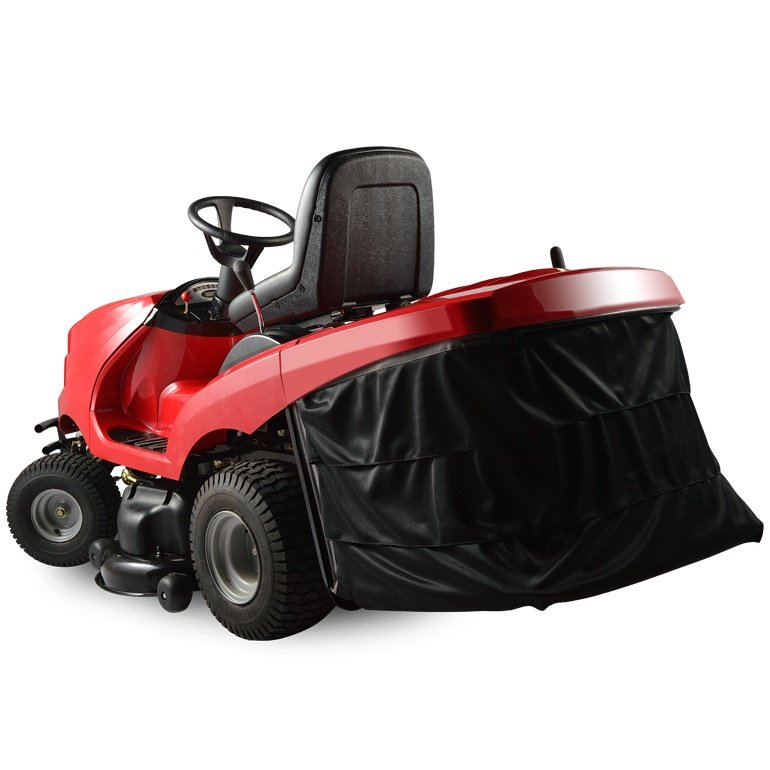

Ride on Tractor Lawn Mower

Ride-on lawn mower is suitable for commercial grass cutting. Powered by original B&S engine, stepless hydrostatic speed control, with E-blade clutch system. Head lights can be automatically switch on/off depends on the working condition. Unique design of chassis creates smooth air flow, with skilled cutting system, ensures excellent performance and high productivity. Battery status, fuel level, grass catcher alarm and working hours are all displayed on the console screen.

Quantity:
  • T1740
  • WORLD
  • T1740
ModelT1540BS-HT1740BS-H
ENGINEB&SB&S
Model36A60731C707
Horsepower15.5HP17.5HP
Cylinders11
Displacement500cc 500cc
Oil Capacity48fl.oz48fl.oz
IgnitionElectronicElectronic
Fuel Tank Capacity4L4L
TRANSMISSION

TypeHydro-Gear Hydro-Gear
Final DriveHydro-GearHydro-Gear
Forward Speed0-10kph0-10kph
Reverse Speed0-5kph0-5kph
OTHER FEATURES

Deck Cut Width40"   (1016mm)40"   (1016mm)
Number Of Blades20.7"(   526 mm ) x 2 ( 5 mm )20.7"(   526 mm ) x 2 ( 5 mm )
Mower Cutting Height Range1.2"   to 3.5"  (30 -90 mm)1.2"   to 3.5"  (30 -90 mm)
Overall Weight529   Ibs (240 Kg)529   Ibs (240 Kg)
Mower ClutchElectricElectric
Tires-Front15×6-6   Turf15×6-6   Turf
Tires-Rear18×8.5-8   Turf18×8.5-8   Turf
Wheeltrack-Front35.4"   (900 mm)35.4"   (900 mm)
Wheeltrack-Rear36.6"   (930 mm)36.6"   (930 mm)
Wheelbase45.3"   (1150 mm)45.3"   (1150 mm)
Overall Height42.5"   ( 1080 mm)42.5"   ( 1080 mm)
Overall Length93   " ( 2360mm)93   " ( 2360mm)
Overall Weight529ibs240(Kg)529ibs240(Kg)
Grass Catcher7 bushels(300L)7 bushels(300L)
Packaging Size1980mm×1100mm×870mm1980mm×1100mm×870mm
Container   Qty.36sets(40HQ)36sets(40HQ)
