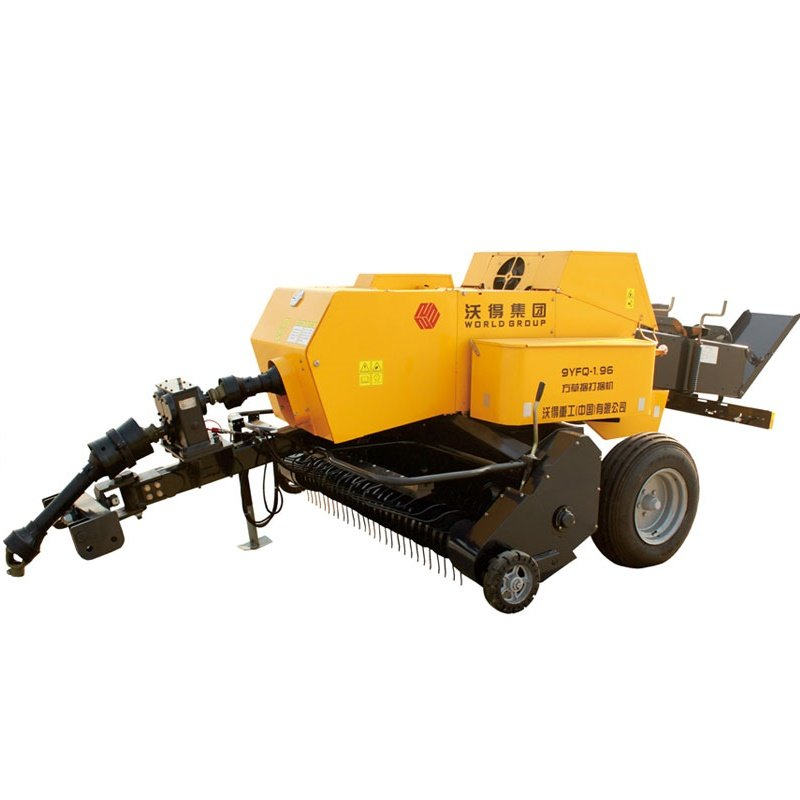

Rectangular Hay Baler

9YFQ-1.96 rectangular type hay baler adopts imported knotters and strong pickup tines, better performance and more reliable. Chain drive type transmission, crankshaft fork type feeding system. Bale length 400-1320mm and pickup width 1960mm. Press chamber size 460x360mm. Input PTO speed 540 rpm. This square type baler can match 60-90hp tractors.

Quantity:
  • 9YFQ-1.96
  • WORLD
  • 9YFQ-1.96

ITEM

UNIT

DATA

Model

/

9YFQ-1.96

Picking up width

mm

1960

Picker return dia.

mm

345

Picker cylinder  speed

r/min

73

Picker finger  number

pcs

56

Feeding type

/

crankshaft fork

Press type

/

crankshaft, connecting rod and piston type

Pressing frequency

times/min

100

Piston stroke

mm

550

Press chamber size

mm

360×450

Bale length

mm

400-1320

Match   tractor power

hp

60-90

PTO

r/min

540

Machine   weight

kg

1500

Knot tying type

/

single type

Wheelbase

mm

2450
