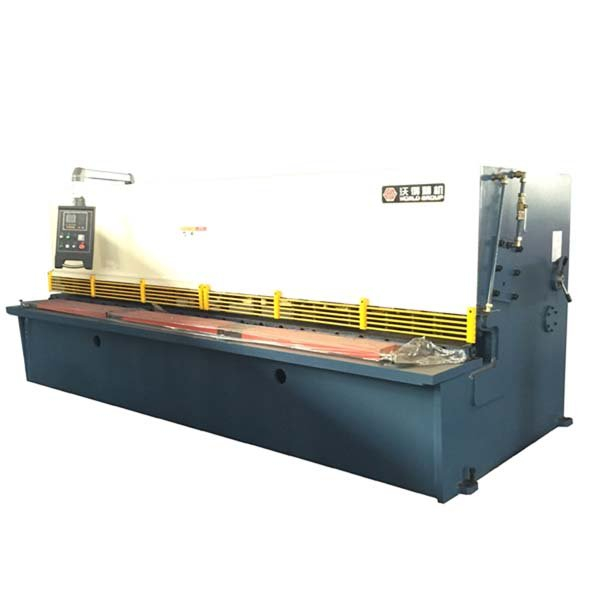

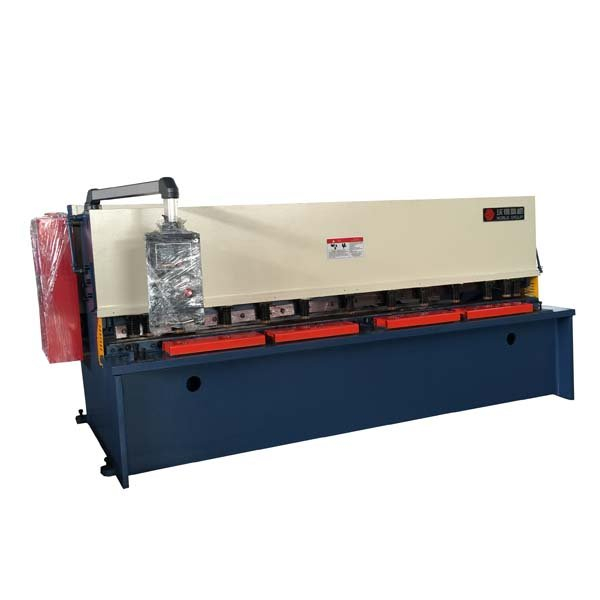

QC12Y Hydraulic Shearing Machine

QC12Y swing beam type hydraulic shearing machine is suitable for sheet metal thickness from 4mm to 20mm cutting process. Power is from the two hydraulic cylinders with hydraulic pump. Siemens motor, Rexroth valve are standard equipped.
Availability:
Quantity:
Inquire Add to Basket

  • QC12Y

  • WORLD

  • QC12Y

ItemsunitQC12Y-4x2500QC12Y-4x3200QC12Y-4x4000QC12Y-6x2500QC12Y-6x3200QC12Y-6x4000
Max. cutting thicknessmm444666
Max. cutting widthmm250032004000250032004000
Tensile strength of plate to be cutN/mm2450450450450450450
Cutting angledeg1.51.51.51.51.51.5
Travel distance of back gaugemm20-60020-60020-60020-60020-60020-600
Throat depthmm150150150150150150
Stroke speedsspm161410151212
Main motorkW45.55.57.57.57.5
Voltage
380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH
Overall dimension (LxWxH)mm304038404800304038404800
150015001500165016501650
150016001700170017001700
ItemsunitQC12Y-8x2500QC12Y-8x3200QC12Y-8x4000QC12Y-10x2500QC12Y-10x3200QC12Y-10x4000
Max. cutting thicknessmm888101010
Max. cutting widthmm250032004000250032004000
Tensile strength of plate to be cutN/mm2450450450450450450
Cutting angledeg1.51.51.51.51.51.5
Travel distance of back gaugemm20-60020-60020-60020-60020-60020-600
Throat depthmm150150150150150150
Stroke speedsspm141210121010
Main motorkW7.57.511111515
Voltage
380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH
Overall dimension (LxWxH)mm304038604800304038604800
170017001700170017002100
170017001700170017002000
ItemsunitQC12Y-12x2500QC12Y-12x3200QC12Y-12x4000QC12Y-16x2500QC12Y-16x3200QC12Y-16x4000
Max. cutting thicknessmm121212161616
Max. cutting widthmm250032004000250032004000
Tensile strength of plate to be cutN/mm2450450450450450450
Cutting angledeg222222
Travel distance of back gaugemm20-80020-80020-80020-80020-80020-800
Throat depthmm150150150150150150
Stroke speedsspm121010101010
Main motorkW151518.51518.522
Voltage
380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH380V/50HZ/3PH
Overall dimension (LxWxH)mm314040004800314038804800
180018002000215021502150
170017002000200020002200
