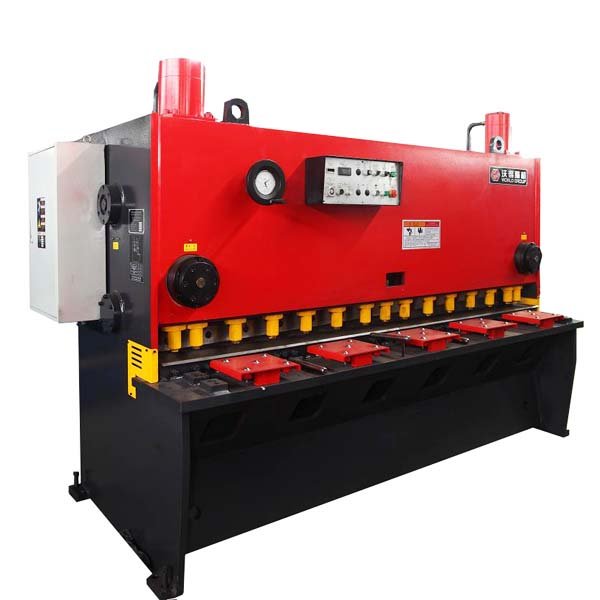

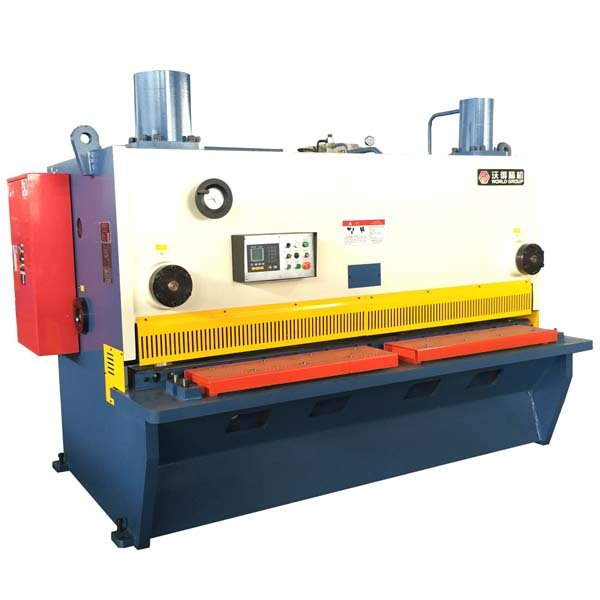

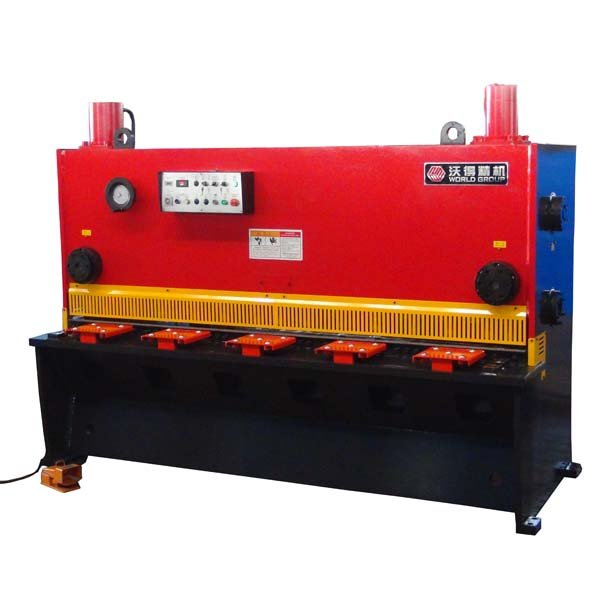

QC11Y hydraulic guillotine machine is a type of sheet metal cutting machine, which is suitable for sheet plate cutting process. Siemens motor, Sunny pump, Rexroth valve and Estun E21s NC system are all standard equipped. Strong steel welded structure, high quality hydraulic cylinders and best blades ensure the high performance of this hydraulic shearing machine.
| Quantity: | |
|---|---|
| Items | unit | QC11Y-6x2500 | QC11Y-6x3200 | QC11Y-6x4000 | QC11Y-8x2500 | QC11Y-8x3200 | QC11Y-8x4000 |
| Max. cutting thickness | mm | 6 | 6 | 6 | 8 | 8 | 8 |
| Max. cutting width | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 | 450 | 450 | 450 |
| Cutting angle | deg | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-2 | 0.5-2 | 0.5-2 |
| Travel distance of back gauge | mm | 20-550 | 20-550 | 20-600 | 20-600 | 20-600 | 20-600 |
| Throat depth | mm | 150 | 150 | 150 | 150 | 150 | 150 |
| Stroke speeds | spm | 16-26 | 12-22 | 10-20 | 14-25 | 12-20 | 10-20 |
| Main motor | kW | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | |
| Overall dimension (LxWxH) | mm | 3000 | 3700 | 4800 | 3040 | 3860 | 4800 |
| 1500 | 1650 | 1650 | 1700 | 1700 | 1800 | ||
| 2000 | 2050 | 2250 | 2150 | 2350 | 2480 | ||
| Items | unit | QC11Y-10x2500 | QC11Y-10x3200 | QC11Y-10x4000 | QC11Y-12x2500 | QC11Y-12x3200 | QC11Y-12x4000 |
| Max. cutting thickness | mm | 10 | 10 | 10 | 12 | 12 | 12 |
| Max. cutting width | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 | 450 | 450 | 450 |
| Cutting angle | deg | 0.5-1.5 | 0.5-1.5 | 0.5-1.5 | 0.5-2 | 0.5-2 | 0.5-2 |
| Travel distance of back gauge | mm | 20-600 | 20-600 | 20-600 | 20-800 | 20-800 | 20-800 |
| Throat depth | mm | 150 | 150 | 150 | 150 | 150 | 150 |
| Stroke speeds | spm | 12-20 | 10-20 | 10-18 | 12-16 | 10-16 | 10-15 |
| Main motor | kW | 11 | 15 | 15 | 15 | 15 | 18.5 |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | |
| Overall dimension (LxWxH) | mm | 3040 | 3860 | 4800 | 3140 | 3800 | 4800 |
| 1700 | 1700 | 1800 | 1800 | 1850 | 2000 | ||
| 2150 | 2350 | 2480 | 2250 | 2270 | 2650 | ||
| Items | unit | QC11Y-16x2500 | QC11Y-16x3200 | QC11Y-16x4000 | QC11Y-20x2500 | QC11Y-20x3200 | QC11Y-20x4000 |
| Max. cutting thickness | mm | 16 | 16 | 16 | 20 | 20 | 20 |
| Max. cutting width | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 | 450 | 450 | 450 |
| Cutting angle | deg | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
| Travel distance of back gauge | mm | 20-800 | 20-800 | 20-800 | 20-800 | 20-800 | 20-800 |
| Throat depth | mm | 150 | 150 | 150 | 150 | 150 | 150 |
| Stroke speeds | spm | 10-16 | 10-16 | 10-15 | 10-15 | 10-15 | 8-12 |
| Main motor | kW | 22 | 30 | 30 | 30 | 30 | 30 |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | |
| Overall dimension (LxWxH) | mm | 3140 | 3880 | 4800 | 3140 | 3880 | 4800 |
| 2000 | 2150 | 2150 | 2250 | 2250 | 2250 | ||
| 2520 | 2650 | 2650 | 2520 | 2700 | 2880 |
