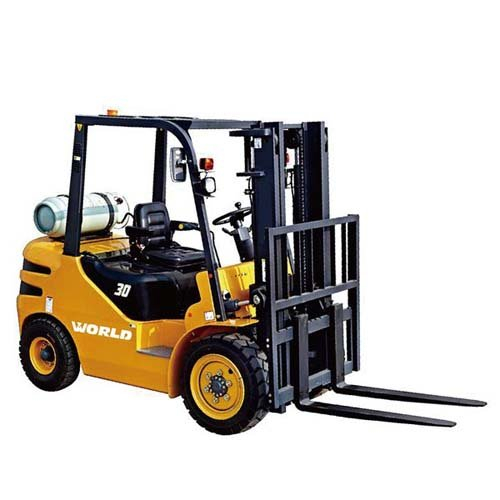

CPYD
WORLD
CPYD
| General | Model | CPYD20Z | CPYD25Z | CPYD30Z | CPYD35Z | ||
| Power type | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | |||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||
| Load center | mm | 500 | 500 | 500 | 500 | ||
| Dimension | Lift height | mm | 3000 | 3000 | 3000 | 3000 | |
| Free lift height | mm | 110 | 110 | 110 | 110 | ||
| Fork size (LxWxT) | mm | 1070x120x40 | 1070x120x40 | 1070x125x45 | 1070x125x45 | ||
| Fork outside spread (Min./Max.) | mm | 245/1030 | 245/1030 | 255/1100 | 255/1100 | ||
| Mast tilt range (F/R) | deg | 6/12 | 6/12 | 6/12 | 6/12 | ||
| Front overhang | mm | 480 | 480 | 500 | 500 | ||
| Overall dimensions | Length without fork | mm | 2500 | 2570 | 2680 | 2730 | |
| Length with fork | mm | 3610 | 3680 | 3795 | 3845 | ||
| Overall width | mm | 1150 | 1160 | 1210 | 1210 | ||
| Mast lowered height | mm | 2050 | 2050 | 2080 | 2080 | ||
| Mast extended height | mm | 4000 | 4000 | 4110 | 4110 | ||
| Overhead guard height | mm | 2150 | 2150 | 2150 | 2150 | ||
| Turning radius | mm | 2320 | 2380 | 2460 | 2510 | ||
| Performance | Travel speed (No load/Full load) | km/h | 20/18.5 | 20/18.5 | 20/18.5 | 20/18.5 | |
| Lift speed (No load/Full load) | mm/s | 510/450 | 510/450 | 510/450 | 510/450 | ||
| Max. gradeability | % | 20 | 20 | 20 | 20 | ||
| Tires | Tires | Front | mm | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-12PR |
| Rear | mm | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Tread | Front | mm | 970 | 970 | 1000 | 1000 | |
| Rear | mm | 980 | 980 | 980 | 980 | ||
| Wheelbase | mm | 1650 | 1650 | 1700 | 1700 | ||
| Min. ground clearance (no ldad/full load) | Mast | mm | 160/140 | 160/140 | 160/140 | 160/140 | |
| Frame | mm | 150/130 | 150/130 | 145/125 | 145/125 | ||
| Drive | Battery | V/Ah | 12/90 | 12/90 | 12/90 | 12/90 | |
| Engine | Model | K21 | K21 | K25 | K25 | ||
| Rated output | kw/rpm | 31.2/2250 | 31.2/2250 | 37.4/2300 | 37.4/2300 | ||
| Rated torque | N.m/rpm | 143.7/1800 | 143.7/1800 | 171.2/1600 | 171.2/1600 | ||
| Displacement | cc | 2065 | 2065 | 2488 | 2488 | ||
| No. of Cylinder | 4 | 4 | 4 | 4 | |||
| Bore x stroke | mm | 89x83 | 89x83 | 89x100 | 89x100 | ||
| Transmission | Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | ||
| Shift (F/R) | 1/1 | 1/1 | 1/1 | 1/1 | |||
| Operating pressure | Mpa | 17.5 | 17.5 | 17.5 | 17.5 | ||
