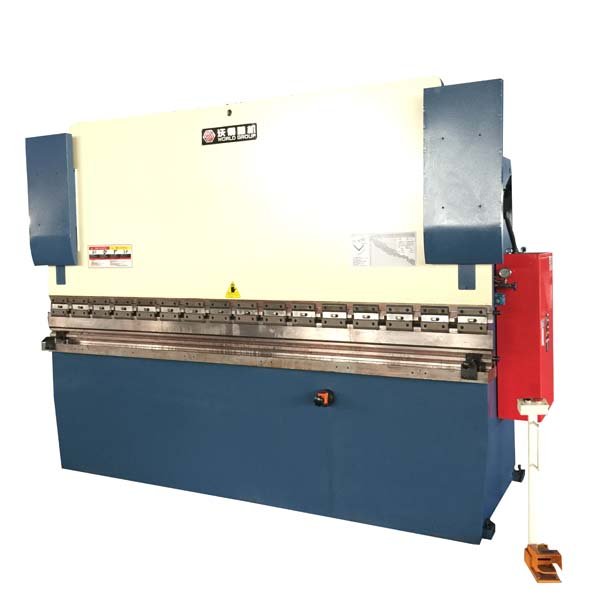

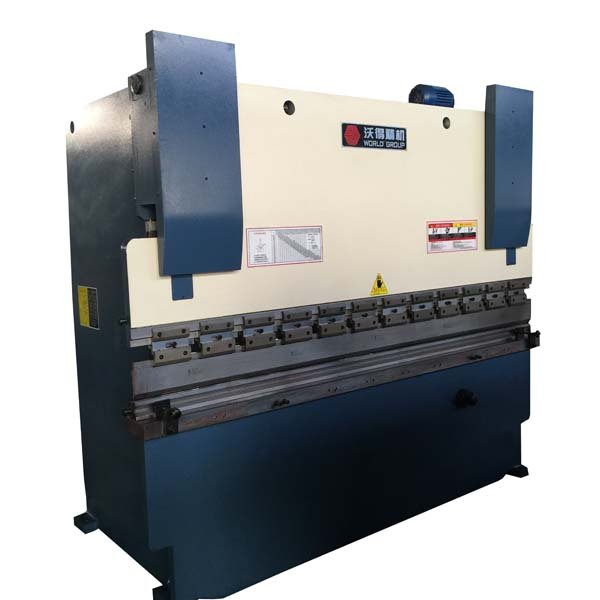

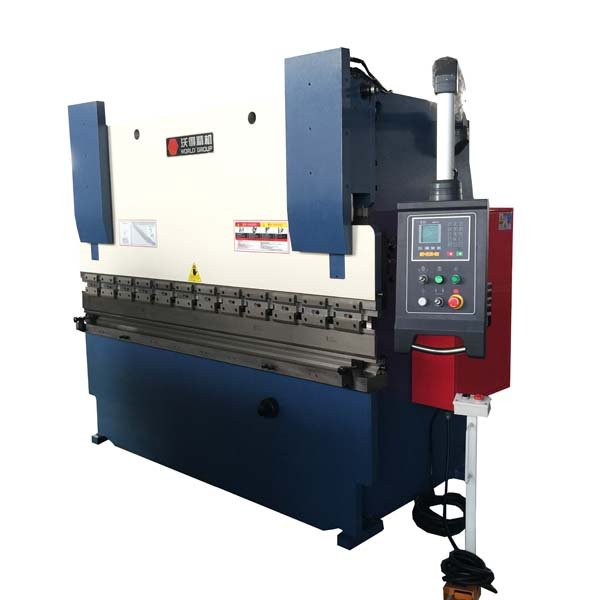

WC67Y Hydraulic Press Brake

WC67Y hydraulic press brake is a type of sheet metal bending machine, which is suitable for sheet metal plate bending process. The press brake capacity ranges from 40 ton to 400 ton and the table length from 2 meters to 6 meters. The press brake is standard equipped with Siemens motor, Sunny pump, Rexroth valve, Estun E21 NC system and standard punch and die. Customized punch and die are optional. Delem DA41 CNC system with servo motor is available too.

Availability:

Quantity:


Inquire Add to Basket

Model:
WC67Y
Brand:
WORLD
Code:
WC67Y

SPECIFICATIONS

Items	unit	WC67Y-40/2500	WC67Y-63/2500	WC67Y-63/3200	WC67Y-80/2500	WC67Y-80/3200	WC67Y-80/4000
Nominal pressure	kN	400	630	630	800	800	800
Length of table	mm	2500	2500	3200	2500	3200	4000
Distance between uprights	mm	1900	2000	2300	1900	2300	1900
Throat depth	mm	200	250	250	320	320	320
Ram stroke	mm	110	120	120	120	120	120
Daylight	mm	370	380	380	380	380	380
Approach speed	mm/s	120	110	100	120	110	100
Bend speed	mm/s	10	10	9	10	10	9
Return speed	mm/s	100	90	90	100	100	90
Main motor	kW	5.5	5.5	5.5	7.5	7.5	7.5
Length	mm	2600	2600	3400	2600	3400	4100
Width	mm	1350	1380	1400	1400	1400	1400
Height	mm	2100	2300	2400	2300	2300	2300
Items	unit	WC67Y-100/2500	WC67Y-100/3200	WC67Y-100/4000	WC67Y-125/2500	WC67Y-125/3200	WC67Y-125/4000
Nominal pressure	kN	1000	1000	1000	1250	1250	1250
Length of table	mm	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	1900	2400	3000	1900	2600	3000
Throat depth	mm	300	320	320	320	320	320
Ram stroke	mm	160	150	120	120	120	120
Daylight	mm	380	380	380	380	380	380
Approach speed	mm/s	120	110	100	120	110	100
Bend speed	mm/s	10	10	9	10	10	9
Return speed	mm/s	100	100	90	100	90	90
Main motor	kW	7.5	7.5	7.5	7.5	7.5	7.5
Length	mm	2600	3300	4000	2700	3400	4100
Width	mm	1600	1800	1800	1500	1500	1600
Height	mm	2500	2500	2300	2500	2500	2500
Items	unit	WC67Y-160/2500	WC67Y-160/3200	WC67Y-160/4000	WC67Y-200/3200	WC67Y-200/4000	WC67Y-200/3200
Nominal pressure	kN	1600	1600	1600	2000	200	2000
Length of table	mm	2500	3200	4000	3200	4000	3200
Distance between uprights	mm	2050	2400	3000	2400	3000	2400
Throat depth	mm	320	320	320	320	320	320
Ram stroke	mm	200	160	160	200	200	200
Daylight	mm	450	450	450	450	450	450
Approach speed	mm/s	100	100	100	90	90	90
Bend speed	mm/s	10	10	10	9	9	9
Return speed	mm/s	90	90	90	90	90	90
Main motor	kW	11	11	11	15	15	15
Length	mm	2700	3300	4100	3400	4100	3400
Width	mm	1700	1700	1700	1900	1900	1900
Height	mm	2600	2700	2700	2700	2700	2700
Items	unit	WC67Y-200/3200	WC67Y-200/4000	WC67Y-250/3200	WC67Y-250/4000	WC67Y-300/3200	WC67Y-300/4000
Nominal pressure	kN	2000	200	2500	2500	3000	3000
Length of table	mm	3200	4000	3200	4000	3200	4000
Distance between uprights	mm	2400	3000	2400	3000	2600	3200
Throat depth	mm	320	320	400	400	400	400
Ram stroke	mm	200	200	250	250	250	250
Daylight	mm	450	450	450	450	500	500
Approach speed	mm/s	90	90	90	90	90	90
Bend speed	mm/s	9	9	8	8	8	8
Return speed	mm/s	90	90	90	90	80	80
Main motor	kW	15	15	18.5	18.5	18.5	18.5
Length	mm	3400	4100	3800	4200	3400	4200
Width	mm	1900	1900	1950	2000	2200	2200
Height	mm	2700	2700	2900	3200	3200	3200
