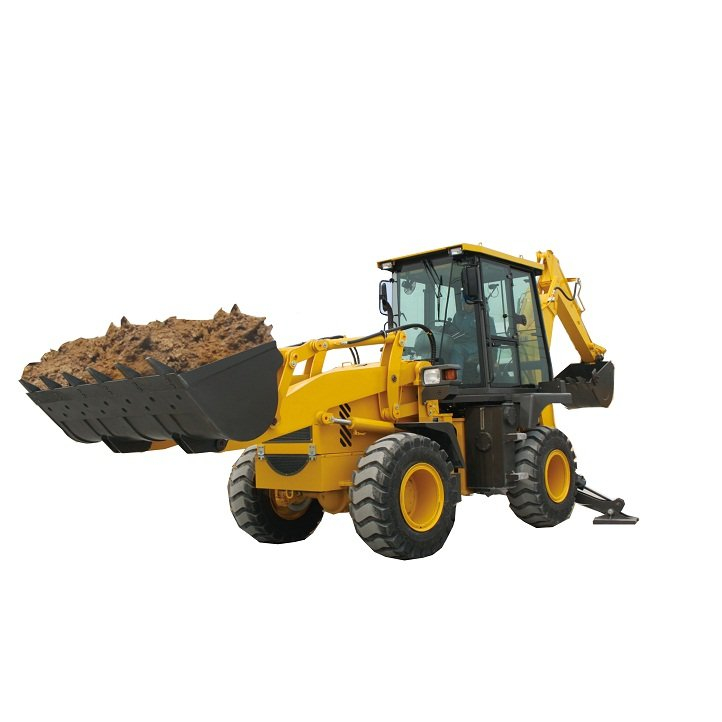

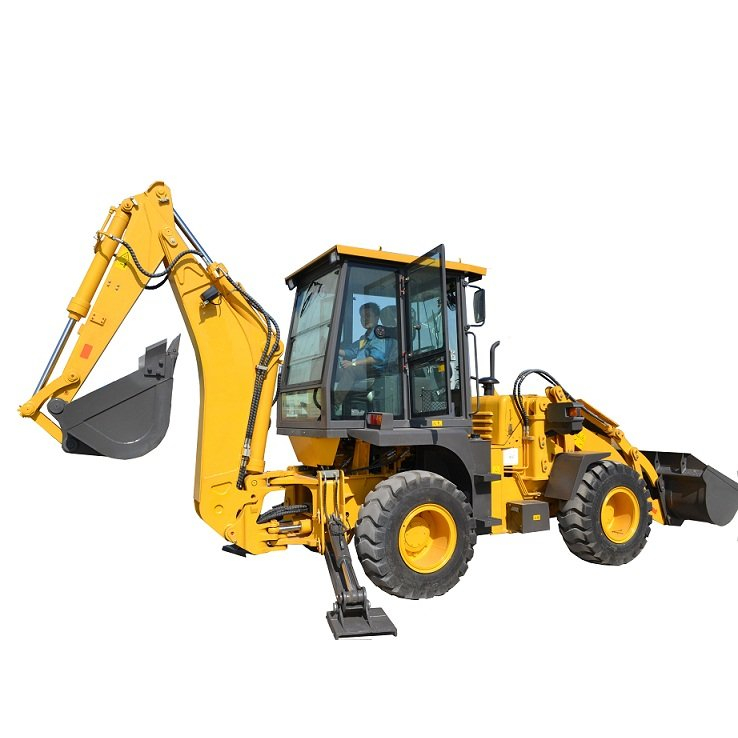

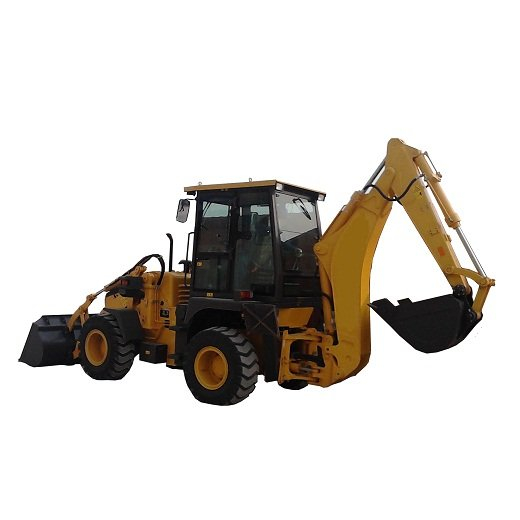

Articulated Backhoe Loader

WZ30-25 articulated type backhoe loader, the front frame and rear frame are center articulated for easier turning. Cummins engine and Chinese Yuchai engine are optional. The transmission system is similar to wheel loader. The backhoe is controlled by hydraulic pump like excavator. X type outriggers are standard equipped and H type outriggers are optional.

Quantity:
  • WZ30-25
  • WORLD
  • WZ30-25

Main Performance

Operation Weight

7600 KG

Shipment Dimensions

5910×2268×3760 mm

Min. Ground Clearance

300 mm

Loading Bucket

Bucket Capacity

1 m3

Breakout Force

38 KN

Loading Lifting Capacity

2500 KG

Bucket Dumping Height

2795 mm

Bucket Dumping Distance

1062 mm

Bucket Digging Depth

52 mm

Bucket lifting Time

5.4 s

Bucket Dumping Time

2.0 s

Bucket Lowing Time

3.1 s

Backhoe

Bucket Size

0.3 m3

Max. Digging Depth

4080 mm

Swing Angle

190 degree

Max. Tracking Force

39 KN

Max. Bucket Digging Force

46.5 KN

Max. Arm Digging Force

31 KN

Engine System

Engine Model

Cummins 4BTA3.9 or Yituo YT4B2-G60Q

Engine Power

74 kw/2400rpm or 65 kw/2400rpm

Engine Type

In line direct injection, four-stroke and Injection   combustion chamber

Max. Torque

285 N.M or 261 N.M

Displacement

3.3 L or 4.4 L

Min. Fuel Consumption

239 g/km.h or 216 g/km.h

Transmission System

Gearbox Type

Fixed shaft power transmission

Oil Pressure of Clutch

1373 Kpa-1569 Kpa

Shift Gears

2F/2R

Max. Travelling Speed

22 km/h

Torque Coverter Model

YJ280

Converter Type

Single-stage, three elements

Max. Efficiency

84.40%

Inlet Pressure

0.4 Mpa—0.55 Mpa

Outlet Pressure

1.2 Mpa—1.5 Mpa

Cooling Methord

Oil-cooling, pressure circulation

Steering System

Model of Steering Gear

BZZ5-250

Steering Angle

36 degree

Min. Turning Radius

5018 mm

Hydraulic Pressure

12 Mpa

Axle and Tyre

Main Reducer Type

Double reduction

Hub Reducer Type

Single stage final reducer

Axle Rated Load

4/18.5 Ton

Front Tyre Size

16/70-20

Rear Tyre Size

16/70-20

Tyre Pressure(F/R)

0.22 Mpa

Brake System

Service Brake

Air over oil caliper brake, external type

Parking Brake

Manual
